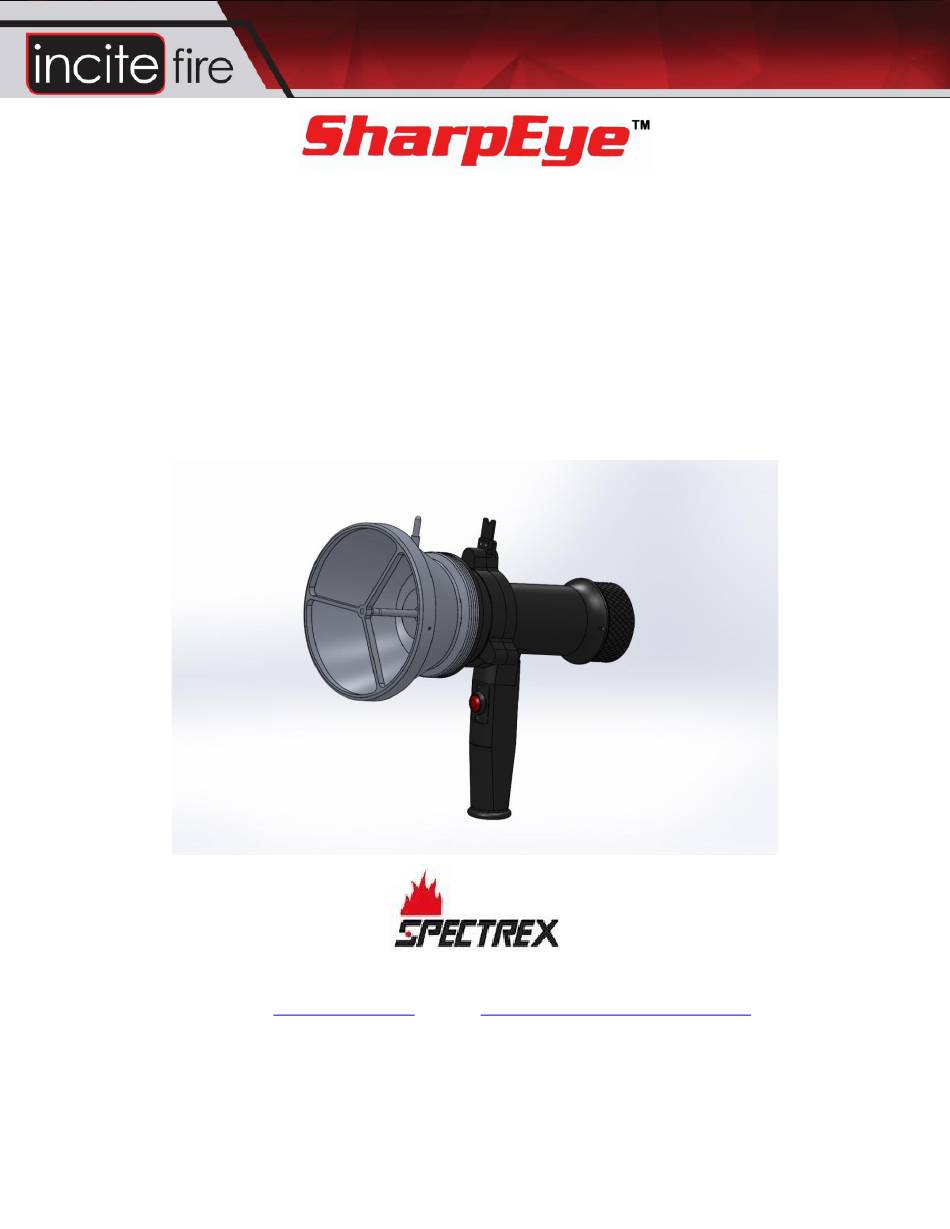

- Page 1 Model FS-1200 UV/IR Flame Simulator User Guide 6021 Innovation Blvd, Shakopee, MN 55379 , USA Phone: +1 (973) 239 8398 Website: www.spectrex.net Email: spectrex.csc.rmtna@emerson.com...
- Page 2 SPECTREX expressly excludes damage incurred in transit from the factory or other damage due to abuse, misuse, improper installation, or lack of maintenance or “Act of God” which are above and beyond its control. SPECTREX will, upon receipt of any defective product, transportation prepaid, repair or replace it at its sole discretion if found to have been defective when shipped.
-
Page 3: Table Of Contents
Table of Contents Table of Contents .................... v List of Figures ....................vii List of Tables ....................vii About this Guide ..................9 Release History ..................9 Glossary and Abbreviations ..............10 Product Overview ..................13 Flame Simulator Compatibility with Flame Detector Models ......13 Features and Benefits ................ - Page 4 3.9.4 EMI Compatibility ................27 Technical Support ..................32 SharpEye™ UV/IR Flame Simulator User Guide...
- Page 5 List of Figures Figure 1: Flame Simulator Side View ..............16 Figure 2: Flame Simulator Rear View ..............17 Figure 3: Flame Simulator Front View ..............17 Figure 4: Flame Simulator Battery Replacement ............ 25 List of Tables Table 1: Detection Ranges per Detector/Flame Simulator ........23 TM380102 Rev.
-
Page 7: About This Guide
About this Guide About this Guide This guide describes the SharpEye Flame Simulator and its features, and provides instructions on how to operate and maintain the simulator. Release History Prepared by Approved Date Revision History December 2015 First Release Ian Buchanan Eric Zinn December 2015 Second Release... -
Page 8: Glossary And Abbreviations
About this Guide Glossary and Abbreviations Abbreviation/Term Meaning Analog Video Video values are represented by a scaled signal ATEX Atmosphere Explosives American Wire Gauge Built-In-Test Complementary Metal-Oxide Semiconductor image CMOS sensor Each component is represented by a number Digital Video representing a discrete quantization Digital Signal Processing Electromagnetic Compatibility... - Page 9 About this Guide Abbreviation/Term Meaning Unified Coarse Thread Volts Alternating Current TM380102 Rev. (Ad), September 2020...
-
Page 11: Product Overview
SharpEye Flame Detector models. This allows for testing under real fire conditions without the associated risks of an open flame. SPECTREX flame simulators are ATEX certified EExd for use in hazardous zones 1 and 2, and are powered by rechargeable lithium-ion batteries. -
Page 12: Features And Benefits
Product Overview Features and Benefits • Used for maintenance and testing of flame detectors • Ability to activate the flame detector from a distance of up to 10m • Rechargeable battery included • Operates at least 100 tests before battery recharge is necessary Principles of Operation The FS-1200 includes a halogen lamp that emits UV and IR energy. - Page 13 Product Overview TM380102 Rev. (Ad), September 2020...
-
Page 14: Simulator Structure

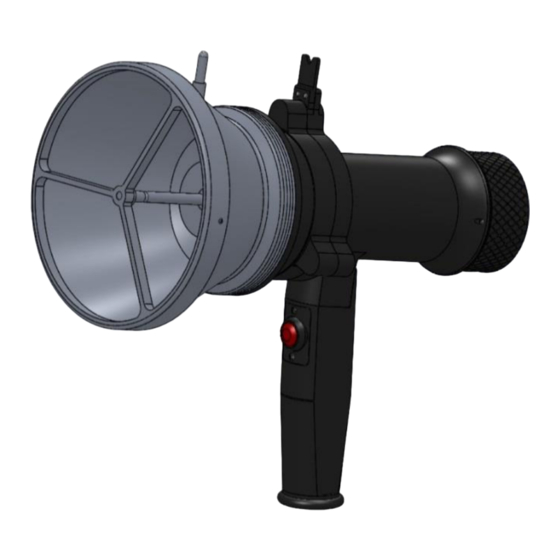

Product Overview Simulator Structure The flame simulator has a black-coated aluminum ex-proof enclosure. It includes the following components: • Reflector • Electronic compartment • Battery compartment • Handgrip The electronic compartment includes the internal optical and electronic parts of the device. The battery compartment includes a battery pack containing 4 lithium-ion batteries, measuring a total of 14.8VDC and 2.6Ah. -
Page 15: Figure 2: Flame Simulator Rear View
Product Overview Figure 2: Flame Simulator Rear View Figure 3: Flame Simulator Front View TM380102 Rev. (Ad), September 2020... -
Page 16: Certification Instructions
Product Overview Electronic Compartment Reflector Battery Compartment Push Button Battery Back Cover Sight Handgrip Back Cover Locking Screw Certification Instructions 2.6.1 General Instructions The equipment marking is defined as follows: Ex II 2 G D Ex db ib IIB + H2 T4 Gb Ex ib tb IIIC T135°C Db -20°C to +50°C / -4°F to +122°F •... -
Page 17: Specific Conditions Of Use
Product Overview 2.6.2 Specific Conditions of Use • The dimensions of the flameproof joints are other than the relevant minimum or maximum values required by Table 3 of IEC/EN 60079-1:2014 for IIB + H2, as detailed below: Minimum Width Maximum Gap Flamepath Description Type of Joint “L”... -
Page 19: Operation Instructions
Operation Instructions Operation Instructions Ordering Information The P/N of the Flame Simulator Kit is 380114-2. The kit is supplied in a carry case that includes: • Flame Simulator FS-1200 • Charger • Tool Kit • Technical Manual TM380102 Unpacking Verify that you have received the following components: •... -
Page 20: Operating Instructions
Operation Instructions Operating Instructions Verify you are using the correct simulator that fits the tested detector, per section 2.1 on page 13 Verify you are at the correct distance from the detector according to the type of detector and the detector sensitivity (See Simulator Status on page 22). Using the mechanical sight, aim the flame simulator toward the center of the detector. -
Page 21: Detection Ranges
Operation Instructions Detection Ranges Table 1: Detection Ranges per Detector/Flame Simulator Detector Testing Distance Sensitivity Model Detector Types (ft/m) Setting (ft/m) FS-1200 40/40C-LB 10/3 50/15 23/7 40/40C-L4B 42/13 12/4 40/40D-LB 10/3 50/15 23/7 93/28 46/14 40/40D-L4B 42/13 12/4 40/40U-UB, 40/40L-LB, 50/15 20/6 20/20ML... - Page 22 To replace the battery: To remove the battery, follow steps 1-4 in "To Charge the Battery" section. Insert the new battery pack in the simulator housing. Use only a SPECTREX battery pack, P/N 380004. Follow steps 9-11 in "To Charge the Battery" section.
-
Page 23: Maintenance
• Ensure the reflector and window are clean. • Before replacing the battery, check that you have a SPECTREX Battery Pack, P/N 380004. • When the simulator is not in use, remove the battery pack and recharge every 6 months. -
Page 24: Troubleshooting
Operation Instructions Troubleshooting Model Problem Solution FS-1200 LED flashes 3 Recharge the battery. times LED flashes 5 Disconnect and reconnect the battery. Operate times the flame simulator again. Recharge the battery. LED does not turn on Replace the battery. Verify that you are aiming the flame simulator Flame simulator beam to the center of the flame detector seems to work... - Page 25 Operation Instructions • Explosion proof enclosure: ATEX and IECEx Ex II 2 G D Ex db ib IIB + H2 T4 Gb Ex ib tb IIIC T135°C Db -20°C to +50°C / -4°F to +122°F cCSAus Class I, Zone 1, AEx db ib op is IIB+H2 T4 Gb -20°C ≤...
