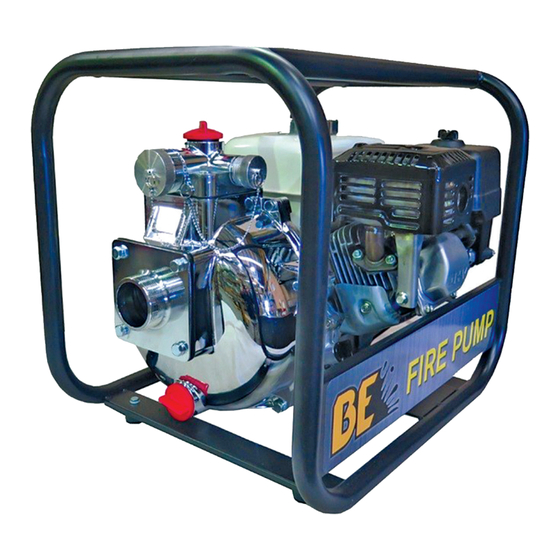

OPERATION
MANUAL
FIRE PUMPS
WATER TRANSFER PUMPS
ULTRALITES
TRASH PUMPS
POLY CHEMICAL PUMPS
OCTOBER 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 124 WP3065-HE and is the answer not in the manual?

Questions and answers

Summary of Contents for BE 124 WP3065-HE

  • Page 1 OPERATION MANUAL FIRE PUMPS WATER TRANSFER PUMPS ULTRALITES TRASH PUMPS POLY CHEMICAL PUMPS OCTOBER 2023...
  • Page 2 OPERATION MANUAL www.bargroup.com.au...
  • Page 3 B.E. has developed over many years a strong reputation for world class innovation and quality that has enabled the product to be sold all throughout the world. Keep this owners manual handy so you can refer to it at any time.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION USING THE OPERATORS MANUAL SUCTION AND DISCHARGE HOSE PRODUCT IDENTIFICATION IDENTIFICATION NUMBERS PRIMING SAFETY 7-11 SAFETY RULES 7-11 HAZARD SYMBOLS AND MEANINGS WATER PUMP COMPONENTS COMPONENT CHART ASSEMBLY CONNECT SUCTION HOSE TO PUMP ATTACH SUCTION HOSE TO STRAINER BASKET 13-14 CONNECT DISCHARGE HOSE...
  • Page 5: Introduction

    Self priming time is also proportional to suction hose length! Strainer MUST always be used on the end of the suction hose to keep solids out of the pump. Check carefully to make sure there are no air leaks in the suction line and that the rubber gaskets are in good condition.
  • Page 6: Product Identification

    product identification PRODUCT IDENTIFICATION Record Identification Numbers Water Pump If you need to contact an Authorized Dealer or Customer Service line If you need to contact an Authorized Dealer or Customer Service line  (1-866-850-6662) for information on servicing, always provide the  (02) 4577 2144 and email : sales@bargroup.com.au for information on servicing, always provide the product model and identification numbers. product model and identification numbers.
  • Page 7: Safety

    safety SAFETY Save these Instructions Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol (      ) is used with a signal word (DANGER,  CAUTION, WARNING), a pictorial and/or a safety message to alert  you to hazards. ...
  • Page 8 safety SAFETY WARNING Running engine gives off carbon monoxide, an odorless,  colorless, poison gas. Breathing carbon monoxide can cause headache,  fatigue, dizziness, vomiting, confusion, seizures, nausea,  fainting or death. • Operate water pump ONLY outdoors. • Keep exhaust gas from entering a confined area through windows,   doors, ventilation intakes, or other openings. • DO NOT start or run engine indoors or in an enclosed area, even if   windows and doors are open. WARNING Use of water pump can create puddles and slippery surfaces. • Operate water pump from a stable surface. • The area should have adequate slopes and drainage to reduce the    possibility of a fall due to slippery surfaces. WARNING Unintentional sparking can result in fire or electric  shock. When Adjusting or Making Repairs to Your Water Pump • Disconnect the spark plug wire from the spark plug and place the       wire where it cannot contact spark plug. When Testing for Engine Spark • Use approved spark plug tester. • DO NOT check for spark with spark plug removed. www.bargroup.com.au...
  • Page 9 SAFETY safety WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Adding or Draining Fuel • Turn water pump OFF and let it cool at least 2 minutes before   removing fuel cap. Loosen cap slowly to relieve pressure in tank. • Fill or drain fuel tank outdoors. • DO NOT overfill tank. Allow space for fuel expansion. • If fuel spills, wait until it evaporates before starting engine. • Keep fuel away from sparks, open flames, pilot lights, heat, and other      ignition sources. • DO NOT light a cigarette or smoke. When Starting Equipment • Ensure spark plug, muffler, fuel cap, and air cleaner are in place. • DO NOT crank engine with spark plug removed. When Operating Equipment • DO NOT pump flammable liquids, such as fuel or fuel oils. • This water pump is not for use in mobile equipment or marine    applications. • DO NOT tip engine or equipment at angle which causes fuel to spill. • Secure water pump. Loads from hoses may cause tipover. When Transporting or Repairing Equipment • Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF. • Disconnect spark plug wire. When Storing Fuel or Equipment with Fuel in Tank • Store away from furnaces, stoves, water heaters, clothes dryers, or   other appliances that have pilot light or other ignition source because   they can ignite fuel vapors.
  • Page 10 SAFETY safety WARNING Starter cord kickback (rapid retraction) can result in bodily injury. Kickback will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises, or sprains could result. Keep hands and body clear from discharge of pump. • When starting engine, pull cord slowly until resistance is felt and then        pull rapidly to avoid kickback. • Secure discharge hose to avoid whipping. WARNING Contact with muffler area can result in serious burns. Exhaust heat/gases can ignite combustibles, structures  or damage fuel tank causing a fire. • DO NOT touch hot parts and AVOID hot exhaust gases. • Allow equipment to cool before touching. • Keep at least 5 feet (1.5 m) of clearance on all sides of pressure      washer including overhead. WARNING Starter and other rotating parts can entangle hands, hair, clothing, or accessories. • NEVER place hands or body parts inside of running pump or hoses. • Never operate water pump without protective housing or covers. • DO NOT wear loose clothing or anything that may be caught in the    starter or other rotating parts. • Tie up long hair and remove jewelry. www.bargroup.com.au...
  • Page 11 SAFETY safety CAUTION Excessively high operating speeds increase risk of injury and damage  to water pump. Excessively low speeds impose a heavy load. • DO NOT tamper with the governed speed. • DO NOT modify the water pump. • DO NOT allow unqualified persons or children to operate or service      water pump. NOTICE Improper treatment of water pump can damage it and shorten its life. • If you have questions about intended use, ask dealer or contact    nearest authorized dealer. • Be sure pump chamber is filled with water before starting the engine.    Never run pump without priming. • Use a non-collapseable hose on the suction side of the hose. • Use water pump only for intended uses. • Pumping sea water, beverages, acids, chemical solutions, or any other    liquid that promotes corrosion can damage the pump. • Ensure all connections are air tight. • DO NOT obstruct the suction or discharge hose in any way. • NEVER operate pump without strainer basket connected to end of    suction hose.   • NEVER allow vehicles to drive over hoses. If a hose must be    positioned across a roadway, use planking on each side of hose to      allow vehicles to pass over without obstructing or collapsing hose.  • Anchor pump to avoid equipment movement. • Keep equipment away from edge of river or lake where it could cause    the bank to collapse.   • DO NOT insert any objects through cooling slots. • NEVER operate units with broken or missing parts, or without   protective housing or covers. • DO NOT by-pass any safety device on this machine. • NEVER move machine by pulling on hoses. Use frame on unit. • Check fuel system for leaks or signs of deterioration, such as chafed   or spongy hose, loose or missing clamps, or damaged tank or cap.   Correct all defects before operating water pump. www.bargroup.com.au...
  • Page 12: Water Pump Components

    8. On/Off Switch Set this switch to “On” before using recoil starter. Set switch to     “Off” to stop a running engine. 9. Oil Drain Drain engine oil here. 10. Oil Fill Check and add engine oil here. 11. Suction Inlet Connect reinforced suction hose here. 12. Water Drain Plug Remove to drain water from pump and flush internal components           with clean water. 13. Pump Chamber Be sure to fill with water before starting. 14. Fuel Shutoff Valve Used to turn fuel supply on and off to engine. Item Not Shown: Strainer Basket Used to limit passage of abrasive materials into the pump. www.bargroup.com.au...
  • Page 13: Assembly

    ASSEMBLY assembly assembly Your water pump requires some set up and is ready for use after it has  Your water pump requires some set up and is ready for use after it has  been properly serviced with the recommended oil and fuel. been properly serviced with the recommended oil and fuel. If you have any problems with the set up of your water pump, If you have any problems with the set up of your water pump, please call  If you have any problems with the set up of your water pump, please call  please call the pressure washer help line at (02) 4577 2144 and the pressure washer help line at 1-866-850-6662 If calling for assistance,  the pressure washer help line at 1-866-850-6662 If calling for assistance,  please have the model and serial number from the data tag available. email : sales@bargroup.com.au If calling for assistance, please have please have the model and serial number from the data tag available.
  • Page 14 discharge port size. 1. Slide barb cuff over hose barb. Insert rubber seal into 1. Slide barb cuff over hose barb. Insert rubber seal into end of barb cuff as shown earler. end of barb cuff as shown earler. assembly ASSEMBLY 2.
  • Page 15: Operation

    OPERATION operation operation What is “Head” Head refers to the height of a column of water that can be delivered by  the discharge of the pump. Suction Head is the vertical distance between the center of the pump  and the surface of the liquid on the suction side of the pump. May also  be referred to as “suction lift”. The atmospheric pressure of 14.7 psi at  sea level limits suction head lift to less than approximately 26 feet for any  pump. Discharge Head is the vertical distance between the pump’s discharge  port and the point of discharge, which is the liquid surface if the hose is  submerged or pumping into the bottom of a tank. Total Head is the sum of the suction head value plus the discharge head  value. As water pumping height increases, pump output decreases. The length,  type, and size of the suction and discharge hoses can also significantly  affect pump output.  It is important for the suction operation to be the shorter part of the total  pumping action. This will decrease the priming time and improve pump  performance by increasing the discharge head. Suction head is a maximum of 25 feet and discharge head should be a  maximum of 81 feet. Total head can not be more than 106 feet as shown  on next page. Move Water Pump to Safe Operating Location For best pump performance, locate the pump on a flat, level surface as  close as possible to the water to be pumped. Secure water pump to  avoid tipover. Use hoses that are no longer than necessary. IMPORTANT: Direct open end of discharge hose away from home,  electrical devices or anything not desired to get wet. WARNING Fuel and its vapors are extremely flammable and...
  • Page 16: Prime The Water Pump

    OPERATION Total Head Discharge  Head Suction Head Prime the Water Pump 1. Remove priming plug from top of pump. 2. Fill pump with clean, clear water up to top of discharge outlet. 3. Replace priming plug. NOTICE Improper treatment of water pump can damage it and shorten its life. • Be sure chamber is filled with water before starting the engine.    • NEVER run pump without priming www.bargroup.com.au...
  • Page 17: Locate Strainer Basket Into Water Source

    OPERATION Locate Strainer Basket Into Water Source Place strainer basket into water to be pumped. Basket must be fully  immersed. NOTICE Improper treatment of water pump can damage it and shorten its life. • NEVER operate pump without strainer connected to end of suction    hose. • Keep strainer out of sand or silt, place in bucket or on stones. • DO NOT let pump run dry or damage to seals may result. www.bargroup.com.au...
  • Page 18: Starting The Water Pump

    STARTING THE WATER PUMP Starting the Water Pump Use the following start instructions: 1. Make sure unit is on a flat, level surface and pump chamber is primed. 2. Turn fuel valve (1) to “On” position. The fuel valve handle will be      vertical (pointing toward the ground). 3. Push on/off switch (2) to “On” position. 4. Move engine speed lever (3) to “Fast” ( ) position. 5. Move choke lever (4) to “On” position. 6. Grasp recoil handle and pull slowly until slight resistance is felt. Then         pull handle rapidly to overcome compression, prevent kickback and      start engine.  WARNING Starter cord kickback (rapid retraction) can result in bodily injury. Kickback will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises, or sprains could result. • When starting engine, pull cord slowly until resistance is felt and then        pull rapidly to avoid kickback. www.bargroup.com.au...
  • Page 19: Starting The Water Pump

    starting the water pump STARTING THE WATER PUMP IMPORTANT: If excessive fuel is present in the air/fuel mixture causing a  “flooded” condition, move choke lever to “Run”  position and pull handle  repeatedly until engine starts. 7. Move choke lever to “Run” position a short distance at a time over      several seconds in warm weather or minutes in cold weather. Let        engine run smoothly before each change. Operate with choke in “Run”        position. IMPORTANT: It may take a few minutes for water pump to begin  pumping water. WARNING Contact with muffler area can result in serious burns. Exhaust heat/gases can ignite combustibles, structures  or damage fuel tank causing a fire. • DO NOT touch hot parts and AVOID hot exhaust gases. • Allow equipment to cool before touching. • Keep at least 5 feet (1.5 m) of clearance on all sides of pressure      washer including overhead. Pump output is controlled by adjusting engine speed. Moving the engine  speed lever in the “Fast” direction will increase pump output, and moving  the engine speed lever in the “Slow” direction will decrease pump output. www.bargroup.com.au...
  • Page 20: Stopping The Water Pump

    STOPPING THE WATER PUMP stopping the water pump Stopping the Water Pump 1. Move engine speed lever to “Slow” position. 2. Push on/off switch to “Off” position. 3. Turn fuel valve to “Off” position. WARNING Backfire, fire or engine damage could occur. • DO NOT stop engine by moving choke control to “Choke” position. Drain and Flush Water Pump 1. Disconnect and drain suction and discharge hoses. 2. Remove drain plug at bottom of pump. 3. Remove primer plug from top of pump and flush internal components      of pump with clean water. 4. Replace both plugs and finger tighten. www.bargroup.com.au...
  • Page 21: How To Choose A Water Pump

    Water water or dirty water handling water while still maintaining a high flow rate. Corrosive Materials Specialists Applications Ÿ Marine firefighting & salvage BE 2” & 3” Poly Pumps are best Ÿ Liquid fertilizer Ÿ Caustic liquids Ÿ Pesticides suited for pumping corrosive or High volume transfer Ÿ...
  • Page 22: Troubleshooting

    Defective engine? See Engine Owners Manual EMERGENCY USE ONLY … low oil cut-out on Honda engines can be disabled by disconnecting the yellow wire that leads to the starter. NOTE engine warranty may be affected. Engine Troubleshooting; refer to engine manufacturer’s manual...
  • Page 23 OWNERS MANUAL www.bargroup.com.au...
  • Page 24 IF YOU NEED ASSISTANCE WITH THE ASSEMBLY OR OPERATION OF THIS WATER PUMP CALL (02) 4577 2144 EMAIL SALES@BARGROUP.COM.AU...
