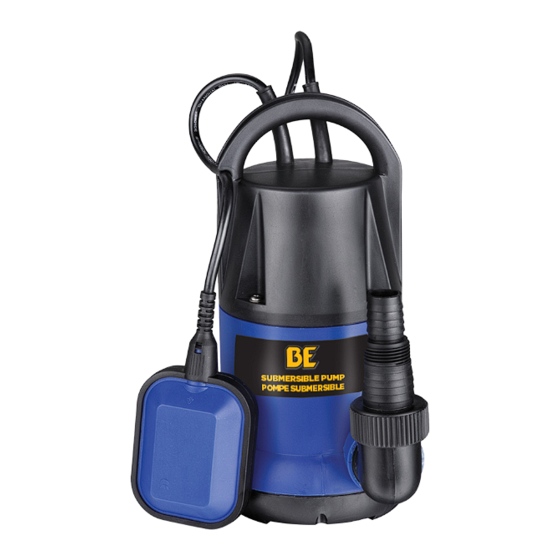

- Page 1 SUBMERSIBLE PUMP User Manual 610.536...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Using the Operators Manual Product Identification Pressure Washer Components Components Diagram Product Information 6 Product Information Operating Instructions 7 Pre-operation Instructions 8 Operating Instructions Technical Information 10 Product specifications Troubleshooting 11 How to Start your Pressure Washer... -
Page 3: Introduction
Using the Operator’s manual The operating manual is an important part of your Submersible Pump. It should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being addressed. Reading the owner’s manual thoroughly will help avoid any personal injury or damage to your pump. -
Page 4: Product Identification
It must be understood that it is ultimately up to the owner/operator to safely use this machine as outlined in this manual. This manual is considered a part of the machine and needs to be kept in a safe location. If the machine is resold or given to someone else, this manual needs to be included. -
Page 5: Components
COMPONENTS ½” 1¼” 1” 13mm 32mm 25mm ” 15mm ¾” 19mm... -
Page 6: Product Information
Only clean or slightly contaminated water can be handled by these pumps. The max particle size allowable is 0.08”, 2mm, except the Trash Pump Model # ST-900SD which allows .25”... -
Page 7: Pre-Operation Instructions
21” (53cm) and automatically switches off at a water height of approx 2” (5cm) by fixing the float switch cable to the float switch lock (3). The cut-in/cut-out height can be adjusted individually. 4.3 Location and Transport • Please ensure that the pump is placed in a stable position, especially for automatic operation. - Page 8 <30mA. • Always check the pump (above all power cable and plug) before each operation. A damaged pump must not be used. It is absolutely necessary to have the pump inspected by a service center. • Ensure that the electrical connections are made within a dry area, protected from flooding.
-
Page 9: Operating Instructions
7. Operating Tips • Dry-running operation causes increased wear and should be avoided at all costs. This means that the unit must be switched off if water ceases to flow at any point. • The pump is automatically switched off upon overheating by the built-in thermal motor protector. - Page 10 TECHNICAL DATA 9. Technical Data SP-500TD SP-550SD SP-600BD SP-650BD SP-750TD SP-900SD ST-900SD Max. Delivery Capacity 1580 GPH 2905 GPH 3036 GPH 3036 GPH 2905 GPH 4360GPH 4356GPH 5980 l/h 11,000 l/h 11,500 l/h 11,500 l/h 10,996 l/h 16,500 l/h 16,490 l/h 28.5 ft...
- Page 11 Pump runs but Suction base is clogged. Disconnect plug and output suddenly clean suction base decreases. (point 8). Please note that any damage caused to the machine due to lack of maintenance or improper use will not be covered under warranty.
- Page 12 If you need assistance with the assembly or operation of your Submersible Pump please call 1-866-850-6662...
