aspenhome
ah
ITEM NO: I644-9100
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
FUNCTIONALITY INSTRUCTION
If you prefer to adjust the shelf location,
remove the screws and move shelf
brackets to the desired location. Then
secure the brackets to shelf with screws.
Pass Through Drawer
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/2
R

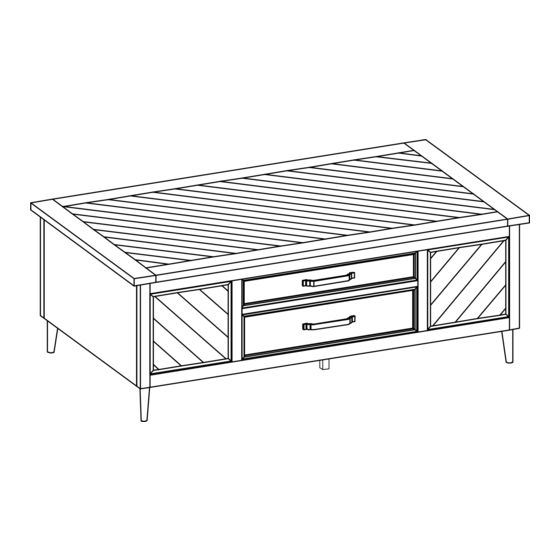

Lift Top Cocktail Table
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST:
Description
No.
A Bolt Ø5/16" x 1"
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
D Allen Wrench 4mm
E
Shelf Bracket
F
Wood Screw #7 x 5/8"
COMPONENTS LIST:
Description
No.
1
Case
2
Metal Leg
Support Leg
3
3
Wood Shelf
Leveler on Legs
Quantity
Sketch
12 PCS
12 PCS
12 PCS
1 PC
8 PCS
8 PCS
Quantity
Sketch
1 PC
4 PCS
1 PC
2 PCS
Pass Through Drawer
Adjust the leveler
when necessary
04-27-2023
Advertisement
Table of Contents
Related Manuals for aspenhome I644-9100
Summary of Contents for aspenhome I644-9100
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I644-9100 Lift Top Cocktail Table Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED)
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I644-9100 Lift Top Cocktail Table STEP 1: Put the case upside down on a soft surface. STEP 2: Remove the packed box for wood shelf. Attach the metal legs by using 12 bolts (A), lock washers (B) and flat washers (C). Use the allen wrench (D) to tighten all bolts. Install the support leg as well.
