- Page 1 Designed to Enhance E S T. � 9 8� Installation + User Manual OCG604WX / OCG705WX / OCG905WX / / OCGG604WB / OCGG905WB Gas Cooktops 60, 70 & 90cm omegaappliances.com.au V1.5 0424...
-
Page 2: Table Of Contents
User Manual Gas Cooktops Contents Welcome Safety Information Installation Instructions �3 Technical Specifications Cooktop Overview Operating Instructions Care & Maintenance Purchase Details Warranty Information... -
Page 3: Welcome
It is important that you read through the following user manual thoroughly, in order to familiarise yourself with the installation and operation requirements of your appliance, and to ensure optimum performance. Again, thank you for choosing an Omega appliance and we look forward to being of service to you. Kind Regards,... -
Page 4: Safety Information
User Manual Gas Cooktops Safety Information Important Safety Instructions • WARNING: All electrical work must be done in accordance with local and national electrical codes as applicable and should be undertaken by licensed and qualified persons only. This cooktop must only be installed by a suitably licensed and qualified installer in accordance with the instructions provided. - Page 5 User Manual Gas Cooktops Designed to Enhance Safety Information • Do not use a roasting dish that is so large it has to be heated • Ensure that this product is disposed of correctly, to prevent using two burners, as this will cause too much heat to any possible damage to the environment and to human accumulate, damaging your appliance.
-
Page 6: Installation Instructions
Model Width (W) Depth (D) completing the installation process. • This appliance must be installed in compliance with: OCG604WX 560mm 490mm AS/NZS 5601.1 Gas Installations Part 1: General Installations, and AS/NZS 5601.2 Gas Installations Part 2: LP Gas installations in caravans and boats for non-propulsive... - Page 7 User Manual Gas Cooktops Designed to Enhance Installation Instructions Installation Procedure • Take care to ensure that the seals meet without overlapping. The thickness of this foam tape is 3mm and the width is • A barrier must be installed to prevent accidental contact 10mm.
- Page 8 User Manual Gas Cooktops Installation Instructions Elbow Positioning Operating with Natural Gas Assembly of elbow to manifold at rear of unit requires • Your appliance is designed to run both LPG and natural two spanners to secure locking nut and ensure leak free gas.
- Page 9 User Manual Gas Cooktops Designed to Enhance Installation Instructions Assembling the Gas Regulator • The ½” tapered thread connects to the outlet of the regulator, and is sealed on the thread either by using An appliance regulator is provided. The regulator must be an approved thread sealing tape, or an approved thread positioned so that the pressure test nipple is accessible when sealing compound.
- Page 10 User Manual Gas Cooktops Installation Instructions Testing the Gas Supply LPG Conversion Check the manometer zero point is correct. Then connect the Your cooktop has been set up for natural gas usage, however manometer to the cooktop pressure point. This is located on a conversion kit is included with the product for universal LPG the regulator.
- Page 11 Designed to Enhance Installation Instructions Electrical Connection 60cm Cooktops Electrical Diagram Your Omega cooktop has been designed to operate on a power Spark � supply voltage of 220-240V, single phase, and has been fitted with a 10 amp, 3 pin plug.
- Page 12 User Manual Gas Cooktops Installation Instructions Testing Appliance Operation • IMPORTANT: If the appliance has been converted to LPG, then the bypass screw will HAVE to be screwed in until a After installation, test the appliance and ensure that it operates small, stable flame results.
-
Page 13: Technical Specifications
User Manual Gas Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCG604WX Model Number OCG604WX Cooktop Finish Stainless Steel Trivet Material SafeSlide Cast Iron Rated Voltage 220–240V~ Rated Frequency 50–60Hz Rated Power Burner Output: Auxiliary (×1) 3.3 MJ/h Burner Output: Semi-Rapid (×2) 6.0 MJ/h... - Page 14 User Manual Gas Cooktops Technical Specifications Specifications Chart: OCG705WX Model Number OCG705WX Cooktop Finish Stainless Steel Trivet Material SafeSlide Cast Iron Rated Voltage 220–240V~ Rated Frequency 50–60Hz Rated Power Burner Output: Auxiliary (×1) 3.3 MJ/h Burner Output: Semi-Rapid (×2) 6.0 MJ/h Burner Output: Rapid (×1) 10.5 MJ/h Burner Output: Wok (×1)
- Page 15 User Manual Gas Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCG905WX Model Number OCG905WX Cooktop Finish Stainless Steel Trivet Material SafeSlide Cast Iron Rated Voltage 220–240V~ Rated Frequency 50–60Hz Rated Power Burner Output: Auxiliary (×1) 3.3 MJ/h Burner Output: Semi-Rapid (×2) 6.0 MJ/h Burner Output: Rapid (×1) 10.5 MJ/h...
- Page 16 User Manual Gas Cooktops Technical Specifications Specifications Chart: OCGG604WB Model Number OCGG604WB Cooktop Finish Gas on Glass Trivet Material Cast Iron and Brass Rated Voltage 220–240V~ Rated Frequency 50–60Hz Rated Power Burner Output: Auxiliary (×1) 3.3MJ/h Burner Output: Semi-Rapid (×2) 6.0 MJ/h Burner Output: Wok (×1) 19.5 MJ/h...
- Page 17 User Manual Gas Cooktops Designed to Enhance Technical Specifications Specifications Chart: OCGG905WB Model Number OCGG905WB Cooktop Finish Gas on Glass Trivet Material Cast Iron and Brass Rated Voltage 220–240V~ Rated Frequency 50–60Hz Rated Power Burner Output: Auxiliary (×1) 3.3 MJ/h Burner Output: Semi-Rapid (×2) 6.0 MJ/h Burner Output: Rapid (×1)
-
Page 18: Cooktop Overview

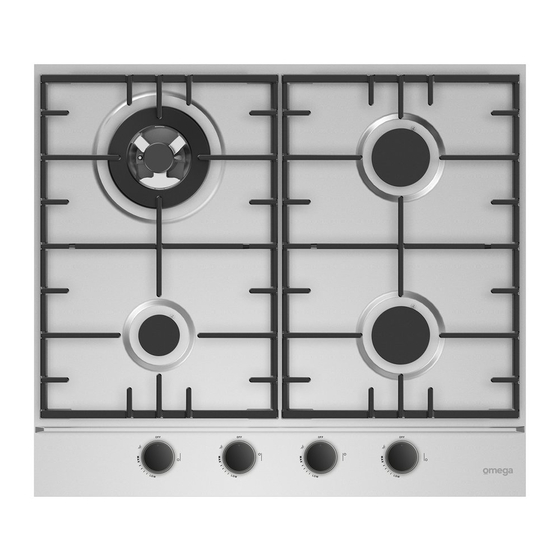

User Manual Gas Cooktops Cooktop Overview A. Auxiliary Burner B. Semi-Rapid Burner C. Rapid Burner D. Wok Burner E. Controls ↑ OCG604WX ↑ OCGG604WB ↑ OCG705WX ↑ OCGG905WB ↑ OCG905WX... - Page 19 User Manual Gas Cooktops Designed to Enhance Cooktop Overview Burner Key A. Burner Lid B. Burner Skirt C. Ignition Spark Plug D. Injector Jet E. Flame Sensor F. Flame Ports...
- Page 20 User Manual Gas Cooktops Operating Your Cooktop Cooking With Your Gas Cooktop Place a suitable pan on the burner you wish to use, following page 23’s cookware guide. Make sure that the bottom of the pan and the surface of the cooktop are clean and dry, and that there are no cracks or oil build-up present.
- Page 21 User Manual Gas Cooktops Designed to Enhance Operating Your Cooktop Choice of Burner Choice of Cookware Below is a guide to using your cooktop’s burners: Many common pots and pans, such as those made from aluminium, ceramic, cast-iron and stainless steel may be used on •...
-
Page 22: Care & Maintenance
User Manual Gas Cooktops Care & Maintenance Before Cleaning Cooktop Surface • Read this user manual carefully, taking special note of the • In some cases it is helpful to clean up and CAUTION: ‘Safety Information’ chapter in particular. remove spillages immediately, while the hob is still hot. This is especially the case for sugary foods such as jam, •... - Page 23 User Manual Gas Cooktops Designed to Enhance For Minor Faults Problem Possible Cause Solution One of the burners is not lighting up, The knob may not have been pushed down Repeat the lighting procedure, even though the sparker appears to long enough to deactivate the burner’s however this time hold the knob down be working normally.
-
Page 24: Purchase Details
User Manual Gas Cooktops Purchase Details Attach your receipt to this page For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. Store Details Store Name Address... - Page 25 User Manual Gas Cooktops Designed to Enhance Notes...
-
Page 26: Warranty Information
User Manual Gas Cooktops Warranty Information WARRANTY TERMS AND CONDITIONS In this warranty GAS COOkTOPS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the product ‘... - Page 27 User Manual Gas Cooktops Designed to Enhance Warranty Information You will bear the cost of transportation, travel and delivery of For Appliances and services provided by Residentia the Appliance to and from Residentia Group or its ASR. If you Group in Australia, the Appliances come with a guarantee reside outside of the service area, you will bear the cost of: by Residentia Group that cannot be excluded under the travel of an authorised representative;...
- Page 28 E S T . 1 9 8 1 Designed to Enhance...
