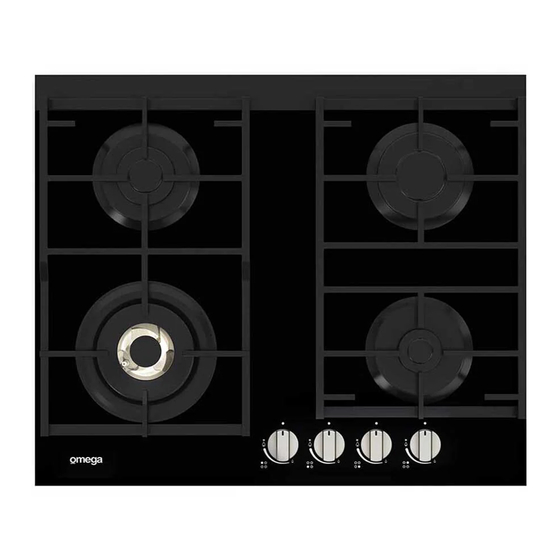

- Page 1 INSTRUCTIONS FOR THE INSTALLATION AND USE OF BUILT-IN HOT PLATES OCG63FXB1 OCG75FXB OCG90FXB ...
- Page 2 ...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that they can learn how to operate the appliance and read the corresponding notice. -
Page 4: Instructions For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by authorised personnel, in conformity with the regulations in force. The specific instructions are described in the ... - Page 5 INSTRUCTIONS FOR THE USER INSTRUCTIONS FOR THE USER Burner Flame safeguard Injector Ignition spark plug If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call. You will have to pay for a service call even in the warranty period if the problem is one listed below FAULT POSSIBLE CAUSES...
- Page 6 INSTRUCTIONS FOR THE INSTALLER INSTRUCTIONS FOR THE USER Wash with warm soapy water and rinse with clean water. CLEANING Where the stainless steel has become extremely dirty Before any operation, disconnect the appliance from with signs of surface discolouration (due to periods of the electrical supply.
- Page 7 INSTRUCTIONS FOR THE INSTALLER INSTRUCTIONS FOR THE USER Adjacent walls, cupboards and protection for Fastening the top combustible materials. Every cook-top is equipped with a special washer. A set of hooks is also supplied for mounting Ensure that the appliance is installed in the cook-top.
- Page 8 INSTRUCTIONS FOR THE INSTALLER INSTRUCTIONS FOR THE USER the regulator, and is sealed on the thread using OPERATION ON N.G / S.N.G. approved thread sealing tape or approved thread Gas Connection sealing compound. The inlet of the regulator is a ½” tapered internal This appliance is supplied for use with Natural thread and is connected to consumer piping or hose Gas.
- Page 9 INSTRUCTIONS FOR THE USER INSTRUCTIONS FOR THE INSTALLER Adjusting the burners lowest flame point must always Electrical connection properly adjusted and the flame must remain The appliance is supplied with a standard 10 on even if there is an abrupt shift from the Amp service cord terminated by a 3-pin plug for maximum to the minimum position.
- Page 10 MAXIMUM MINIMUM ...
- Page 11 Universal LPG 1 Rapid burner 11,5 MJ/h 9.6 MJ/h 2 Semi-rapid burner 6.3 MJ/h 5.6 MJ/h 3 Auxiliary burner 3.4 MJ/h 3.4 MJ/h 4 Triple ring burner 13.0 MJ/h 12.0 MJ/h 5 Double ring burner 12.5 MJ/h 12.5 MJ/h 8 Control knob for burner ...
-
Page 12: Appliance Details
Universal LPG 2.75 12.0 TRIPLE CROWN Natural 1.00 Adjust. 13.0 Universal LPG 2.75 12.5 DOUBLE CROWN Natural 1.00 Adjust. 12.5 WIRING DIAGRAM MODEL: OCG63FXB1 MODEL: OCG75FXB/ OCG90FXB IGNITION TRIPOLAR TRIPOLAR GENERATOR TERMINAL IGNITION TERMINAL GENERATOR N MICRO-UNIT MICRO-UNIT ... - Page 13 The mini-trivet included with this cooktop is to be used for cooking vessels of diameter 120mm or smaller Incorrect fitment Correct fitment Examples of positioning of mini-trivet MODEL: OCG63FXB1 MODEL: OCG75FXB MODEL: OCG75FXB ...
