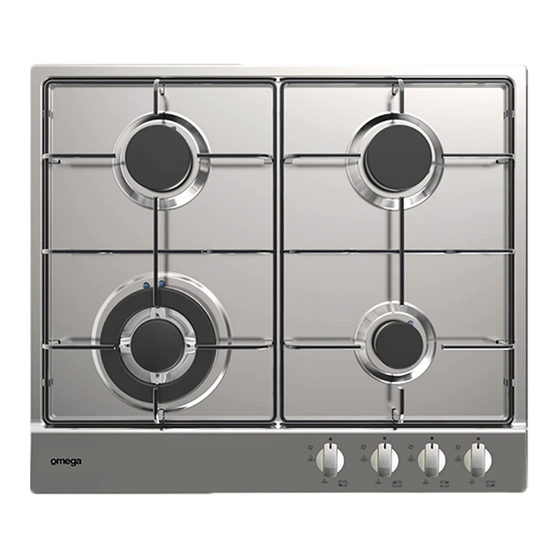

- Page 1 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Gas Cooktops OCG60X, OCG64X...
-
Page 3: Table Of Contents
CONGRATULATIONS Welcome to the Omega Kitchen Community and thank you for choosing one of our many fantastic cooking appliances. We are confident that you will now be able to meet your cooking needs. Before you use the cooktop we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Appliance Details
APPLIANCE DETAILS Gas Type: ULPG Burner Pressure: 2.75 kPa 1.00 kPa Injector Injector MJ/hr Rating MJ/hr Rating Diameter Diameter Auxiliary Burner Ø0.55 mm 4.0 MJ/ hr Ø0.90 mm 4.5 MJ/ hr Semi-Rapid Burner Ø0.70 mm 6.75 MJ/ hr Ø1.10 mm 6.0 MJ/ hr Wok Burner Ø0.98 mm... -
Page 6: Gas Connections
GAS CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Check Gas Type and specifications plate placed on the bottom face of the unit. All gas fitting work, service and repairs can only be performed by an authorized person in accordance with the current edition of AS/NZS5601 and local gas regulations. - Page 7 CHECKING THE BURNER PRESSURE Natural Gas (the appliance test point is located at the regulator). The supplied regulator must be fitted to the appliance inlet connection. The gas pressure must be adjusted to 1.0kPa when approximately 50% of the burners are on high. Universal LPG (the appliance test point is located at the injector).
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by an authorized person, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage which the manufacturer accepts no responsibility. The electrical connection can be found 30mm in from the rear edge and 280mm from the left hand side (looking from the front). - Page 9 INSTALLATION IN KITCHEN CABINET WITH DOOR The fixture has to be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.
-
Page 10: Operating Instructions
CLEANING & STORAGE CLEANING Please follow the maintenance & cleaning guidelines below to keep your Omega cooktop in good working order. The cooktop should be cleaned regularly with all stains and boil overs being cleaned up. Do not allow stains and boil overs to become burnt onto the appliance. - Page 11 WOK BURNER MAINTENACE & ASSEMBLY When fitting the wok burner together, it is very important to check that the burner flame distributor (F) and the cap (C) are correctly positioned (fig. 6). Failure to do so can cause problems with ignition and also the way in which the burner operates.
- Page 12 2018-10-15...
