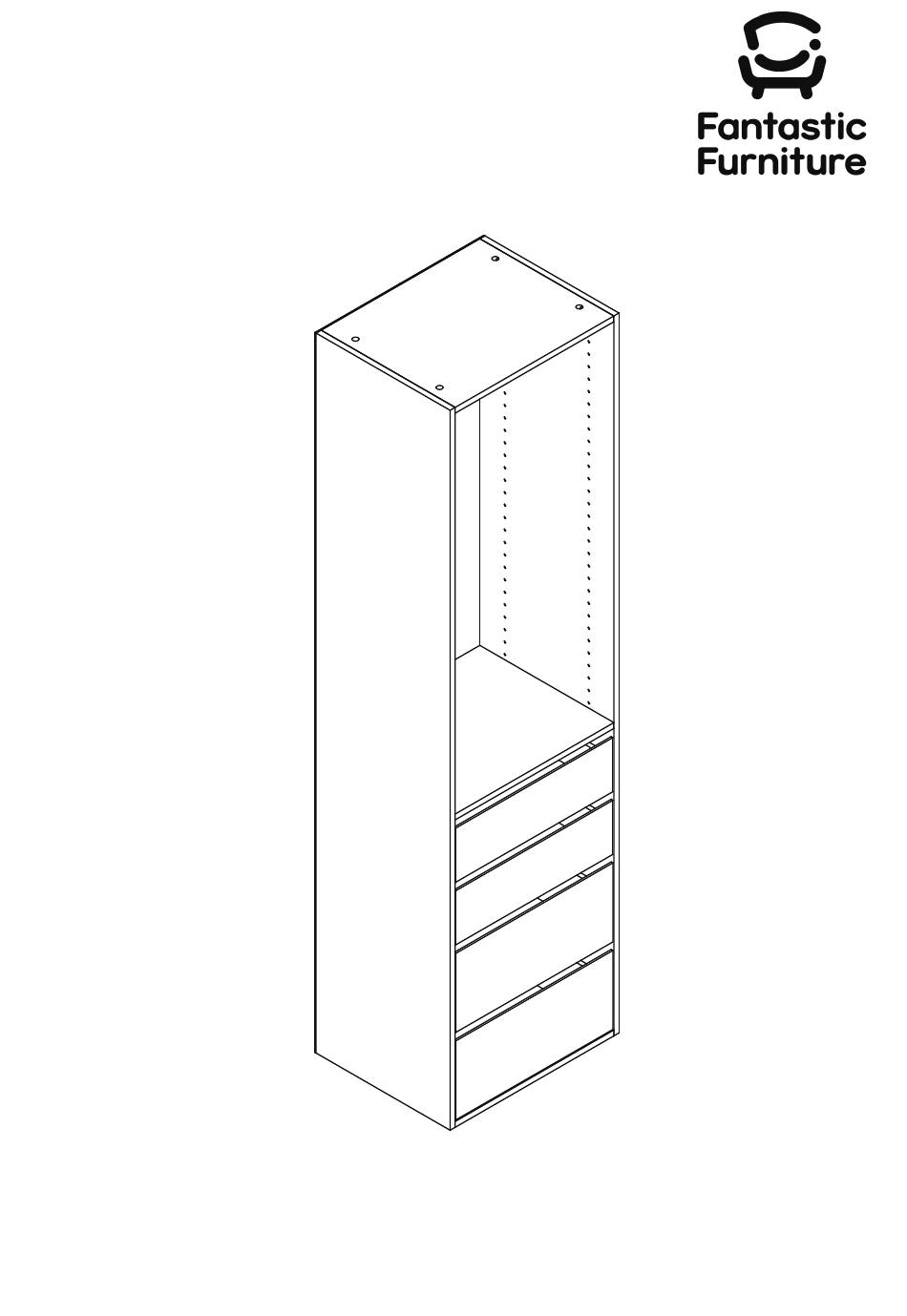

  • Page 1 Version 1.1 Version 1.0 Tailor Utility 4 Drawer Clothes Rack 500 mm fantasticfurniture.com.au...
  • Page 2 Secure it! Reduce the risk of furniture tip-over accidents Please seek professional advice if you are in doubt of what fixing device to use. Recommended Weight Capacity : 15kg/hanging rail or drawer • • • Do not • • Wall attachment guide (with available wood stud) (with available wood stud)
  • Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 3...

  • Page 4: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 5: What You Need

    Top/Bottom Panel What you need (P1) to assemble the product Back Panel (P5) DO NOT USE Right Side Panel Other tools you need: Phillips head screwdriver; (P4) Hammer; Tape Shelf Panel (P2) Left Side Back Panel Panel Parts list (P15) (P3) 2 x Top/Bottom Panels (P1);...
  • Page 6 Step 1 You will need 4 x Cam Nut 16 x Cam Bolts Screws (H6) (H3) (P4) 4 x Small 2 x Hanging Rail H3 H3 Screws (H5) Supports (H7) Phillips ead crewdriver lide Attach 16 x Cam Bolts (H3) and 4 x Cam Nut Screws (H6) into (P3) Left &...
  • Page 7 Step 3 This is how a cam nut works..You will need (P1) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so 4 x Dowels 4 x Cam Nuts it tightens over the (H1) (H4)
  • Page 8 Step 5 You will need (P4) 8 x Dowels 8 x Cam Nuts (H1) (H4) (P1) Phillips Head Screwdriver (P15) Insert 8 x Dowels (H1) into (P15) 2 x Top/Bottom Panels (P1) and 2 x Back Panels (P15). Insert 8 x Cam Nuts (H4) into the holes of 2 x Top/Bottom Panels (P1) (P1) and 2 x Back Panels (P15).
  • Page 9 Step 7 √ You will need (P5) (P3) 30 x Nails Hammer (H2) (P4) Tape Make sure the edge of back panel is well aligned with side, top and bottom panels before nailing the back panel. Turn the unit over. Attach Back Panel (P5) to the cabinet with 30 x Nails (H2) using hammer.
  • Page 10 Step 9 You will need 1 x Hanging 2 x Screws Rail (H8) (H13) 1 x Support Phillips Head Rail (H17) Screwdriver (P4) (P3) Place the Hanging Rail (H8) in the unit by resting it on the Hanging Rail Supports (H7 x 2). Attach 1 x Support Rail (H17) to Left &...
  • Page 11 Step 11 You will need (P7) 4 x Small Cam Phillips ead Nuts (H15) crewdriver (P8) (P6) Insert 4 x Small Cam Nuts (H15) into the holes of Small Drawer Sides (P7, P8). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Push Small Drawer Sides (P7, P8) into place and tighten the cam nuts with a Phillips Head Screwdriver.
  • Page 12 Step 13 You will need (P9) Phillips ead 4 x Long crewdriver Screws (H16) (P7) (P10) (P8) (P6) Attach Small Drawer Back (P9) to Small Drawer Sides (P7, P8) with 4 x Long Screws (H16), make sure that the groove lines up the whole way around the drawer. Step 14 (P8) You will need...
  • Page 13 Step 15 You will need 4 x Small Cam Phillips ead Bolts (H14) crewdriver (P11) Attach 4 x Small Cam Bolts (H14) into Drawer Front (P11). Step 16 You will need (P12) 4 x Small Cam Phillips ead Nuts (H15) crewdriver (P13) (P11)
  • Page 14 Step 17 (P10) (P12) (P13) (P11) Slide Drawer Base (P10) into the groove in Drawer Sides (P12, P13) Step 18 You will need (P14) 4 x Long Phillips ead Screws (H16) crewdriver (P12) (P10) (P13) (P11) Attach Drawer Back (P14) to Drawer Sides (P12, P13) with 4 x Long Screws (H16), make sure that the groove lines up the whole way around the drawer.
  • Page 15 Step 19 You will need (P13) 1 x DL Runner 1 x DR Runner (H11) (H12) (P12) 4 x Small Phillips ead Screws (H5) crewdriver Attach 1 x DL Runner (H11) to the bottom of Left Drawer Side (P12) and 1 x DR Runner (H12) to the bottom of Right Drawer Side (P13) with 4 x Small Screws (H5).

  • Page 16: Job Complete

    Step 21 Seek advice from a qualified trades person on how to You will need attach this safety strap to your specific wall. 1 x Washer Phillips ead (H20) crewdriver wall Screw and Wall Plug are not provided. Please use appropriate fixtures for Screw your wall.
