MAGICKWOODS Elements 49767 Installation Instructions

Questions? Call our customer service department at 1-855-995-5578, 8:30 a.m. - 5 p.m., EST, Monday - Friday
PACKAGE CONTENTS
29-5/8"W x 33-7/8"H x 5"D

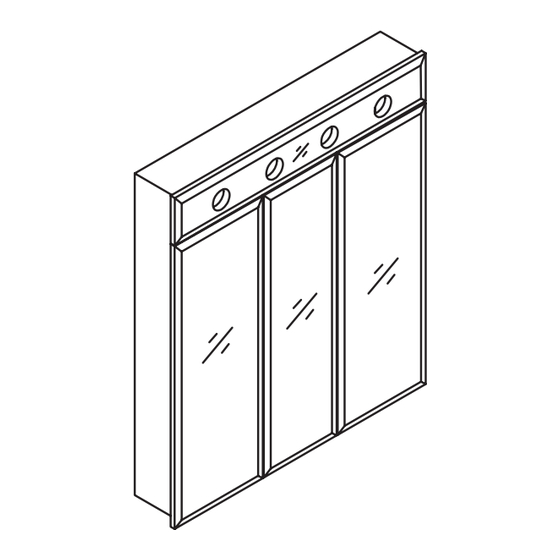

Cabinet (x 1)
WARNINGS & CAUTIONS
WARNING:
Two people are required for safe installation. Take extra precautionary
measures to ensure a secure grip on the cabinet when lifting.
CAUTION:
cabinet.
INSTALLATION
1: Using a level, locate any uneven wall areas where the cabinet will be
installed. Unevenness can cause the cabinet to become misaligned
resulting in twisting of the cabinet. Repair any uneven areas.
2: Determine the desired location of the cabinet. It is recommended that the
cabinet be installed to at least 1 wall stud. In order to locate wall studs,
sounds solid. If you are unable to locate a wall stud, it is recommended
that you use wall anchors (B - not included) to secure your cabinet.
3: Secure the cabinet to the wall by inserting (x 4) 2" screws with (x 4)
washers through the backrails of the cabinet and into the wall. Figure1.
4: Insert each shelf support (x 24) into the pre-drilled holes in the cabinet
then insert each shelf (x 6). Figure 2.
5:
or e-mail: support@magickwoods.com.
Shelf support
2" screw
(x 24)
(x 4)
Washer
Adjustable shelf
(x 4)
(x 3)
Adjustable shelf
(x 3)
TRILOGY MEDICINE CABINET
INSTALLATION INSTRUCTIONS
PREPARATION
Tools required for assembly (not included):
• tape measure
• electric drill with #2 drill bit (A)
• level
• (x 4) wall anchors - if the cabinet will not be
screwed to wall studs (B)
• Note:
sockets E26 and 60w-G25 bulb
Estimated installation time: 1/2 hour
CARE & MAINTENANCE
• Dust frequently with a clean, soft and dry cloth.
• Wipe away any water or liquid spills on the cabinet
immediately with a clean, soft and dry cloth.
• Do not use strong detergents or abrasive cleaners as
they may damage the surface of this product.
B
Figure 1
Model: 49767
B
A
