MAGICKWOODS Elements BRIGHTON 30005 Installation Instructions

Questions? Call our customer service department at 1-855-995-5578, 8:30 a.m. - 5 p.m., EST, Monday - Friday
PACKAGE CONTENTS
24"W x 30"H x 6-1/4"D
WARNINGS & CAUTIONS
WARNING:
Two people are required for safe installation. Take extra precautionary
measures to ensure a secure grip on the cabinet when lifting.
CAUTION:
The bathroom wall must be finished prior to installation of the
cabinet.
INSTALLATION - for recessed-mount (figures 1 and 2)
1: Determine the desired location of
the cabinet on the wall and mark the
cut-out location.
2: Create the cut-out in the wall,
as per the dimensions illustrated.
NOTE: The cabinet will need to be
secured to a wall stud on the left
and right side of the cabinet. Install
additional wall studs as required.
3: Slide the cabinet's back and
sides completely into the recessed
area. To secure, drill (x 1) 2" screw
with (x 1) washer through each side
of the cabinet ((x 2) in the top half
and (x 2) in the bottom half), into
the wall studs as illustrated.
4: Attach the hardware (sold
separately) as per the instructions
provided with the hardware.
or e-mail: contactus@magickwoods.com.
PREPARATION
Tools required for assembly (not included):
• tape measure
• electric drill with #2 drill bit (A)
• level
• (x 4) wall anchors - if the cabinet will not be
2" screws
(x 4)
Estimated installation time: 1/2 hour
Washers (x 4)
screwed to wall studs (for surface-mount
only) (B)
CARE & MAINTENANCE
• To maintain the beauty of the furniture finish, avoid placing
the cabinet in direct sunlight.
• Avoid exposing the cabinet to extreme temperatures by
installing away from heat and air vents.
• Dust frequently with a clean, soft and dry cloth.
• Wipe away any water or liquid spills on the cabinet
immediately with a clean, soft and dry cloth.

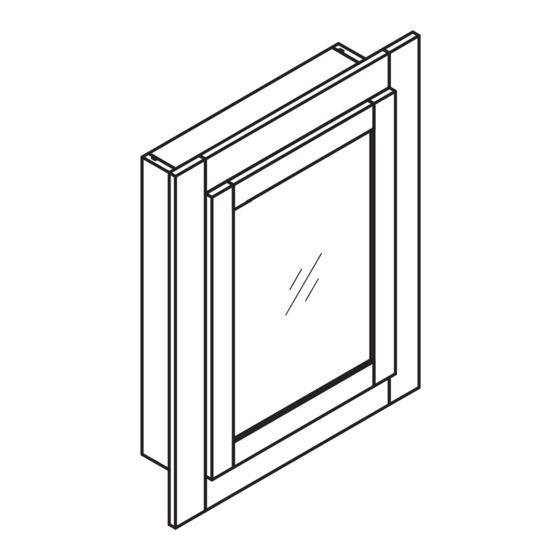

BRIGHTON MEDICINE CABINET
INSTALLATION INSTRUCTIONS
Dark chocolate model: 30005
Matte white model: 30026
Figure 1
B
Figure 2 - Installed
