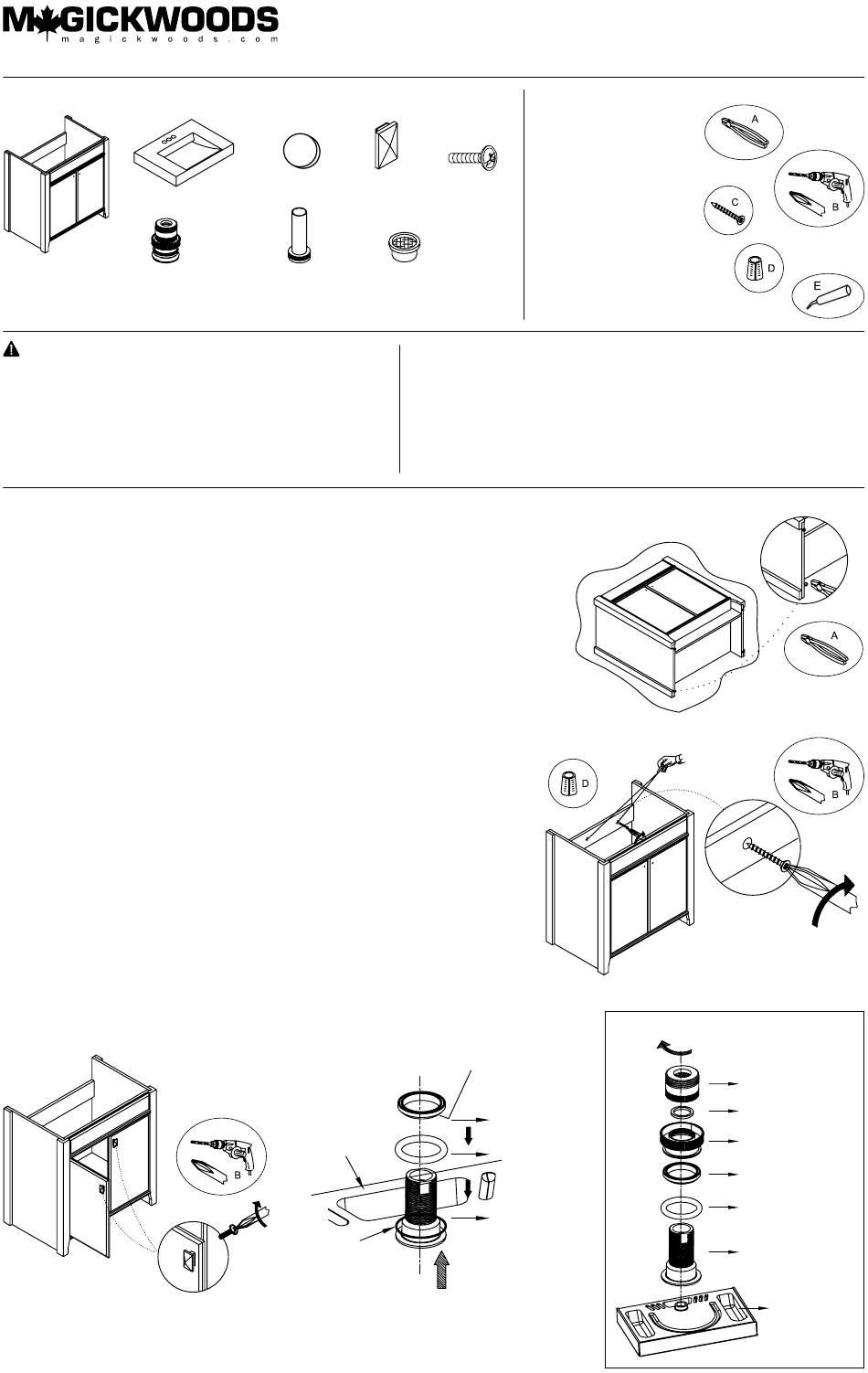

MAGICKWOODS Elements BRISTOL VANITY 49191 Installation Instructions

Questions? Call our customer service department at 1-855-995-5578, 8:30 a.m. - 5 p.m., EST, Monday - Friday or e-mail: contactus@magickwoods.com.
PACKAGE CONTENTS
Base (x 1)
OVERALL DIMENSIONS (WITH SINK):
30-1/8" W x 34-1/4" H x 19-1/8" D
76.51 cm W x 86.99 cm H x 48.57 cm D
WARNINGS & CAUTIONS
WARNING:
Two people are required for safe installation. Take extra precautionary measures to
ensure a secure grip on the vanity base and sink when lifting.
CAUTION:
• The bathroom floor and wall must be finished prior to installation of the base
and sink.
• Do not use water that exceeds temperatures of 140°F/46°C.
• Do not place any sharp or abrasive objects on the bare surface of the sink.
INSTALLATION
1: Removing old vanity (if applicable): 1) Turn off the water supply and drain out. 2) Disconnect the supply lines from
the faucet. 3) Remove the old vanity top and vanity. If the new vanity is not installed immediately, temporarily stuff
a rag into the drain pipes.
2: Using a level, locate any uneven floor and/or wall areas where your vanity will be installed. Unevenness can cause
your vanity to become misaligned resulting in twisting of the cabinet. Repair any uneven areas by reducing high spots
or shimming low spots.
3: Provide sufficient protection on the floor to protect the vanity from damage. Tilt the vanity backwards and remove
the shipping feet from the bottom of the vanity base using a pair of pliers (A - not included). Figure 1.
4: 1) Place the vanity in the desired position taking into account the location of your plumbing. 2) Ensure the vanity
is level front to back and at both sides.
5: Secure the vanity to the wall by inserting (x 2) #8 x 2" screws (C - not included) through the back rail of the vanity.
Figure 2. It is recommended that the vanity be installed to at least one wall stud. If you are unable to locate wall
studs, it is recommended that you use wall anchors (D - not included) to secure the vanity.
6: Attach the (x 2) knobs by using (x 2) 1" screws. Figure 3.
7: 1) Place the sink upside down (provide sufficient protection on the floor to protect the sink from damage).
2) Sit the nylon bush (chamfer face down) and the gasket on the drainer body. Figure 4. 3) Insert the drainer
body through the sink drain hole with the bottom of the drainer body facing upward.
8: Fasten the jamb locknut onto the drainer body threads, turning counter-clockwise and
hand-tighten. Figure 5.
9: 1) Place the washer onto the drainer body over the jamb locknut. 2) Fasten the drain pipe coupler onto the
drainer body threads (overtop of the washer), turning counter-clockwise and hand-tighten. Figure 6.
10: Fasten the tail piece onto the drain pipe coupler threads, turning counter-clockwise and hand-tighten.
Figure 7.
11: Return the sink facing upward and place the sink centered on the vanity base. Figure 8. For additional
stability, clear silicone (E - not included) may be used to secure the sink onto the vanity base (optional).
12: Sit the strainer into the strainer hole located on the top of the sink. Figure 9.
13: Connect the faucet and the remainder of the plumbing components as per the instruction sheets provided
with those items and ensure that there is no leakage. If required, clear silicone (E - not included) can be applied.
Figure 3
Sink (x 1) Bumpers (x 4)
Tail Piece
Sink Drain
(x 1)
Assembly (x 1)
Sink
(Bottom View)
B
Sink Hole
Knobs (x 2) 1" screws (x 2)
Strainer (x 1)
Faucet not included.
CARE & MAINTENANCE
• To maintain the beauty of the furniture finish, avoid placing the vanity in direct sunlight.
• Avoid exposing the vanity to extreme temperatures by installing away from heat and air vents.
• Dust frequently with a clean, soft and dry cloth.
• Wipe away any water or liquid spills on the vanity base immediately with a clean, soft and
dry cloth.
• Clean the sink only with non-abrasive cleaners or mild detergents - do not use powder
cleansers. For extremely stubborn stains, use a small amount of acetone on a cloth and gently
rub out the stain.
Chamfer Face Down
Nylon Bush
Rubber Gasket
Drainer Body
Figure 4
BRISTOL VANITY ENSEMBLE
MODEL 49191 • INSTALLATION INSTRUCTIONS
PREPARATION
Tools required for assembly
(not included):
• pliers (A)
• tape measure
• electric drill with #2 drill bit (B)
• level
• (x 2) #8 x 2" screws (C)
• (x 2) wall anchors - if the
vanity will not be screwed
to wall studs (D)
• silicone (optional) (E)
Estimated installation time:
2-1/2 hours (including removal
of old vanity if applicable)
PARTS FOR SINK DRAIN ASSEMBLY
A
Figure 1
C
B
Figure 2
Drain Pipe Coupler
Washer
Jamb Locknut
Nylon Bush
Rubber Gasket
Drainer Body
Sink (Bottom View)
