- Page 1 400F TV Fresnel LED Luminaire...
- Page 2 5. Terminal block not included. Installation may require advice from a qualified person. Document Number: 400F TV Fresnel LED Luminaires Users Version as of: 24-004-3874-00 Rev1.0 400F TV Fresnel LED Luminaire Installation & User’s Manual ©2024 Signify Group. All rights reserved.
- Page 3 Installation & User’s Manual 400F TV Fresnel LED Luminaires IMPORTANT INFORMATION Warnings and Notices When using electrical equipment basic safety precautions should always be followed including the following: a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS . b Do not use outdoors c Do not mount near gas or electric heaters d Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
-
Page 4: Table Of Contents
TABLE OF CONTENTS PREFACE About this Manual..........................Product Descriptions........................... ACCESSORIES............................... 400F TV Fresnel LED LUMINAIRE OVERVIEW Major Components..........................400F TV Fresnel LED LUMINAIRE LCD Display/Menu System LCD Display/Menu System........................INSTALLATION AND SET UP Power Requirements........................... Connecting Power............................................Connecting 400F TV Fresnel LED Luminaires to AC Power Connecting to the DMX512 Network....................... -
Page 5: Preface
Please read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be downloaded at www.strandlighting.com. Product Descriptions This manual covers the following 400F TV Fresnel LED Luminaire models: 400F TV Fresnel Tungsten P.O. 400F TV Fresnel Tungsten M.O. -
Page 6: 400F Tv Fresnel Led Luminaire Overview

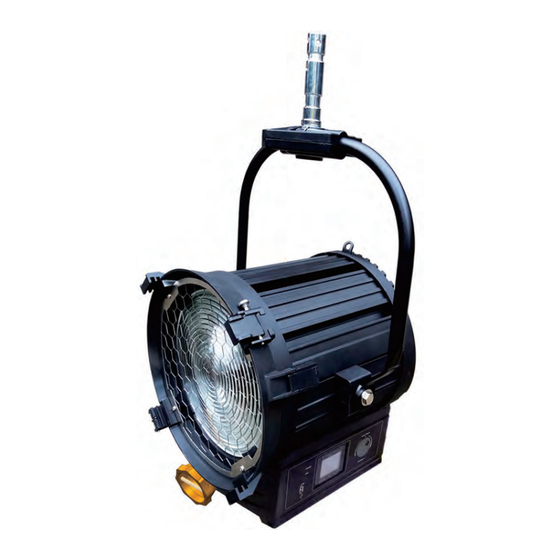

1. 400F TV Fresnel LED Luminaire Components Major Luminaire Components Focus Knob POWER INPUT POWER THRU DMX-512A(RDM) INPUT DMX-512A(RDM) THRU Power indication DMX indication USB Port Wheel for Values & Selection Figure 1: 400F TV Fresnel LED Luminaire Components 400F TV Fresnel LED LUMINAIRE OVERVIEW... -
Page 7: 400F Tv Fresnel Led Luminaire Lcd Display/Menu System
400F TV Fresnel LED Luminaires LCD Display/Menu System Installation & Uer’s Manual LED/Tungsten Menu DMX Start Address Up Button DMX Address 96.0 Square LCD Display Intensity 5600 Int.temp.28℃ Down Button Curves Figure 2: 400F TV Fresnel LED Luminaire LCD Display/Menu System LCD Display/Menu System... -
Page 8: Installation And Set Up Power Requirements
Connecting 400F TV Fresnel LED Luminaires to AC Power on page Connection from the AC output of another 400F TV Fresnel LED Luminaire. When using this method, it is very important not to connect any other type of equipment device WARNING! Power THRU connect is only for next 400F TV Fresnel devices loop through. -
Page 9: Connecting 400F Tv Fresnel Led Luminaires To Ac Power
Input connector is a user supplied accessory to fit your application. Table2 describes how to connect power to your 400F TV Fresnel LED Luminaire Field wiring of the 400F TV Fresnel LED Luminaire is straight forward A total of 3 wires conductors is supplied from the unit The... -
Page 10: Connecting To The Dmx512 Network
DMX connector on the next F TV Fresnel LED Luminaire. DMX-512A(RDM) THRU DMX-512A(RDM) INPUT Figure 4 400F TV Fresnel LED Luminaire DMX512 Input Output Connections " " Note: For more information on DMX512 networking and systems refer to Additional Resources for DMX512 on "... -
Page 11: Mounting Luminaires
Installation & User’s Manual 400F TV Fresnel LED Luminaires 5. Mounting Luminaire The 400F TV Fresnel is provided with two mounts and one safety cable anchor points on the body. The luminaire is designed to accept a variety of mounting hooks, clamps,etc. Simply attach hook, clamp, etc. to the 400F TV Fresnel LED Luminaire mount assembly in the M13 hole. -
Page 12: Operation And Program
Installation & User’s Manual 400F TV Fresnel LED Luminaires OPERATION AND PROGRAMMING 1. LCD Display and Menu System Upon power up the LCD will display the main screen If DMX is enabled the programmed address will appear after power up. LED/Tungsten Menu DMX Start Address... -
Page 13: Menu Structure
LOG.Files Time Set Time Set Exit Exit 9-Set factory default Yes/No 9-Set factory default Yes/No 10-Firmware Version Rev x.xx 10-Firmware Version Rev x.xx xxxxxxxxx 11-RDM UID xxxxxxxxx 11-RDM UID Figure 9: 400F TV Fresnel LED Luminaire Menu Structure Menu Tree... -
Page 14: Parameter Detail
Installation & User’s Manual 400F TV Fresnel LED Luminaires 5. Parameter Detail Table 3: 400F TV Fresnel LED Luminaire parameter detail Parameter Rang detail RDM Support Rang Intensity 0-255 0-255 5600 3200k/5600k DMX Address 1-512 1-512 0-LED 1-Tungsten Response Time... -
Page 15: Button Functions
Installation & User’s Manual 400F TV Fresnel LED Luminaires Direct Function Keys When in local control The 400F TV Fresnel LED Luminaire’s features can be accessed via the on board LCD menu system or via the select buttons: DMX Start Address... -
Page 16: Dimming Curve Selection
Installation & User’s Manual 400F TV Fresnel LED Luminaires Dimming Curve Selection Through the menu you are able to select one of four dimming curves Linear Curve PL_Curve S Curve Square Curve Linear Curve PL Curve DMX Value DMX Value *PL Curve follows the dimming curve of Selecon PL series LED luminaries. -
Page 17: Dmx Control
0-100% Basic 8 bit Table 5 provides DMX channel mapping of all DMX512 control values when the 400F TV Fresnel LED Luminaire is in Basic 8-bit mode (as set by the luminaire’s menu system). Table 5 400F TV Fresnel LED Luminaire DMX Channel Mapping Basic 8 Bit Mode... -
Page 18: 400F Tv Fresnel Led Luminaire Rdm Parameter Ids
Installation & User’s Manual 400F TV Fresnel LED Luminaires 400F TV Fresnel LED Luminaire RDM Parameter IDs The following tables outline and describe all the RDM parameters IDs associated with 400F TV Fresnel LED Luminaires. Table 7: 400F TV Fresnel Day Light LED Luminaire RDM Parameter IDS... - Page 19 Installation & User’s Manual 400F TV Fresnel LED Luminaires Table 8: 400F TV Fresnel Day Light LED Luminaire RDM Parameter IDS RDM Parameter IDs Value Comment Implemented Allowed Allowed Category DMX512 Setup DMX_PERSONALITY 0x00E0 0x00E1 DMX_PERSONALITY_DESCRIPTION *Required if device uses a DMX_START_ADDRESS 0x00F0 DMX Slot...
- Page 20 Installation & User’s Manual 400F TV Fresnel LED Luminaires Table 9: 400F TV Fresnel Day Light LED Luminaire RDM Manufacturer Specific PIDS For Root Device Manufacturer Specific PIDs Manufacturer Defined PIDS range is 0x8000-0xffdf. See Table A-3, ANSI EI.20-2010 RDM Parameter TYPE LENGTH UNIT PREFIX MIN MAX DEFAULT DESCRIPTION...
-
Page 21: 400F Tv Fresnel 3200K Tungsten Rdm Parameter Ids
Installation & User’s Manual 400F TV Fresnel LED Luminaires Table 10: 400F TV Fresnel Tungsten LED Luminaire RDM Parameter IDS Fresnel Tungsten 400F LSB of MSB of ESTA LSB of ESTA MSB of LSB of MSB of Unique Seq. Unique Seq. Unique Seq. - Page 22 Installation & User’s Manual 400F TV Fresnel LED Luminaires Table 11 400F TV Fresnel Tungsten LED Luminaire RDM Parameters IDS RDM Parameter IDs Value Comment Implemented Allowed Allowed Category DMX512 Setup DMX_PERSONALITY 0x00E0 0x00E1 DMX_PERSONALITY_DESCRIPTION *Required if device uses a DMX_START_ADDRESS 0x00F0 DMX Slot...
- Page 23 Installation & User’s Manual 400F TV Fresnel LED Luminaires Table 12: 400F TV Fresnel Tungsten LED Luminaire RDM Manufacturer Specific PIDS For Root Device Manufacturer Specific PIDs Manufacturer Defined PIDS range is 0x8000-0xffdf. See Table A-3, ANSI EI.20-2010 RDM Parameter TYPE LENGTH UNIT PREFIX MIN MAX DEFAULT DESCRIPTION...
-
Page 24: Maintenance And Care Special Cleaning Care Instruction
Lint or powder free gloves Reagent grade isopropyl alcohol* A mild soap solution. Note: *Reagent grade isopropyl alcohol is good to use on the 400F TV Fresnel LED Luminaire plastic optics with anti-reflection coating If the lens is still dirty after using isopropyl alcohol... -
Page 25: Features And Specifications 400F Tv Fresnel Technical Specification
Installation & User’s Manual 400F TV Fresnel LED Luminaires TECHNICAL SPECIFICATIONS 1. 400F TV Fresnel LED Luminaire Operational Specifications Zoom Range: 12-45 deg(4&1/2Turns) Light Output: 8300 lx approx. (5m) for Tungsten 9041 lx approx. (5m) for Day Light Color Temperature:... - Page 26 Installation & User’s Manual 400F TV Fresnel LED Luminaires 400F TV Fresnel LED Luminaire Dimensions Figure 11: 400F TV Fresnel M.O. Version Figure 12 400F TV Fresnel P.O. Version TECHNICAL SPECIFICATIONS...
- Page 27 The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. Data subject to change.
