Agriframes 30174-TBK Assembly Instructions

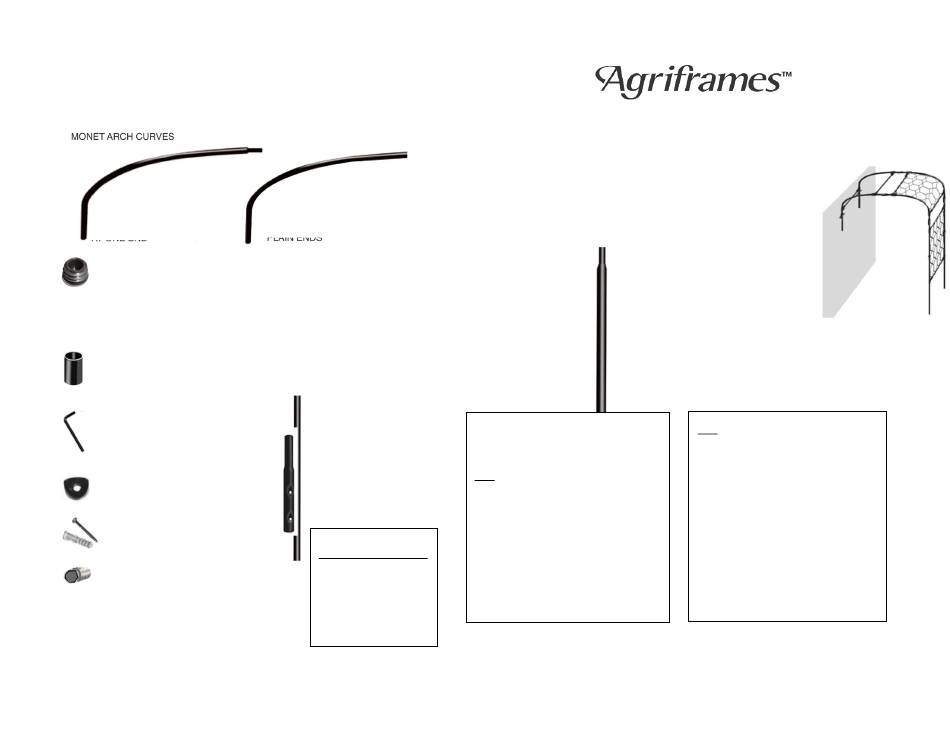

PARTS LIST
In the unlikely event you are missing any components please call 0117 934 1790 and state the name of the
product, size and description of the item. i.e. Classic Extra Wall Arch Matt Black 2.1m, End Plug.
2 X REDUCED AT
ONE END
4 X END PLUGS
8 X MOISTURE
SEALS
1 X ALLEN KEY
4 X SADDLE WASHERS
4 X SCREWS & RAWLPLUGS
12 X GRUB SCREWS IN
RING CLAMPS &
SPARES IN A BAG
2 X PLAIN ENDS
4 X UPRIGHTS (ONE
REDUCED END)
1 X HOLE MAKER
2 X WALL
MOUNTING TUBES
* Optional Lattice & Ties
Arch Cells Quantity
1.2m 4 x 3 3
1.5m 4 x 3 3
1.8m 4 x 3 1
5 x 3 2
Assembly Instructions for Classic Wall Arch Matt Black
Product Code: 30174-TBK, 30175-TBK & 30176-TBK
Please read the assembly instructions
carefully prior to construction.
Tips:
Positioning of the Spacer Bars
In many cases the position of the Spacer
Bars is down to personal preference.
However, if you have the lattice option you
will need to leave the correct distance
between bars.
On the bottom section the Spacer Bars need
to be at least 3 inches above the base of the
tube.
Tips:
Spacer Bars
Before positioning the Spacer Bars on the
uprights, half screw in the grub screws to
the ring clamps on the spacer bars, to
reduce the risk of losing the screws.
Once correctly positioned tighten the grub
screw to secure the spacer bar to the
uprights.
Lattice Panel Option
For illustrative purposes we have only
shown one side fixed with the lattice
panels. Attach panels to both sides as you
proceed.
