40540-TBK
Description:

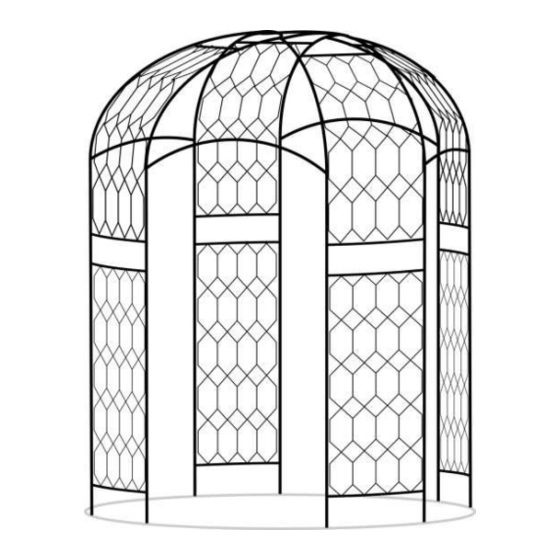

Classic Extra Round Gazebo Matt Black 3m
Quantity
8
8
4
4
16
1
Quantity
8
64
Code
Description
AGR-A73/002
Spare Grub screws(in a separate bag)
AGR-A610/38
1" Moisture Seal
AGR-A610/08
1"EndPlug
AGR-A70/006 &
3mmAllenKey & 6mm Allen Key
AGR-A70/009
Op to Parallel Joint Coated - Two Halves with
AGR-A622/07
Nut & Bolt
Issues:
If you are experiencing any issues with your Agriframes product please contact our customer services team on0117 934 1790
and quote your order reference.
WARNING: Contains small parts, tools and plastic bags. Keep children away until the unit is assembled and everything is cleared
away.
NOTE: The card, paper sack, and polythene bags are recyclable- please dispose of carefully.
MISSING PARTS PROCEDURE: Please call our customer service team on0117 934 1790 and quote your order reference and
quote the missing part. E.g. ASO-----, 2 uprights missing.
Agriframes, Journal house, Hartcliffe Way, Bristol, BS3 5RJ
84" Uprights with one reduced end
Round Curves-(one reduced end)
Top semicircular Curves with short Straights(two plain ends)
Stafford Hoop Halves(plain ends)
Spacer Bars with Ring Clamps
Optional Component
Lattice Panels(5x 4)
Order line: 01179341790, Fax: 01179341791
Orderon-line:www.agriframes.co.uk
Component
Hole Maker
Cable Ties
Drawings
Quantity
1Bag
16
16
1
12
