Agriframes 39100-TBK Assembly Instructions

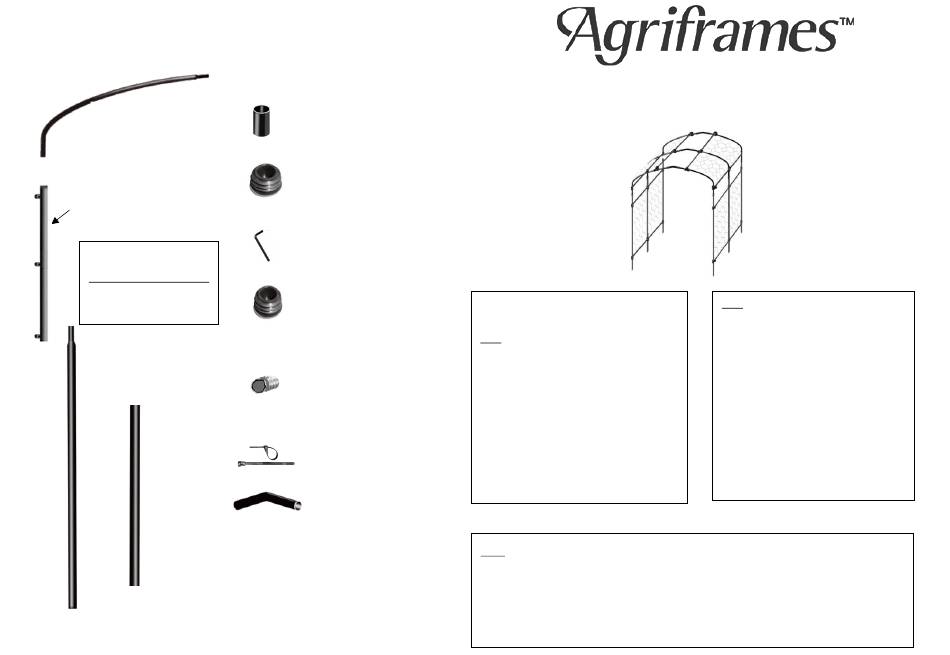

PARTS LIST
In the unlikely event you are missing any components please call 0117 934 1790 and state the name of the
product, size and description of the item. i.e. Classic Extra Vine Arch Matt Black, 1 x End Plug.
6 X VINE ARCH
CURVES WITH ONE
REDUCED END
8 X VINE ARCH CROSS POLES
WITH 3 RING CLAMPS
Lattice & Ties
*
Arch Cells Quantity
1.8m 5 x 4 4
4 x 4 4
6 X UPRIGHTS
WITH ONE
REDUCED END
1 X HOLE
MAKER
AGRIFRAMES, Journal House, Hartcliffe Way, Bristol, BS3 5RJ
ORDERS (0)117 934 1790 FAX (0)117 934 1791 ORDER ONLINE www.agriframes.co.uk
12 X MOISTURE
SEALS
6 X LARGE END
PLUGS
1 X ALLEN KEY
16 X SMALL END
Please read the assembly instructions
PLUGS
carefully prior to construction.
Tips:
Positioning of the Cross Poles
24 X GRUB
In many cases the position of the Cross Poles
SCREWS (IN THE
is down to personal preference. However, if
RING CLAMPS) AND
you have the lattice option you will need to
SPARES IN A BAG
leave the correct distance between bars.
On the bottom section the Cross Poles need
100 X CABLE TIES to be at least 3 inches above the base of the
tube.
3 X ROOF CONNECTOR
Issues:
If you are experiencing any issues with your Agriframes product please contact our customer services team
on 0117 934 1790 and quote your order reference.
WARNING: Contains small parts, tools and plastic bags. Keep children away until the unit is assembled and
everything is cleared away.
NOTE: The card, paper sack, and polythene bags are recyclable - please dispose of carefully
MISSING PARTS PROCEDURE: Please call our customer service team on 0117 934 1790 and quote your
order reference and quote the missing part. E.g. ASO-----, 2 uprights missing.
Assembly Instructions for Classic Extra Vine Arch - Matt Black
Product Code: 39100-TBK
Tips:
Cross Poles
Before positioning the Cross Poles on the
uprights, half screw in the grub screws to
the ring clamps on the spacer bars, to
reduce the risk of losing the screws.
Once correctly positioned tighten the
grub screw to secure the spacer bar to
the uprights.
Lattice Panel
For illustrative purposes we have only
shown one side fixed with the lattice
panels. Attach panels to both sides as you
proceed.
