Jofran 1900-FP6032 Assembly Instructions & Parts Identification

j
OFRAN
Q'TY
NO. CODE
1 1900-FPP07L 1 PC
2 1900-FPP07R 1 PC
1900-FPP04
3 2 PCS
4 1900-FPP08 2 PCS
5 1900-FPP08P 8 PCS
Step 1:
Carefully slide the Firebox insert carton out of the console
from the back. Remove the Firebox insert from the carton
and place on a clean, protected surface.
Step 2:
Insert the Firebox into the back of the cabinet.
Attach the support bracket to secure the Firebox
from behind the cabinet. Refer to the separate
booklet for the fireplace insert for complete instructions.
MADE IN VIETNAM
INC.
DESCRIPTION
LEFT SIDE FACING DOOR
RIGHT SIDE FACING DOOR
DOOR PULL W/ SCREW
SHELF
SHELF PIN
10
9
ASSEMBLY INSTRUCTIONS &
PARTS IDENTIFICATION
FIREPLACE UNIT WITH LOGSET
KEY COMPONENTS
NO. CODE
6 1900-FPP07H
7 1900-FPP01D
8
1900P01AT
9
1900-FPP01L
10 1900-FPP01B
Step 3:
Remove the door pulls from the backside of the
door and attach them to the front side of the door with a
Phillips head screwdriver, as shown in the diagram.
6
1
5
Step 4:
Install the Anti-Tip Hardware to avoid the
possibility of the furniture tipping and injury.
8

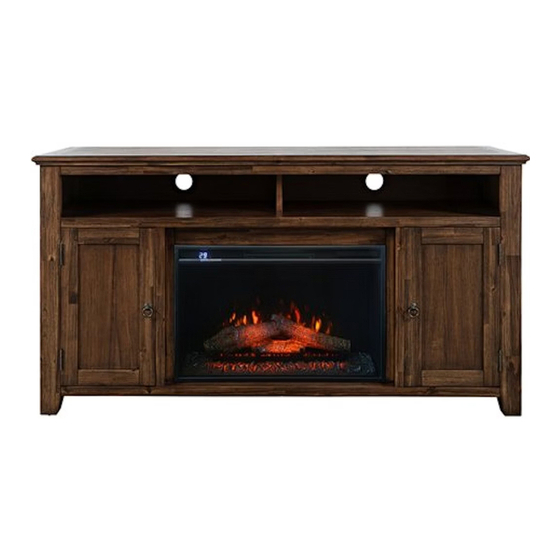

MODEL #1900-FP6032
BAKERSFIELD
Q'TY
DESCRIPTION
4 PCS
DOOR HINGE
2 PCS
DOOR CATCH
1 KIT ANIT-TIP KIT
6 PCS LEVELERS
1 PC SUPPORT BLOCK
4
3
7
2
3
not included
