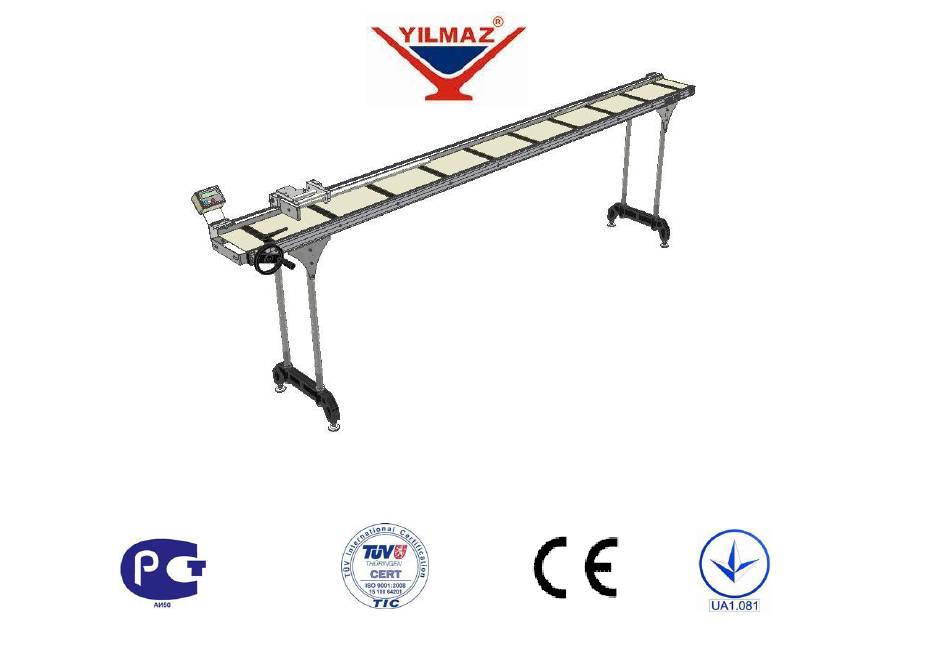

- Page 1 DKN 300 / 450 / 600 DİJİTAL ÖLÇÜ OKUYUCULU KONVEYÖR / DIGITAL DIMENSION READER CONVEYOR ИЗМЕРИТЕЛЬНЫЙ РОЛЬГАНГ СО СЧИТЫВАЮЩИМ УСТРОЙСТВОМ KULLANICI EL KİTABI – USER MANUAL - РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 04-2009-001 Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
- Page 2 WARRANTY CERTIFICATE : YILMAZ PVC ve ALÜMİNYUM İŞLEME MAKİNELERİ MANUFACTURED SAN. TİC LTD. ŞTİ ADRESS : TURGUT ÖZAL BULVARI NO :173 TAŞDELEN 34788 ÇEKMEKÖY / İSTANBUL - TÜRKİYE TELEPHONE : 0216 312 28 28 PBX TELEFAX : 0216 484 42 88...
- Page 3 Defects due to use of the machine in contrary with the features described in the machine’s user’s manual are excluded from the warranty. In connection with any issues of the warranty certificate the customer may contact the General Directorate of the Consumer and Competition Protection of the Ministry of Industry and Trade Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
-
Page 4: Table Of Contents
2. Description and purpose of use 2.1. Definition 2.2. Technical features 2.3. Dimesions 2.4. General views 3. Installation 4. Use of Digital dimension reader 4.1. Basic functions 4.2 Parameter settings 4.3 Parameter list 4.4 Battery change Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300... -
Page 5: General Information
In case of any technical problem please contact your nearest YILMAZ dealer, or YILMAZ head office through the above mentioned phone, fax or e-mail address. Technical labels with the model description of the machine are fixed onto the front side of each machine. - Page 6 * Machine model * Machine’s serial number * Description of the machine fault * Average daily operation period * Voltage and frequency * Date of purchase * Name of dealer where machine was purchased Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
-
Page 7: Description And Purpose Of Use
Max.used with : 200 mm. Ø Carrying capacity : 9 kg/m. Ø Min cutting lenght : 5 mm Ø DKN 300 standard conveyor lenght 3 meter, Ø DKN 450 4,5 meter, DKN 600 6 meter (optional) 2.2. TECHNICAL FEATURES TEKNİK ÖZELLİKLER TECHNICAL FEATURES... - Page 8 530 mm 2.3 DIMENSIONS DKN 300 : 3035 mm DKN 450 : 4535 mm DKN 600 : 6035 mm 1070 mm FIGURE 1 Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
-
Page 9: General Views
2.4 GENERAL VIEWS STOCK CODE 2TU011441-0331 2TU012010-0003 3UA040030-0019 1EL200000-0030 3UA010030-0022 2TU012510-0001 1SC170000-0007 2TU011110-0845 FIGURE 2 Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300... -
Page 10: Installation
The dispatch and delivery of product is doing with wooden package.The parts of conveyor are demonte in wooden package. 3.1. Please open the wooden package and get out the parts attentively. 3.2. Firstly doing montage of foot group (Figure 2 NO.6,7,8) Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300... - Page 11 3.3. Please contact the digitial dimension reader as Figure (Figure 2 NO.4 ) 3.4. Please install the guide lever (Volant – Figure 2 No.2) and crimp handle (Figure 3 NO 3.) as Figure. Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
- Page 12 3.6. To connect the conveyor to machine you have requested,use the output flange plate (Figure 2.NO.1).To adjust the height and uniformity of conveyor,please use the bolts on conveyor’s foot (Figure 2 NO.2) and feet of table(Figure 2 NO:7) Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
-
Page 13: Use Of Digital Dimension Reader
„0“ and also "INC" appears in the display. With a renewed pressing of Incr/Abs the display switches back to “ansolute” measurement and teh display shows the real absolute value again and “ ABS” also. Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300... - Page 14 Aygıt ofseti Switches over betwee three adjustable Tool Offsets. These can be depostided in the registers P10/11/12. The display appears (right above): The selectet tool offset will be added to the actual value. Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
-
Page 15: Parameter Settings
4) Adjust the desired value by using the Incr/Abs button 5) Press F to select the next parameter Repeat No. 2)... 4) for the next parameter 6) Press F for 3 seconds -à The display shows the actual value again Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300... - Page 16 : LSB = 1/64 inch Press SET for two times : LSB = 1/32 inch Press SET for three times : LSB = 1/16 inch Press SET for four times : LSB = 0.001 inch Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
-
Page 17: Parameter List
P 03 / Decimal place (default setting = 1) YILMAZ (1) 0…3 (for mm operation only) P 04 / Auto power off time (default setting = 10 s) YILMAZ (90 s) X X = 0…99 seconds (0 = standby mode disabled) -
Page 18: Battery Change
(like shown on the photo). Useful are commercial battery types, size C, 1.5 V) with good quality. All values and settings remains in case of changing the batteries. Please pay attention to the correct polarity ! The polarity is marked inside the housing. Yılmaz PVC ve Alm.İşleme Mak.San.Tic.Ltd.Şti. DKN 300...
