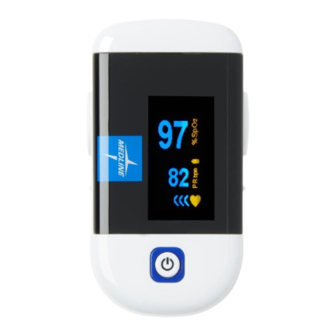

Medline HCSM70T Manual

Soft-Touch Finger Pulse Oximeter
with Bluetooth
This manual describes the Pulse Oximeter's operation, features, functions, specifications, usage, repair,
maintenance and storage; as well as warnings and safety procedures to protect the user and equipment.
Indications For Use
The Fingertip Pulse Oximeter is a handheld non-invasive device intended for spot-checking of oxygen
saturation of arterial hemoglobin (SpO2) and Pulse Rate of adult. This device is solely for use with sporting and
aviation activities.
Contraindications
This device is not intended for continuous monitoring.
Precautions for Use
Please read the User Manual carefully before using this product. The User Manual describes operating
procedures that should be strictly followed. Failure to follow the User Manual may cause measuring
abnormality, equipment damage and human injury. The manufacturer is NOT responsible for the safety,
reliability and performance issues and any monitoring abnormality, human injury and equipment damage due
to users' negligence of the operation instructions. The manufacturer's warranty service does not cover such
faults.
This product is designed for ongoing, multiple-patient usage with an operating life of 5 years.
If you have any questions regarding to the use of this product, please call 1-800-MEDLINE.
Cautions
ƒ Before use, carefully read the manual.
ƒ Operation of the fingertip pulse oximeter may be affected by the use of an electrosurgical unit (ESU).
ƒ The fingertip pulse oximeter must be able to measure the pulse properly to obtain an accurate SpO2
measurement. Verify that nothing is hindering the pulse measurement before relying on the SpO2
measurement.
ƒ Do not use the fingertip pulse oximeter in an MRI or CT environment.
ƒ Do not use the fingertip pulse oximeter in situations where alarms are required. The device has no alarms. It
is not for continuous monitoring.
ƒ Do not use the fingertip pulse oximeter in an explosive atmosphere.
ƒ The fingertip pulse oximeter is intended only as an adjunct in patient assessment. It must be used in
conjunction with other methods of assessing clinical signs and symptoms.
ƒ In order to ensure correct sensor alignment and skin integrity, the maximum application time at a single site
for our device should be less than half an hour.
ƒ Do not sterilize the device using autoclaving, ethylene oxide sterilizing, or immersing the device in liquid. The
device is not intended for sterilization.
ƒ Follow local ordinances and recycling instructions regarding disposal or recycling of the device and device
components, including batteries.
ƒ This equipment complies with IEC 60601-1-2:2014 for electromagnetic compatibility for medical electrical
equipment and/or systems. However, because of the proliferation of radio-frequency transmitting
equipment and other sources of electrical noise in healthcare and other environments, it is possible that
high levels of such interference due to close proximity or strength of a source might disrupt the performance
of this device.
ƒ Portable and mobile RF communications equipment can affect medical electrical equipment
ƒ This equipment is not intended for use during patient transport outside the healthcare facility.
ƒ This equipment should not be used adjacent to or stacked with other equipment.
ƒ It may be unsafe to:
—use accessories, detachable parts and materials not described in the instructions for use
—interconnect this equipment with other equipment not described in the instructions for use
—disassemble, repair or modify the equipment
ƒ These materials that contact with the patient's skin contain medical silicone and ABS plastic enclosure are
all pass the ISO10993-5 Tests for in vitro cytotoxicity and ISO10993-10 Tests for irritation and delayed-type
hypersensitivity.
Product Features
1. Simple to operate and convenient to carry.
2. Small volume, light weight and low power consumption.
3. Dual color OLED displays SpO2, PR, PI (Perfusion Index), Pulse bar, and waveform.
4. Seven display modes
5. Level 1-10 adjustable brightness.
6. Two pcs AAA-size alkaline batteries; real-time battery status indication.
7. The device automatically shuts off after no operation in 8 seconds when "finger out" displays.
8. Multiple-patient reusability.
Instructions
1. Install two AAA batteries according to the Battery Installation instructions.
2. Place one of your fingers into the rubber opening of the pulse oximeter.
3. Press the switch button one time on front panel to turn the pulse oximeter on.
4. Keep your hands still for the reading. Do not shake your finger during the test. It is recommended that you
do not move your body while taking a reading.
5. Read the data from the display screen.

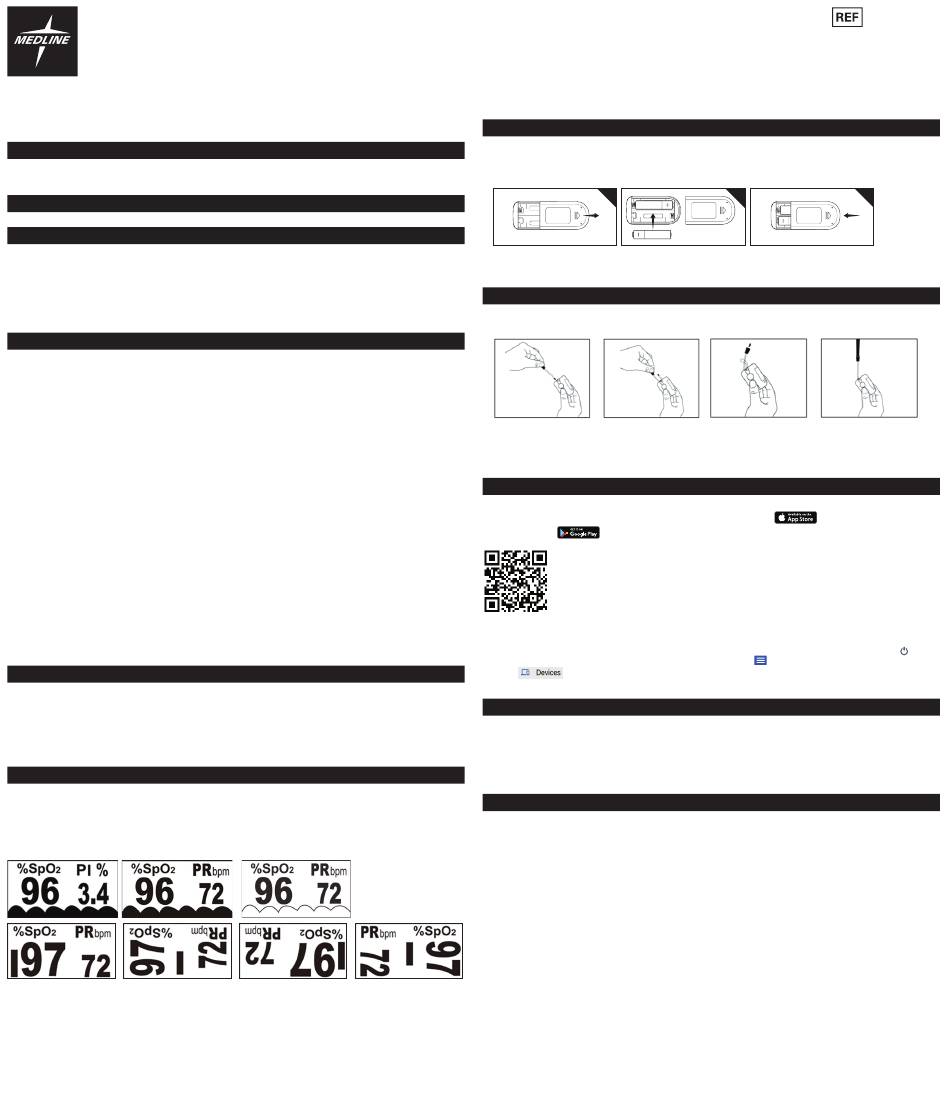

6. The display modes are as follows.
Notes:
ƒ The pulse bar less than 30% indicates signal inadequacy and the displayed SpO2 or pulse rate value is
potentially incorrect.
ƒ If the screen displays "?", it means the signal is unstable, please keep your hands still and retry.
ƒ PI means Perfusion Index.
Battery Installation
1. Slide the battery door cover horizontally along the arrow shown as the picture.
2. Install two AAA batteries into the battery compartment. Match the plus (+) and minus (-) signs in the
compartment. If the polarities are not matched, damage may be caused to the oximeter.
3. Close the battery door cover.
1
Notes:
ƒ Please remove the batteries if the pulse oximeter will not be used for long periods of time.
ƒ Please replace the battery when the power indicator starts flickering.
Lanyard Use
1. Thread thinner end of the lanyard through the loop.
2. Thread thicker end of the lanyard through the threaded end before pulling it tightly.
Warnings!
ƒ Keep the oximeter away from young children. Small items such as the battery door, battery, and lanyard are
choking hazards.
ƒ Do not hang the lanyard from the device's electrical wire.
ƒ Please notice that the lanyard which is tied to the oximeter may cause strangulation due to excessive length.
Pairing Pulse Oximeter with Your Smart Device
Download the Medline Health App
Download to your smart device free of charge via the Apple App Store
Google Play Store , or use the QR code below.
ƒ Open the Medline Health App once downloaded.
ƒ Register or sign-in: First time users will need to register and enter personal information
ƒ Pair device to Medline Health App: Make sure the Pulse Oximeter is powered "ON" by pressing the
on the front of the pulse oximeter device. Select the menu icon
press . On the Devices screen press "Pulse Oximeter". Next, follow the in-app instructions to
complete the paring process.
Using the Device
ƒ Once the pairing process is complete, open the Medline Health App. If you have not paired the Pulse
Oximeter to your smart device, please refer to instructions "Pairing Pulse Oximeter with Your Smart Device"
ƒ Blood oxygenation (SpO2) and pulse rate (BPM) will appear on the device screen and be sent wirelessly to
the Medline Health App. Results will display automatically if the app is open, or the next time the app is
opened.
For technical support using the Medline Health App, contact 1-800-MEDLINE.
Maintenance and Storage
1. Replace the batteries in a timely manner when low voltage lamp is lighted.
2. Clean surface of the fingertip oximeter before it is used in diagnosis for patients.
3. Remove the batteries if the oximeter is not operated for a long time.
4. It is best to store the product in -25~+70 and ≤93% humidity.
5 Keep in a dry place. Extreme moisture may affect oximeter lifetime and may cause damage.
6. Dispose of battery properly; follow any applicable local battery disposal laws.
Cleaning the fingertip pulse oximeter
Please use medical alcohol to clean the silicone that touches the finger inside of oximeter with a soft cloth
dampened with 70% isopropyl alcohol. Also clean the finger being tested using alcohol before and after each
test. Do not pour or spray liquids onto the oximeter, and do not allow any liquid to enter any openings in the
device. Allow the oximeter to dry thoroughly before reuse. The fingertip pulse oximeter requires no routine
calibration or maintenance other than replacement of batteries. The use life of the device is five years when
it is used for 15 measurements every day and 10 minutes per one measurement. Stop using and contact local
service center if one of the following cases occurs:
ƒ An error in the Possible Problems and solutions is displayed on screen.
ƒ The oximeter cannot be powered on in any case and not due to low battery power.
ƒ There is a crack on the oximeter or damage to the display resulting in readings that cannot be identified; the
spring fails to hold the device in place; or the key is unresponsive or unavailable.
Disinfecting
The applied parts touching the patient's body are required to be disinfected once after each use. The
recommended disinfectants include: ethanol 70%, isopropanol 70%, glutaraldehyde-type 2% liquid
disinfectants.
Disinfection may cause damage to the equipment and is therefore not recommended for this pulse oximeter
unless otherwise indicated in your hospital's servicing schedule. Clean the pulse oximeter before disinfecting it.
CAUTION: Never use ETO or formaldehyde for disinfection.
HCSM70T
2 3
,
button
in the top left corner of the app, then
