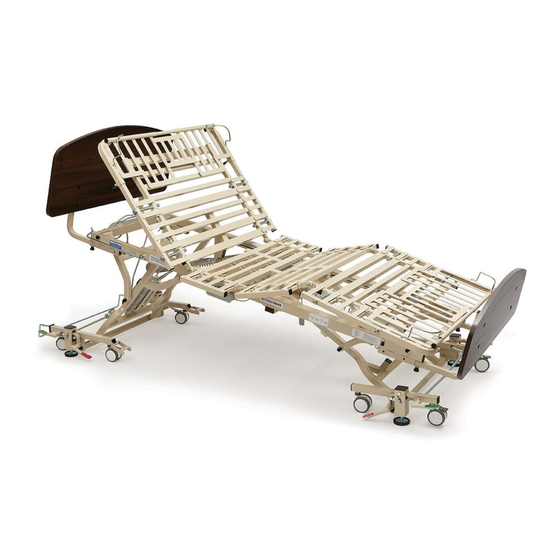

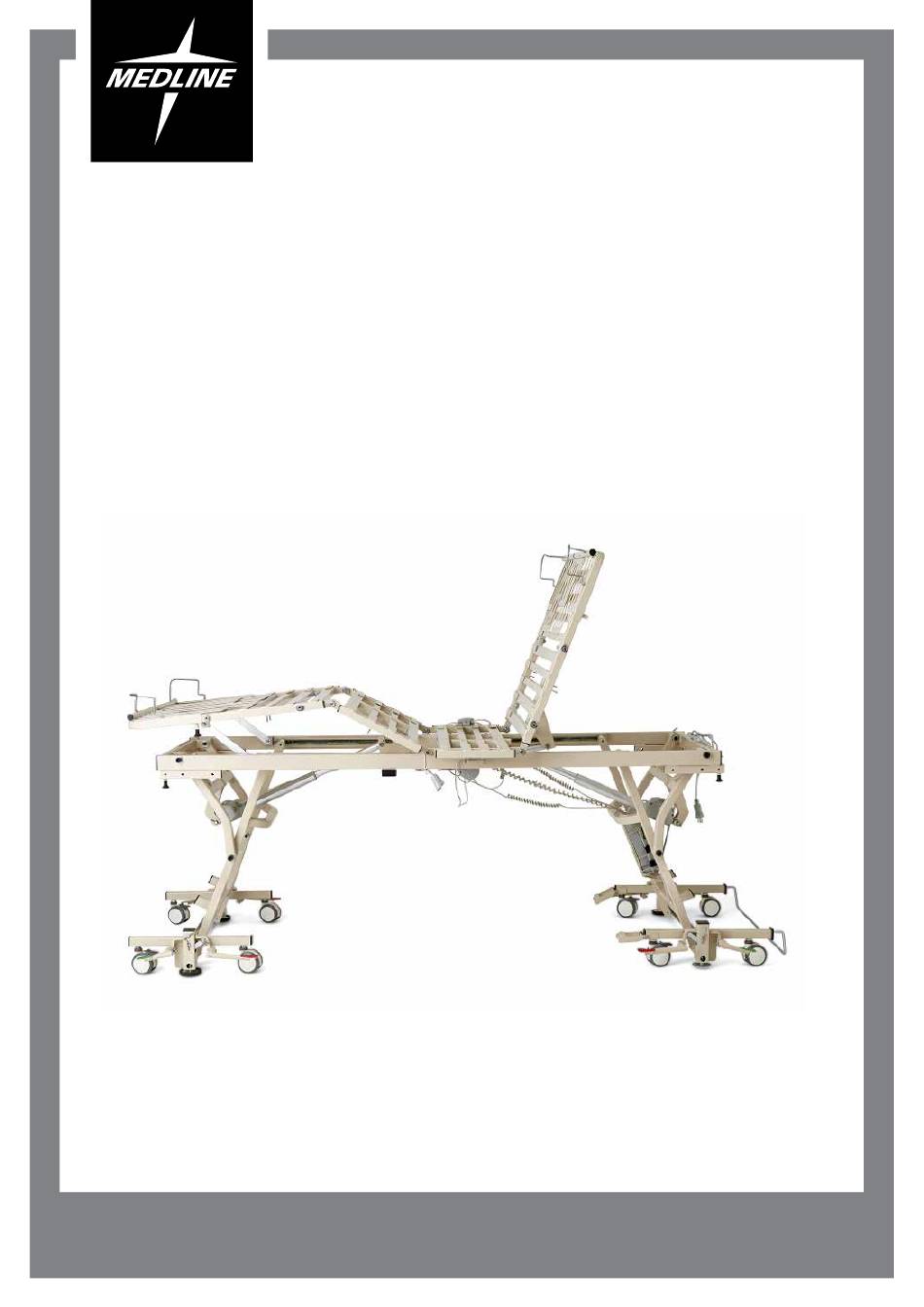

- Page 1 OPERATION AND MAINTENANCE MANUAL Alterra MAXX Long Term Care Bed This product is not made with natural rubber latex. Packaging / Handling Instructions see Page 8. FCEALTMAXX...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ENTRAPMENT ......................... Page 3 Summary of FDA’s Dimensional Recommendations ............Page 4 SPECIAL NOTES AND WARNINGS ..................Page 5 SAFETY SUMMARY AND OPERATING INFORMATION ............Page 6 SPECIFICATIONS ........................Page 7 LOCATING THE SERIAL NUMBER ..................Page 7 PACKAGING AND HANDLING .................... -
Page 3: Entrapment
FDA has not completed harmonization with the measurements in this IEC document. The Medline side rails listed above does meet the dimensional requirements for the Zone 6 area that are defined by IEC60601. -
Page 4: Summary Of Fda's Dimensional Recommendations
SUMMARy OF FDA’S DIMENSIONAL RECOMMENDATIONS Key zones of the bed Dimensions Gaps within the rail (Zone 1) <120 mm (< 4 3/4 “) Under the rail, between rail < 120 mm (< 4 3/4 “) supports or next to a single rail support (Zone 2) Between rail and mattress <120 mm (<... -
Page 5: Special Notes And Warnings
The information in this document is subject to change without notice. Check all parts for shipping damage and test before using. DO NOT USE IF DAMAGED. Contact Medline Industries Inc. Customer Service (1-800-MEDLINE) and the freight carrier for further instruction. -
Page 6: Safety Summary And Operating Information
SAFETy SUMMARy AND OPERATING INFORMATION • After installation and before use, ensure all attached hardware is securely tightened • Hand pendant cord must be routed and secured properly to ensure cord does not become entangled, pinched, or severed during normal bed operation. • Keep all moving parts free from obstruction (i.e. blankets/sheets, heating blankets/pads, tubing, wiring, etc.) or with any other products that use electric cords which could get tangled around the bed, side rails or legs during operation of bed. •... -
Page 7: Specifications
ELECTRICAL SPECIFICATIONS Power: 120 V.A.C., 2A, 60HZ Duty Cycle: 10% Max. (2 min. on./18 min off) LOCATING ThE SERIAL NUMBER • The serial number label is located on the center of the left side bed frame. • Please have the serial number and model number of the bed available when calling Medline Customer Service for parts and/or troubleshooting. 1-800-MEDLINE (633-5463) | medline.com 7... -
Page 8: Packaging And Handling
Place it on level ground next to the carton. ** If at this point, you discover concealed damage, immediately contact Medline Customer Service and take photographs to document the damage for the freight claim. -
Page 9: Installing Optional Head And Footboards
Tools Required: Philips Screw Driver, Rubber Mallet Materials Required: Head and Footboards The FCEALTMAXX bed comes with the necessary hardware to mount head/footboards to the frame. When ordering head/footboards from Medline, they come with four pre-drilled mounting holes. hEADBOARD INSTALLATION 1. -
Page 10: Installing Optional Assist Rails
FCE1232RSRN, FCE1232RSRXT, FCEQRSIDE, or FCE1232ABN 1. 1. The side rail mounting rods come pre-installed on the head and foot sections of the Alterra MAXX bed. 2. Tighten each mounting rod using a 5mm Allen wrench and a ½” open end wrench. -
Page 11: Bed Operation
The hand pendant can be plugged into either side of the bed. To properly connect the pendant, align the arrows on the bed’s connection and the pendant plug; firmly press the two pieces together, then flip down the retaining lock. 1-800-MEDLINE (633-5463) | medline.com 11... -
Page 12: Electronics
The bed has a rolling base that allows it to be rolled or locked at any height. The Alterra MAXX bed is equipped with TWO brakes locks; one on the head end of the bed and one on the foot end. -
Page 13: Battery Backup
8. Secure cable in place with zip-ties 9. Reconnect the battery backup cable into the control box port. 10. Replace the control box cover. 11. Reconnect AC power 1-800-MEDLINE (633-5463) | medline.com 13... - Page 14 UNDER BED LIGhTING The Alterra MAXX comes standard with LED lighting located under the center of the bed deck on both sides. The LED lighting can be turned on using the hand pendant. The LED lighting can assist with illuminating the surrounding areas of the bed when transitioning in/out of the bed.
- Page 15 Prior to putting the bed in use, ensure that each bed deck extension piece is locked in place. CASTER GUIDES The Alterra MAXX is equipped with two swing down caster positioning guides located at the head end of the bed. The caster positioning guides will keep the casters straight when flipped down, to eliminate one swivel point and allow for ease of bed movement.
- Page 16 SECTION kICkSTAND The Alterra MAXX is equipped with a kickstand for holding up the head section of the bed for easy access to the power cord and bed control box. NEVER use the kickstand while anyone is in the bed. The kickstand is used for Maintenance ONLY.
-
Page 17: Troubleshooting
Is the power cord Replace power cord damaged? Grinding noise Actuator gear is Replace actuator Actuator gear is heard from one of stripped, replace stripped the actuators actuator 1-800-MEDLINE (633-5463) | medline.com 17... - Page 18 Replace control box ment occurs IF USE OF THIS TROUBLE SHOOTING GUIDE DOES NOT CORRECT THE PROBLEM, PLEASE CALL MEDLINE TECHNICAL SUPPORT AT 1-800-MEDLINE. CAUTION SERVICE / MAINTENANCE PERSONNEL The bed is a heavy piece of equipment. It is strongly recommended that any servicing or maintenance of the bed be performed by two or more personnel.
-
Page 19: Acuator Replacement
6. Plug in the actuator cable. 7. With at least TWO people, carefully return the bed to the upright position. 8. Reconnect AC power. 1-800-MEDLINE (633-5463) | medline.com 19... -
Page 20: Bed Schematic
9. Re synchronize the self leveling hi low motors by lowering the bed to its lowest position and holding the elevation down button on the hand pendant an additional 5 seconds after the bed has reached its lowest elevation 10. Test the bed by raising and lowering elevation. NOTE: When replacing head and foot actuators, special care needs t be taken to secure all wiring with cable ties as necessary to reduce strain from the actuator cables. -
Page 21: Replacement Parts
FCEMAXX11 Deck, Foot FCEMAXX12 Extension Kit, 1 set (both Head Section sides) includes the width and length exten- sion pieces FCEMAXX13 Extension Kit, 1 set (both Seat Section sides) includes the width and length exten- sion pieces 1-800-MEDLINE (633-5463) | medline.com 21... - Page 22 Indicator Indicator/Image Item # Description Qty/Unit of Measure FCEMAXX14 Extension Kit, 1 set (both Thigh Sect sides) includes the width and length exten- sion pieces FCEMAXX15 Extension Kit, 1 set (both Foot Section sides) includes the width and length exten- sion pieces FCEMAXX16 Mounting Rods, Shown...
- Page 23 FCEMAXX28 Battery Backup Shown FCEMAXX29 Lights, LED, Shown Under bed FCEMAXX30 Hand Pendant, 5 Shown function Not Shown FCEMAXX31 Cord, Power Shown FCEMAXX32 T Cable Shown FCEMAXX36 Junction Box, Shown Light Optional FCEMAXX37 Staff Control Kit 1 1-800-MEDLINE (633-5463) | medline.com 23...
-
Page 24: Maintenance
ADDITIONAL ACCESSORIES FCE1232RHFQO2 Traditional Style Head and Footboards, Solar Oak Finish FCE1232RSR Standard Assist Rails (Head Section Only) FCE1232RSRN Soft-Touch Assist Rails (Head or Foot Section) FCE1232RSRXT Extra-Tall Soft-Touch Assist Rails (Head or Foot Section) FCEQRSIDE Quick Release Soft-Touch Assist Rails FCEQRHFB Quick Release Head/Footboard mounting hardware FCE1232ABN... - Page 25 Foot raises and lowers properly. c. Bed raises and lowers properly. d. LED lights illuminate. e. Unplug bed and operate a bed function to confirm backup battery is functional. f. Check for malfunctions, recalls, or safety notices. 1-800-MEDLINE (633-5463) | medline.com 25...
-
Page 26: Maintenance Schedule
MAINTENANCE SChEDULE – FCEALTMAxx Serial # Date Inspection Maintenance Cleaning Initials Notes... -
Page 28: Warranty Information
Some products may not be available for sale in Mexico or Canada. Please contact your Account Representative for additional information. We reserve the right to correct any errors that may occur within this instruction sheet. ©2016 Medline Industries, Inc. Medline is a registered trademark of Medline Industries, Inc.
