INSTRUCTION MANUAL
(For Professional Use Only)

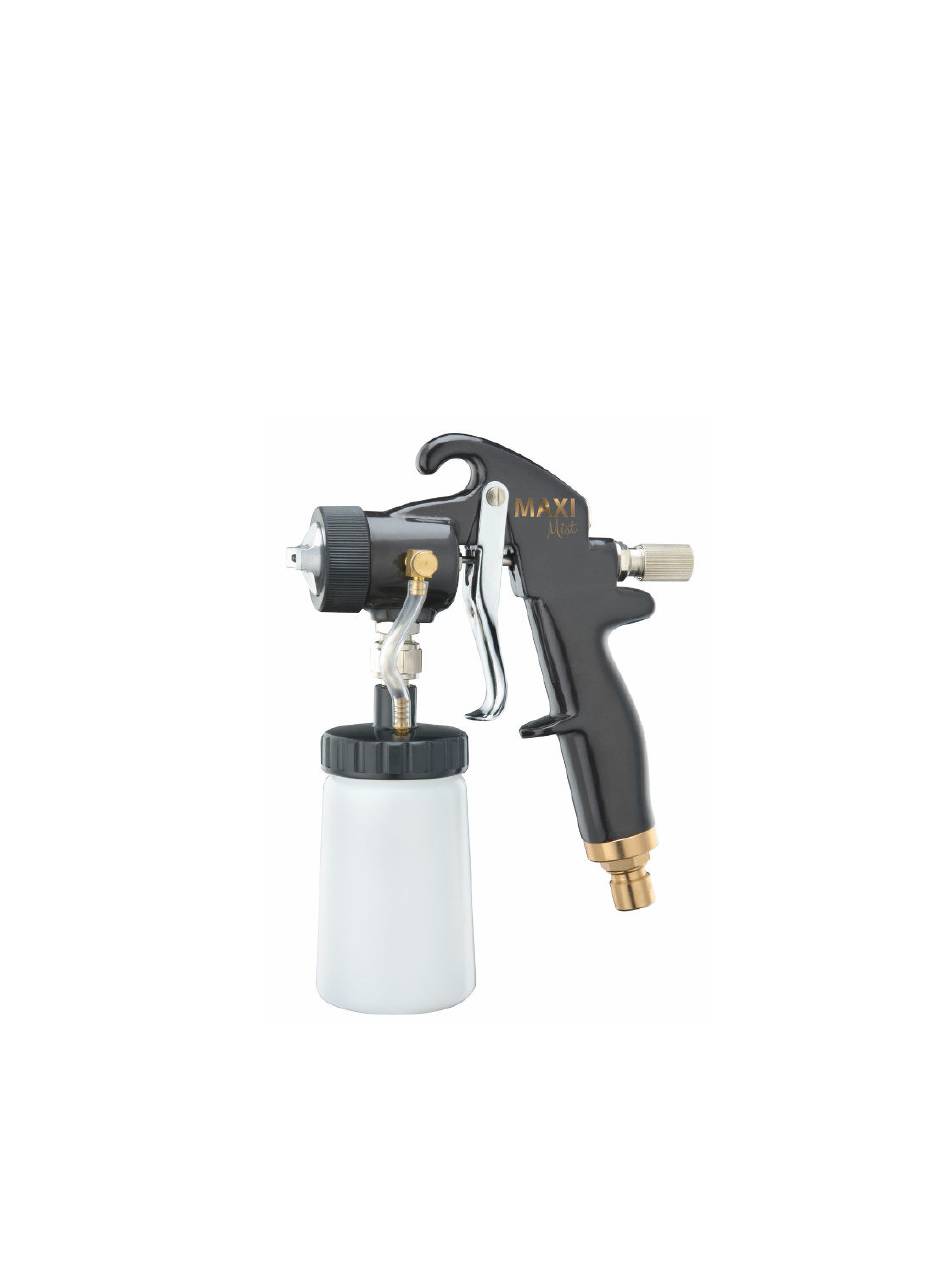

ST302PRO
Pro Series Spray Gun
D
O NOT USE EQUIPMENT BEFORE READING THIS MANUAL
This manual contains important warnings and instructions.
Please read these instructions carefully and keep for your reference.
Maximst 2023
1
Advertisement
Related Manuals for MaxiMist Pro Series
Summary of Contents for MaxiMist Pro Series
- Page 1 INSTRUCTION MANUAL (For Professional Use Only) ST302PRO Pro Series Spray Gun O NOT USE EQUIPMENT BEFORE READING THIS MANUAL This manual contains important warnings and instructions. Please read these instructions carefully and keep for your reference. Maximst 2023...
- Page 2 Table of Contents 1 General Safety Information: ...................... 3 2 Set up and operate your ST302PRO Spray Tan Gun: ............5 3 Using your ST302PRO Spray Gun.................... 6 4 Troubleshooting the Spray Gun....................7 5 Maintenance ..........................8 6 ST302PRO Diagram and Parts List ..................9 7 Warranty………………………………………………………………………………………………...10 ST302PRO Spray Gun Instruction Manual Congratulations on purchasing the ST302PRO Spray Gun.
- Page 3 General Safety Information: Read all instructions and safety precautions before operating the unit. THIS INDICATES A CONDITION THAT WILL CAUSE SERIOUS INJURY OR LOSS OF LIFE IF THE WARNING IS IGNORED. THIS INDICATES A CONDITION THAT COULD CAUSE SERIOUS INJURY OR LOSS OF LIFE IF THE WARNING IS IGNORED.
- Page 4 General Safety Information cont’d.: • Tipping the Spray Gun causes the Spray Gun to clog. Dried spray material also clogs the pressure delivery tube and fittings. The Spray Gun does not function when clogging occurs. • When not in use, be sure to disconnect the hose and place the Spray Gun into the holder in the turbine to avoid tipping.
- Page 5 (wasted spray) to the environment. The MaxiMist motor unit has one air hose outlet on the side of the case and is designed to run one Spray Gun. Your Spray Gun offers you many options. You can adjust (click) the air cap to three positions. One will produce a horizontal pattern for spraying across, another will produce a vertical pattern for spraying up and down, and the third will produce a round pattern for detailing muscles or other intricate parts of the body.
- Page 6 USING YOUR ST302 SPRAY GUN Your MaxiMist ST302PRO is certified. This means your Spray Gun only uses approximately 3psi or less. All passages and air ports are much larger than an airbrush system. If one of these air passages becomes blocked, or build up of solution starts to occur, your spray pattern will become distorted.
- Page 7 ST302PRO Spray Gun recommended maintenance: Check: Cup gasket, nozzle gasket, gland seal, air cap holes, nozzle/ needle assembly every 50 hours or when necessary. Clean or replace parts as needed. Daily cleaning is easy, simply fill cup with 2oz MaxiClean Spray Gun Cleaner and 1oz hot water and spray into the sink or on to a towel. TROUBLESHOOTING 1.Solution cup full, motor unit air is supplied to the Spray Gun.
- Page 8 SPRAY GUN MAINTENANCE AND CLEANING 1. You do not need to clean your spray gun every time you stop spraying. Either set the Spray Gun down carefully so as not to tip it over, or hang it by the hook. You should, however, clean your Spray Gun at the end of a work session or at the end of the day.
- Page 9 Part # Description Part # Description Air Cap Ring Needle Lock Nut Air Cap Needle Cap Air Cap Detent Plate Needle Spring Air Cap Spring Fluid Adjust Knob Fluid Nozzle O Ring Gun Body Quick Coupler Screw A Air Feed Elbow Trigger Air Feed Tube Screw A Stud...
- Page 10 Warranty or to create for MAXIMIXT SPRAY TAN SYSTEMS. Any other liability in connection with the sale of any MAXIMIST SPRAYERS product. MAXIMIST SPRAY TAN SYSTEMS shall not be liable for any consequential, incidental, or special damages of any kind directly or indirectly resulting from breach of any express or implied Warranty.
- Page 11 The proper way to use a Maximist spray gun is 4 inches away from the skin surface, with a 4- inch-wide/long spray pattern (at its longest point). This will give you the optimum application, while using the least amount of product (2-2.5oz per application, in two separate, back to...
- Page 12 Your goal is to achieve a 4-inch-wide/long “line” on its longest length while holding the spray gun 4 inches away from the towel. Continue to open/adjust the spray gun via it’s flow adjustment knob until you have a 4-inch-wide line. ...
