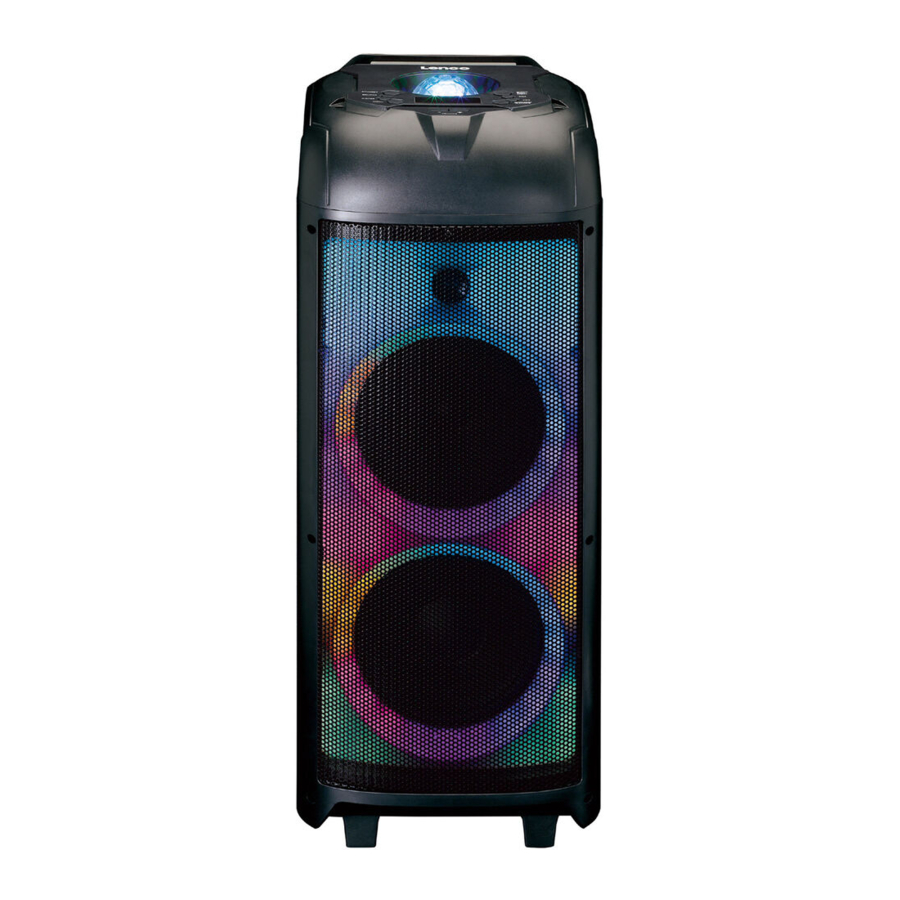

Lenco PA-360BK - Party Speaker Manual

REAR PANEL

1. FM Antenna
2. DC 20V
3. MIC: Wired Mic input socket
4. GUITAR: Guitar input socket
5. LINE-IN: Line-in input socket
6. Charging Light
7. USB: USB input socket

   The USB port is for playing a USB stick only, other devices cannot be used with this USB connection. The use of USB extension cords is not recommended.
8. POWER SWITCH: Press this switch to turn the unit ON or OFF

TOP PANE

1. STANDBY/360° LIGHT: Press this key to turn the 360° LIGHT ON/OFF. Press and hold for Standby, ON, and OFF.
2. SOURCE: Press this key to change the sources between USB, BT, FM, LINE.
3. X.BASS: Press the key to turn the extra bass effect ON/OFF.
4. MENU: Press this key to change the menu between MIC & GUITAR VOLUME, ECHO BASS, TREBLE.
5. VOLUME -/+: To adjust the levels.
6. LED DISPLAY: To display speaker status.
7. FM auto -scan/ /TWS: In FM mode, press for the fully automatic search. Press to PLAY/PAUSE a track at USB/BT input mode. Press and hold on to change the TWS (true wireless stereo) mode on or off.
8. : To play the previous song at USB/BT input mode.
9. : To play the next song at USB/BT input mode.
10. DISCOBALL/FIRE LIGHT: Press and hold this key to DISCOBALL on or off. Press to change the front speaker light mode between LED1, LED2, LED3, LED4, OFF

REMOTE CONTROL

1. SOURCE
   Press to change the source between USB, BT, FM, LINE.
2. 0~9 NUMERIC KEYS
   These keys are used to play a track directly in USB source mode.
   Eg: To play 12th track in the USB playlist press the numeric key"1" followed by"2".
   In FM, to select saved channel, or input station frequency directly
3. BT
   Press to enter Bluetooth pairing mode.
4. /CH+
   Play the next song by pressing " /CH+" at USB/BT input mode.
   Adjust next channel by pressing "/CH+" at FM input mode.
5. /TU-
   Fast rewind a song by pressing " /TU-" at USB input mode.
   Adjust radio frequency by pressing " /TU-" at FM input mode.
6. /CH-
   Play the previous song by pressing " /CH-" at USB/BT input mode.
   Adjust previous channel by pressing " /CH-" at FM input mode.
7. BASS
   Press this key to turn ON/OFF the extra bass effect.
8. VOL-
   To decrease the volume.
9. MENU/-/+
   Press MENU key to change the mode between MIC Volume, ECHO, BASS, TREBLE. Press -/+ key to decrease or increase the effect.

16. VOL+
    To increase the volume.
17. LED SHOW
    To change the light mode between LED1, LED2, LED3, LED4, OFF
18. MUTE
    Press this key to MUTE/UNMUTE the speaker volume.
19. /TU+
    Fast forward song by pressing " /TU+" at USB input mode.
    Adjust radio frequency by pressing " /TU+" at FM input mode.
20. / AUTO
    • Play / pause in USB/BT mode.
    • In FM mode press for the full automatic search.
21. REPEAT
    Choose repeat mode by pressing "REPEAT" at USB input mode. Repeat random, single, all. 22) STANDBY
22. STANDBY
    Stand by ON/OFF key.

Only for LFM-220BK

To control the LFM-220BK, in the first time has to match the code with it.

1. Let the remote close to LFM-220BK, long press the LED ON/OFF button 3 seconds, start to match the code.
2. The lights show "OK", means matching success.
3. Then can use this remote operate the LFM-220BK normally.

10. AUTO/SPEED
    The Animations speed level 1,2,3 and repeat animation, and follow the music beat Automatically.
11. LOVE: Select Animation "LOVE"
12. COUNT DOWN: Start COUNT DOWN
13. 10S: Press spray fog 10 seconds.
14. LED ON/OFF
15. MANUAL
    Press and hold to spray fog, release to stop the fog output

SPECIFICATION

Frequency Response: 25Hz-20KHz

Power Source: 100-240V~, 50/60Hz

Power Consumption: 60W

Music output power: 150W RMS

Bluetooth: V5.0

FM radio: 87.5-108 MHz

Unit Size (W x D x H): 30.5x30x78.5cm

Tweeter size: 1 x 1 inch

Full range size: 3 x 2 inch

Woofer size: 1 x 8 inch

Subwoofer size: 1 x 8 inch

Unit weight: 11kg

Working Temperature: 0-35 ºC

• The specification presents only as a reference. The value of weight and size are approximation.
• Our product is improved ceaselessly and the specification and function may be changed without prior notice.

OPERATING

Bluetooth pair and connect

• Turn off any Bluetooth devices previously paired (linked) with this unit.
• Turn on the Bluetooth feature on your phone or music player.
• Turn on and set this unit to Bluetooth mode. The flashing: "bt" on LED display indicates it is in pairing mode.
• Set your phone or music player to search for Bluetooth devices.
• Select "Lenco PA-360" from search results on your phone or music player.
• Select OK or YES to pair this unit with your phone or music player.
• If protected, enter 0000 for passkey steady blue light indicates successful connection.
• Hold pair key to disconnect current convection and eater pairing mode.

"This product has a Bluetooth reception function, you can not transmit any Bluetooth sound with it: this means that you can receive wirelessly a Bluetooth sound signal from an external source like a smartphone."

TWS (True Wireless Stereo) mode

1. Turn on 2 PA-360 and select both unit INPUT mode as Bluetooth
2. Press "TWS" key on speaker set for 2 seconds, it will show "" on display, TWS is connecting to another speaker equipment and will connect successfully after a sound indication or display shows "bt"
3. Turn on your Bluetooth feature on your mobile phone to search Bluetooth devices and select "Lenco PA-360" from the search result, select OK or YES to pair this unit with your mobile phones and a steady blue light will indicate the connection is successful and can play any music from your mobile phones.
4. Press "TWS" key on speaker unit for 2 seconds and it will turn off TWS features after shows "" on display.

(The "LEFT" channel will be the speaker A, the other speaker will be the "RIGHT" channel.)

FM Radio Operation

1. Before using the radio functions, you must attach the supplied antenna. Adjust the antenna to obtain optimum reception. Press [SOURCE] repeatedly to select FM mode.
2. Press the CH+/CH- key on the remote control or Hold the key "" on the top panel to skip to the preset station.
3. Press the TU+/TU- key on the remote control or press the key "" on the top panel to adjust the radio frequency manually. The number key on the remote control can directly select the frequency. Such as enter "8,8,1" keys for 88.1MHz, "1,0,4,0" keys for 104.0MHz.
4. Press the PLAY key on the remote control or Press the key " " on the top panel, the machine will scan radio channels from low-frequency to high-frequency by itself and memorize the channels one by one.

BATTERY

In AC ( power) mode the battery will automatically charge. A slow red flashing light indicates that the battery is charging. When fully charged a green light will be displayed.

In DC ( battery) mode a green light indicates that the battery level is full. If the battery level is low a red light will be displayed. This indicates that the battery must immediately be charged or the speaker will turn off.

Connect to power outlet

Line IN

You can connect any audio player (discman, MP3 player...) to the PA-360 with an audio cable with 3.5mm connector as below. (Cable not included)

Power supply adaptor (For EU only)

Manufacturer: GUANGZHOU GUANGER ZHONG ELECTRONIC TECHNOLOGY CO., LTD Model number: GPUSW2003000WD00
Use only the power supply listed in the user instructions.

Accessories-included

Service

For more information and helpdesk support, please visit www.lenco.com
Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.

Website: www.lenco.com/LIDL
Email: support@lenco.com

PRECAUTIONS BEFORE USE

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.

4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6.
   Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:
    • If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
    • Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
    • Unplug this device during lightning storms or when unused for a long period.
    • The socket outlet must be installed near the equipment and must be easily accessible.
    • Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
    • Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    • Devices with class 2 construction do not require a earthed connection.
    • Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
    • Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.
28. If the product contains or is delivered with a remote control containing coin/cell batteries:

    • "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
    • [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
    • Keep new and used batteries away from children.
    • If the battery compartment does not close securely, stop using the product and keep it away from children.
    • If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
29. Caution about the use of Batteries:
    • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
    • Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
    • Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
    • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
    • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
    • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
    • Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
