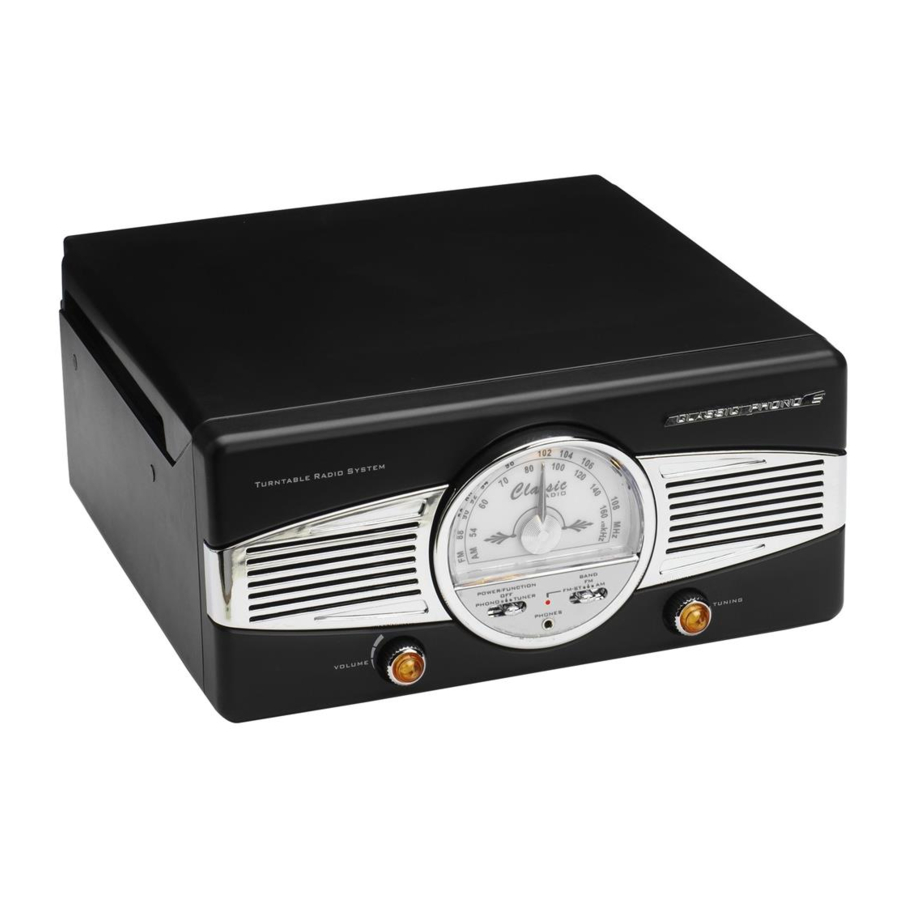

Lenco Classic Phono TT-28, TT-28C - Record Player Manual

Table of Contents

Contents

1 LOCATION OF CONTROLS
2 CONNECTION
3 LISTENING TO RADIO
- 3.1 MANUAL TUNING
- 3.2 FM & FM‐STEREO RECEPTION
4 PHONO
5 LINE OUT CONNECTION
6 SPECIFICATIONS
7 Guarantee
8 PRECAUTIONS BEFORE USE
9 Service
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

LOCATION OF CONTROLS

DUST COVER
DIAL POINTER
LEFT SPEAKER
VOLUME KNOB
POWER OFF/FUNCTION SELECTOR
3.5MM STEREO HEADPHONE JACK
RIGHT SPEAKER
TUNING KNOB
BAND/FM STEREO SELECTOR

FM STEREO LED INDICATOR
SPINDLE ADAPTOR
33/45 RPM SPEED SELECTOR
PICK‐UP HOLDER
LINE OUT SOCKET
FM ANTENNA
AUTO STOP SWITCH
AC CORD

CONNECTION

CONNECT THE POWER CORD TO AC OUTLET
SWITCH THE SYSTEM TO " RADIO " FUNCTION. IF THE BACKGROUND OF THE DIAL SCALE LIGHT UP WITH AMBER LIGHT, IT'S MEAN THE POWER SUPPLY IS NORMAL. NOW YOUR SYSTEM IS READY TO PLAY THE MUSIC.

LISTENING TO RADIO

MANUAL TUNING

PRESS "FUNCTION/BAND" BUTTON AND SELECT THE DESIRED BAND (AM OR FM OR FM‐STEREO).
TUNE TO THE REQUIRED STATION BY TURNING THE TUNING KNOB.
ADJUST VOLUME KNOB TO THE DESIRE VOLUME LEVEL.

FM & FM‐STEREO RECEPTION

SET THE FM MODE SELECTOR AT THE " FM " POSITION. PROGRAMS ARE RECEIVED IN MONO MODE. IN PARTICULAR WHEN STEREO SIGNAL ARE TOO WEAK. IT IS PREFERABLE TO RECEIVE THE PROGRAM IN MONO.
SET THE FM MODE SELECTOR AT "FM‐ST" POSITION FOR RECEIVING STEREO PROGRAMS. THE FM‐STEREO LED INDICATOR WILL LIGHT UP TO SHOW FM STEREO PROGRAM IS BEING RECEIVED

HINTS FOR BEST RECEPTION:

AM: THE RECEIVER HAS A BUILT‐IN AM BAR ANTENNA. IF AM RECECPTION IS WEAK, SLIGHTLY ROTATE OR RE‐POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION.
FM: THE RECEIVER HAS A BUILD‐IN FM WIRE ANTENNA HANGING AT THE REAR CABINET. THIS WIRE SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR BEST RECEPTION.

PHONO

information NOTED:

REMOVE THE STYLUS PROTECTOR.
BE SURE THAT THE TONE ARM IS BEING DETACHED FROM THE TONE ARM REST BEFORE OPERATING AND RE‐SECURED AGAIN AFTERWARDS.

SELECT TO " PHONO " FUNCTION.
SET THE SPEED SELECTOR TO THE PROPER POSITION DEPENDING ON THE RECORD TO BE PLAYED.
PLACE THE RECORD ON THE PLATTER (USE THE SPINDLE ADAPTOR IF REQUIRED).
LIFT THE TONE ARM FROM THE REST AND SLOWLY MOVE IT TO THE RECORD SIDE. THE PLATTER WILL START TO ROTATE.
PLACE THE TONE ARM TO THE DESIRED POSITION OF THE RECORD.
ADJUST THE VOLUME TO THE DESIRED LEVEL.
AT THE END OF RECORD, THE PLATTER WILL AUTOMATICALLY STOP ROTATING. LIFT THE TONE ARM FROM THE RECORD AND RETURN IT TO THE REST.
TO STOP MANUALLY, LIFT THE TONE ARM FROM THE RECORD AND RETURN IT TO THE REST.

information REMARK: AT SOME OF THE RECORD, THE AUTO‐STOP AREA IS OUT OF THE UNIT SETTING, SO IT WILL STOP BEFORE THE LAST TRACK FINISH. IN THIS CASE, SELECT THE AUTO‐STOP SWITCH (16) TO " OFF " POSITION, THEN IT WILL RUN TO THE END OF THE RECORD BUT WILL NOT STOP AUTOMATICALLY (TURN OFF THE UNIT BY POWER BUTTON OR SWITCH BACK THE AUTO‐STOP SWITCH TO " ON " POSITION TO STOP THE PLATTER TO ROTATE). THEN PUT BACK THE TONE ARM TO THE REST POSITION.

LINE OUT CONNECTION

YOU CAN CONNECT THE SYSTEM TO YOUR HI‐FI SYSTEM BY CONNECTING THE LINE OUT SOCKET (14) TO THE AUXILIARY INPUT SOCKET WITH A RCA CABLE (NOT INCLUDED).

SPECIFICATIONS

POWER SOURCE	: AC 230V/50HZ
SPEAKERS	: 4OHM X 2
2‐SPEED TURNTABLE	: 33⅓, 45 RPM
LINE‐OUT	: RCA CONNECTION
AUX IN	: 3.5MM DIA.
STYLUS	: UNIVERSAL TYPE FITTED (FOR 33⅓, & 45 RPM RECORDS*)
ACCESSORIES SUPPLIED	: 45RPM SPINDLE ADAPTOR

information Remark (for Europe market only)
Due to ErP stage two requirement and protect the environment. The unit will switch to standby mode automatically once no any music playing over 15 minutes.

Guarantee

Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

It is not possible to send products that need repairs to Lenco directly.

If this unit is opened or accessed by a non‐official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
Install in accordance with the supplied user manual.
Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat‐generating products or naked flame. The apparatus can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.
Avoid using the device near strong magnetic fields.
Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static‐free environment.
Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit could maybe not work properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build‐up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
Keep away from rodents. Rodents enjoy biting on power cords.
To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.
The rating label has been marked on the bottom or back panel of the apparatus.
This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
This product is intended for non professional use only and not for commercial or industrial use.
Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
Never remove the casing of this apparatus.
Never place this apparatus on other electrical equipment.
Do not allow children access to plastic bags.
Only use attachments/accessories specified by the manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
If the product is delivered with power cable or AC power adaptor:

If any trouble occur, disconnect the AC power card and refer servicing to qualified personnel.
To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.
Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
Unplug this device during lightning storms or when unused for a long period.
The socket outlet must be installed near the equipment and must be easily accessible.
Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
Devices with class 2 construction do not require a earthed connection.
Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

If the product contains or is delivered with a remote control containing coin / cell batteries:

"Do not ingest battery, Chemical Burn Hazard" or equivalent working.
[The remote control supplied with] This product contains a coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Caution about the use of Batteries:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

Unpack all parts and remove protective material.
Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

*Those instruction are related only to products using power cable or AC power adaptor.
