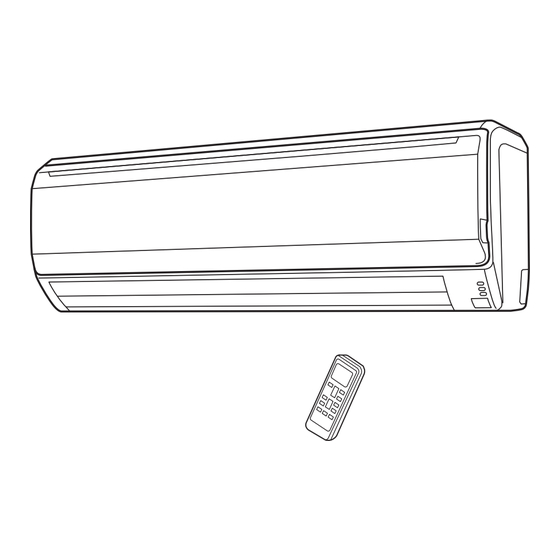

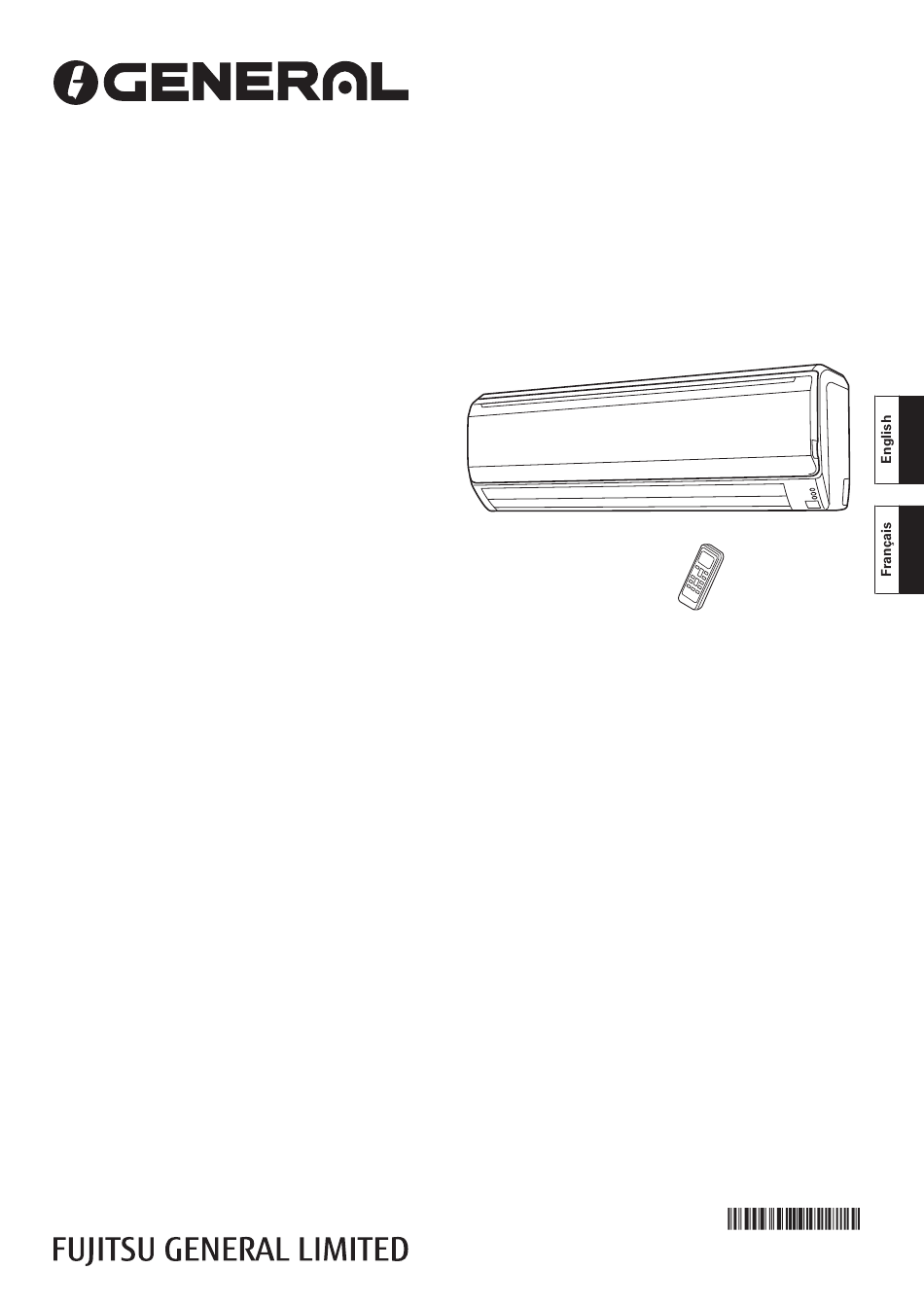

OPERATING MANUAL
MODE D'EMPLOI
COOL MODEL
AIR CONDITIONER
WALL MOUNTED TYPE
FROID SEUL
CLIMATISEUR
TYPE MURAL
Indoor Unit / Unité Intérieure
ASGA18AHT
ASGA24AHT
Outdoor Unit / Unité Extérieur
AOGR18AHT
AOGR24AHT
KEEP THIS OPERATION MANUAL FOR FUTURE REFERENCE
CONSERVEZ CE MODE D'EMPLOI POUR RÉFÉRENCE ULTÉRIEUR
Refer to the rating label with the serial number.
Consulter l'étiquette signalétique comportant le numéro de série.
MADE IN THAILAND
FABRIQUÉ EN THAÏLANDE
PART No. 9385989344-05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fujitsu General ASGA18AHT
Summary of Contents for Fujitsu General ASGA18AHT
- Page 1 OPERATING MANUAL MODE D’EMPLOI COOL MODEL AIR CONDITIONER WALL MOUNTED TYPE FROID SEUL CLIMATISEUR TYPE MURAL Indoor Unit / Unité Intérieure ASGA18AHT ASGA24AHT Outdoor Unit / Unité Extérieur AOGR18AHT AOGR24AHT KEEP THIS OPERATION MANUAL FOR FUTURE REFERENCE CONSERVEZ CE MODE D’EMPLOI POUR RÉFÉRENCE ULTÉRIEUR Refer to the rating label with the serial number.
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........... 1 ADJUSTING THE DIRECTION OF FEATURES AND FUNCTIONS ........2 AIR CIRCULATION ..........10 NAME OF PARTS ............3 SWING OPERATION ..........11 PREPARATION ............5 POWERFUL OPERATION ........12 OPERATION ............... 6 CLEANING AND CARE ..........13 TIMER OPERATION ........... -
Page 3: Features And Functions
FEATURES AND FUNCTIONS AUTO CHANGEOVER REMOVABLE INTAKE GRILLE The operation mode (cooling, dry) is switched automatically The indoor unit’s Intake Grille can be removed for easy clean- to maintain the set temperature, and the temperature is kept ing and maintenance. constant at all times. -
Page 4: Name Of Parts
NAME OF PARTS Fig. 1 Indoor Unit Intake Grille (Fig. 2) (1-1) Air Cleaning Filter • behind Air Filter. • This part is optional for ASGA18/24AHT. Operating Control Panel (Fig. 3) (1-2) Front Panel Indicator (Fig. 4) (1-3) Air Flow Direction Louver (1-4) Power Diffuser (1-5) Right-Left Louver •... - Page 5 Fig. 6 Remote Controller (6-7) Signal Transmitter Remote Controller Display (Fig. 7) (6-1) MODE button (6-8) FAN button (6-9) START/STOP button (6-2) SET TEMP . button ( (6-10) SET button (Vertical) (6-3) POWERFUL button (6-11) SET button (Horizontal) (6-12) SWING button (6-4) SLEEP button (6-5) TIMER MODE button (6-6) CLOCK ADJUST button...
-
Page 6: Preparation
PREPARATION CAUTION! Load Batteries (R03/LR03 ● Take care to prevent infants from accidentally swallowing batteries. Press and slide the battery compartment lid on the ● When not using the Remote Controller for an extended period, remove the reverse side to open it. batteries to avoid possible leakage and Slide in the direction of the arrow while pressing the mark. -
Page 7: Operation
OPERATION To Select Mode Operation Press the START/STOP button [Fig.6 (6-9)]. The indoor unit’s OPERATION Indicator Lamp (green) [Fig. 4 (4-1)] will light. The air conditioner will start operating. Press the MODE button [Fig.6 (6-1)] to select the desired mode. Each time the button is pressed, the mode will change in the following order. - Page 8 To Stop Operation Press the START/STOP button [Fig. 6 (6-9)]. The OPERATION Indicator Lamp (green) [Fig. 4 (4-1)] will go out. About AUTO CHANGEOVER Operation ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate AUTO: at very low speed for 1 ~ 3 minute, during which time the unit detects the room conditions and selects the proper operating mode.
-
Page 9: Timer Operation
TIMER OPERATION Before using the timer function, be sure that the Remote Controller is set to the correct current time (☞ P . 5). To Use the ON timer or OFF timer Press the START/STOP button [Fig.6 (6-9)] To Cancel the Timer (if the unit is already operating, proceed to step 2). -
Page 10: Sleep Timer Operation
SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP Timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Use the TIMER MODE button to select SLEEP button [Fig. -
Page 11: Adjusting The Direction Of Air Circulation
ADJUSTING THE DIRECTION OF AIR CIRCULATION ● Adjust the up, down, left, and right AIR directions with the AIR DIRECTION buttons on the Remote Controller. ● Use the AIR DIRECTION buttons after the Indoor Unit has started operating and the airfl ow-direction louvers have stopped moving. -
Page 12: Swing Operation
SWING OPERATION Begin air conditioner operation before performing this procedure. To select SWING Operation Press the SWING button [Fig. 6 (6-12)]. The SWING Display [Fig. 7 (7-6)] will light. Each time the SWING button is pressed, the swing operation will change in the following order. -
Page 13: Powerful Operation
POWERFUL OPERATION The air conditioner runs at the maximum fan speed. Use the Powerful operation to cool down the room quickly or circulate the air in a room. To select POWERFUL Operation Press the POWERFUL button [Fig. 6 (6-3)] The indoor unit’s POWERFUL Indicator Lamp (green) [Fig.4 (4-3)] will light. (The Powerful operation is not indicated on the remote controller. -
Page 14: Cleaning And Care
CLEANING AND CARE ● Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cable. CAUTION! ● Be sure the Intake Grille [Fig. 2] is installed securely. ● When removing and replacing the air fi lters, be sure not to touch the heat exchanger, as personal injury may result. - Page 15 Air Cleaning Filter Installation Replacing dirty Air cleaning fi lters Replace fi lters with the following components (purchased (This part is optional for ASGA18/24AFT.) separately). 1. Open the Intake Grille and remove the Air ● POLYPHENOL CATECHIN AIR CLEANING FILTER : UTR-FA13-1 fi...
-
Page 16: Troubleshooting
TROUBLESHOOTING In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electri- WARNING! cal breaker or disconnect the power supply plug, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. -
Page 17: Operating Tips
OPERATING TIPS AUTO Restart In Event of Power Interruption ● The air conditioner power has been interrupted by a power failure. The air conditioner will then restart automatically in its previous mode when the power is restored. ● Operated by setting before the power failure. ●... -
Page 18: Specifications
SPECIFICATIONS MODEL INDOOR UNIT ASGA18AHT ASGA24AHT OUTDOOR UNIT AOGR18AHT AOGR24AHT TYPE COOL MODEL POWER 220-240V 1Ø / 50Hz COOLING CAPACITY [kW] 5.40 - 5.40 6.90 - 6.90 POWER INPUT [kW] 2.14 - 2.17 2.65 - 2.72 CURRENT 10.0 - 9.7 13.0 - 13.0 ENERGY EFFICIENCY RATIO [kW/kW]...
