AIR CONDITIONER

Wall Mounted type

DESIGN & TECHNICAL MANUAL
INDOOR
OUTDOOR
ASG09LLCB
ASG12LLCB
AOG09LLCB
AOG12LLCB

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu AS*G09LLCB

Summary of Contents for Fujitsu AS*G09LLCB

  • Page 1: Wall Mounted Type

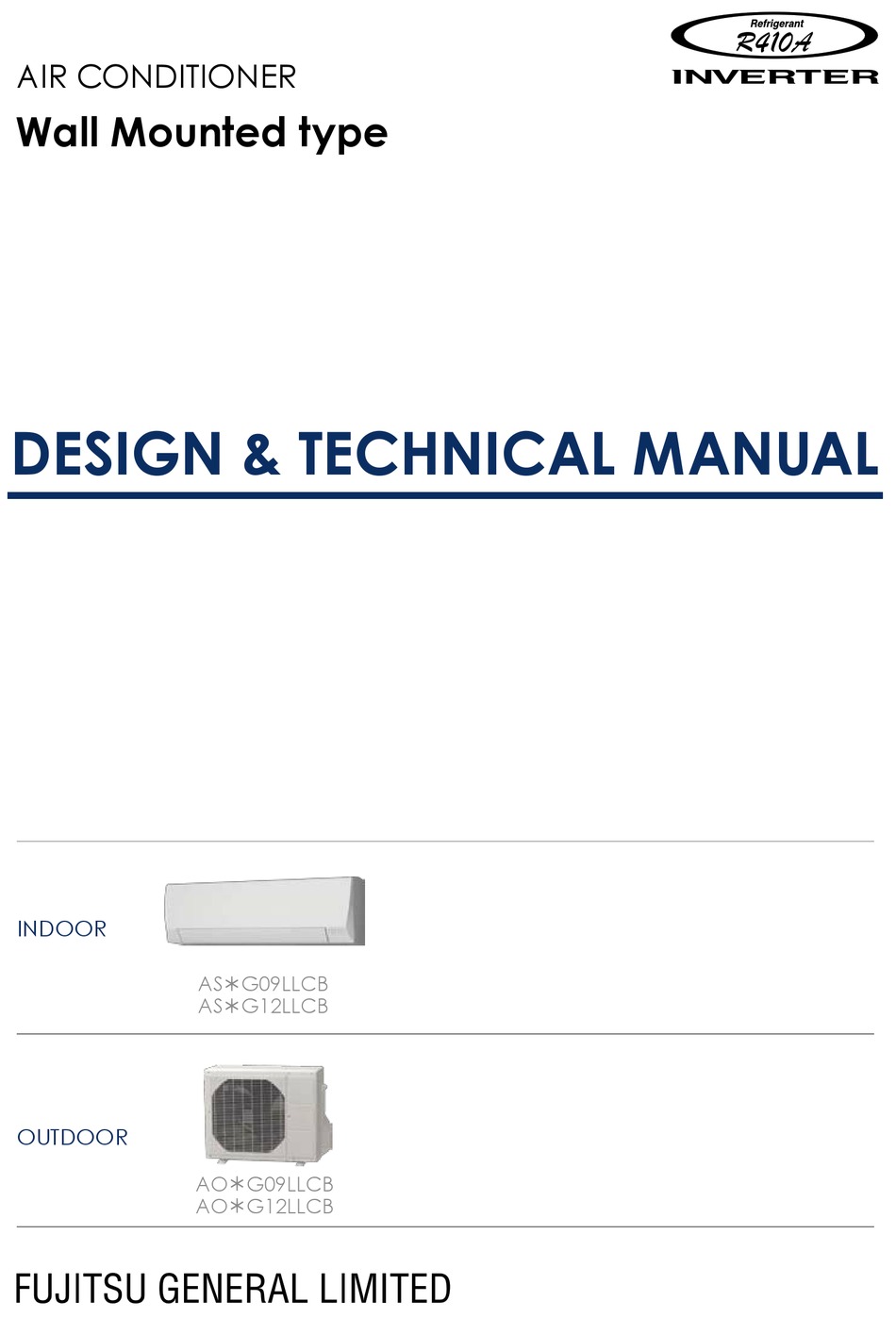

    AIR CONDITIONER Wall Mounted type DESIGN & TECHNICAL MANUAL INDOOR ASG09LLCB ASG12LLCB OUTDOOR AOG09LLCB AOG12LLCB...

  • Page 2: Indoor Unit

    1.INDOOR UNIT WALL MOUNTED TYPE : AS G09LLCB AS G12LLCB DTR_AS070E_01 2012.08.30...

  • Page 3: Table Of Contents

    CONTENTS 1. INDOOR UNIT 1. FEATURE ........................01 - 01 2. WIRELESS REMOTE CONTROLLER ..........01 - 03 3. SPECIFICATIONS ....................01 - 05 4. DIMENSIONS ......................01 - 06 5. WIRING DIAGRAMS ..................01 - 07 6. CAPACITY TABLE ....................

  • Page 4: Feature

    FEATURE MODEL „ „ ASG09LLCB / AOG09LLCB ASG12LLCB / AOG12LLCB FEATURES „ „ High EER/COP „ High EER/COP is realized by adopting the efficient DC rotary compressor, heat exchanger, and inverter technology. All models achieve the “Class A” ranking. 3.70 3.70 3.36 3.35...
  • Page 5 Easy maintenance „ Removable & washable panel Corresponds to maximum 15m long piping „ - (01 - 02) -...

  • Page 6: Wireless Remote Controller

    WIRELESS REMOTE CONTROLLER FEATURES „ „ Four kinds of timer setup ¾ „ (ON / OFF / PROGRAM / SLEEP) are possible. Four kinds of timer. Easy operation. ¾ „ Easy to change transmission code (4 patterns) by button operation. ¾...
  • Page 7 FUNCTIONS „ „ Signal transmitter MODE button SET TEMP. button ( POWERFUL button ECONOMY button START/STOP button TEST RUN button This button is used when installing the air conditioner, and „ should not be used under normal conditions, as it will cause the indoor unit’s thermostat function to operate incorrectly.

  • Page 8: Specifications

    SPECIFICATIONS WALL MOUNTED Type INVERTER HEAT PUMP Model name AS¾G09LLCB AS¾G12LLCB Power source 230V~ 50Hz Available voltage range 198-264V~ 50Hz Cooling European energy label Heating 2.50 3.40 Rated Btu/h 8,500 11,600 Cooling 0.9 - 3.0 0.9-3.8 Min-Max Btu/h 3,100 - 10,200 3,100-13,000 Capacity 3.20...

  • Page 9: Dimensions

    DIMENSIONS MODEL : ASG09LLCB, ASG12LLCB „ „ (Unit : mm) INSTALLATION PLACE „ „ Wall hook bracket 63 mm or more 100 mm or more 70 mm or more 1,500 mm or more 1,800 mm or more (Wall cap) - (01 - 06) -...

  • Page 10: Wiring Diagrams

    WIRING DIAGRAMS MODEL : ASG09LLCB, ASG12LLCB „ „ - (01 - 07) -...

  • Page 11: Capacity Table

    CAPACITY TABLE 6-1. COOLING CAPACITY MODEL : ASG09LLCB „ „ 12.0 Indoor temperature °CDB °CWB °CDB 2.27 1.55 0.51 2.40 1.64 0.51 2.71 1.85 0.57 2.80 1.92 0.60 2.91 1.99 0.61 3.03 2.07 0.60 3.15 2.15 0.61 2.15 1.61 0.58 2.28 1.61 0.57...

  • Page 12: Heating Capacity

    6-2. HEATING CAPACITY MODEL : AS G09LLCB „ „ 12.3 Indoor temperature °CDB °CDB °CWB 2.37 0.97 2.15 0.97 1.93 0.96 1.89 0.97 1.84 0.98 2.35 0.98 2.27 0.98 2.18 0.98 2.21 0.99 2.24 1.00 2.60 1.00 2.52 1.00 2.43 1.00 2.49 1.00...

  • Page 13: Fan Performance And Capacity

    FAN PERFORMANCE AND CAPACITY 7-1. AIR VELOCITY DISTRIBUTION MODEL : ASG09LLCB, ASG12LLCB „ „ Unit : m/s TOP VIEW Note: Vertical flap : Up Horizontal flap : Center Fan speed: High Operation mode: Fan Unit : m/s TOP VIEW Vertical flap : Up Horizontal flap : Right &...

  • Page 14: Air Flow

    7-2. AIR FLOW MODEL : ASG09LLCB „ „ Cooling „ Number of Fan speed rotations Air flow (r.p.m) m³/h HIGH 1320 m³/h 1120 m³/h m³/h QUIET zHeating „ Number of Fan speed rotations Air flow (r.p.m) m³/h HIGH 1360 m³/h 1120 m³/h m³/h...
  • Page 15 MODEL : ASG12LLCB „ „ Cooling „ Number of Fan speed rotations Air flow (r.p.m) m³/h HIGH 1320 m³/h 1120 m³/h m³/h QUIET zHeating „ Number of Fan speed rotations Air flow (r.p.m) m³/h HIGH 1360 m³/h 1120 m³/h m³/h QUIET - (01 - 12) -...

  • Page 16: Operation Noise

    OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : ASG09LLCB „ „ Cooling Heating „ „ NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 High High NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 Quiet Quiet NC-15 NC-15 1,000 2,000...

  • Page 17: Sound Level Check Point

    8-2. SOUND LEVEL CHECK POINT - (01 - 14) -...

  • Page 18: Electric Characteristics

    ELECTRIC CHARACTERISTICS Model Name ASG09LLCB ASG12LLCB Voltage 230 ~ Power Supply Frequency Max. Operating Current Connection Cable *)Wiring Spec Limited wiring length *) Wiring Spec Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005) - (01 - 15) -...

  • Page 19: Safety Devices

    SAFETY DEVICES Model Protection form ASG09LLCB ASG12LLCB Circuit protection Current fuse (PCB) 250V 3.15A OFF: 160 ± 25 °C Fan motor protection Terminal protection program ON: 110 ± 25 °C - (01 - 16) -...

  • Page 20: Function Setting

    FUNCTION SETTING 11-1. INDOOR UNIT (Setting by remote controller) • The function settings of the control of the indoor unit can be changed by this procedure according to the installation conditions. Incorrect settings can cause the indoor unit malfunction. • After the power is turned on, perform the “FUNCTION SETTING”...

  • Page 21: Function Details

    FUNCTION DETAILS „ „ Compact wall Functions mounted 1) Filter sign 2) Cooler room temperature correction 3) Heater room temperature correction 4) Auto restart 5) Remote controller signal code 1) Filter sign The indoor unit has a sign to inform the user that it is time to clean the filter. Select the time setting for the filter sign display interval in the table below according to the amount of dust or debris in the room.
  • Page 22 4) Auto restart Enable or disable automatic system restart after a power outage. (  ... Factory setting) Setting description Function number Setting value  * Auto restart is an emergency function such as for power failure etc. Do not start and stop the indoor unit by this function in normal operation. Be sure to operate by the control unit, or external input device.
  • Page 23 REMOTE CONTROLLER SIGNAL CODE SETTING „ „ Use the following steps to select the signal code of the remote controller. (Note that the air conditioner cannot receive a signal code if the air conditioner has not been set for the signal code.) Press the MODE button for at least five seconds to display the current signal code (initially set to ).

  • Page 24: Optional Parts

    OPTIONAL PARTS Exterior Parts name Model No. Summary Remote Wall or pillar mountable, and controller UTZ-RXLA holds the remote controller. holder - (01 - 21) -...

  • Page 25: Outdoor Unit

    2.OUTDOOR UNIT SINGLE TYPE : AO G09LLCB AO G12LLCB DTR_AO122E_01 2012.08.30...
  • Page 26 CONTENTS 2. OUTDOOR UNIT 1. SPECIFICATIONS ....................02 - 01 2. DIMENSIONS ......................02 - 02 3. REFRIGERANT CIRCUIT ................02 - 03 4. WIRING DIAGRAMS ..................02 - 05 5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFERENCE ..................

  • Page 27: Specifications

    SPECIFICATIONS Type INVERTER COOLING & HEATING Model name AOÛG09LLCB AOÛG12LLCB Power source 230V~ 50Hz Available voltage range 198-264V~ 50Hz Starting current Cooling 1,710 1,850 Air flow rate Heating 1,680 1,820 Type × Q'ty Propeller fan × 1 Motor output Cooling Sound pressure level dB(A) Heating...

  • Page 28: Dimensions

    DIMENSIONS MODEL : AOG09LLCB, AOG12LLCB „ „ (Unit : mm) INSTALLATION PLACE „ „ CAUTION • When the outdoor temperature is 0 °C or less, do not use the accessory drain pipe and drain cap. If the drain pipe and drain cap 100 mm or more are used, the drain water in the pipe may 100 mm or more...

  • Page 29: Refrigerant Circuit

    REFRIGERANT CIRCUIT MODEL : AOG09LLCB „ „ Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) - (02 - 03) -...
  • Page 30 MODEL : AOG12LLCB „ „ Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) - (02 - 04) -...

  • Page 31: Wiring Diagrams

    WIRING DIAGRAMS MODEL : AOG09LLCB, AOG12LLCB „ „ - (02 - 05) -...

  • Page 32: Capacity Compensation Rate For Pipe Length And Height Diference

    CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFERENCE MODEL : AOG09LLCB „ „ Pipe length (m) COOLING 0.980 0.944 Û 1 Indoor unit is upper 0.988 0.984 0.948 than outdoor unit. 0.992 0.992 0.988 0.951 Height difference H 1.000 1.000 0.995 0.960...
  • Page 33 MODEL : AOG12LLCB „ „ Pipe length (m) COOLING 0.957 0.911 Û 1 Indoor unit is upper 0.974 0.961 0.916 than outdoor unit. 0.992 0.978 0.965 0.919 Height difference H 1.000 0.986 0.972 0.927 1.000 0.986 0.972 0.927 Û 2 Indoor unit is under -7.5 0.986...

  • Page 34: Additional Charge Calculation

    ADDITIONAL CHARGE CALCULATION MODEL : AOG09LLCB „ „ Refrigerant type R410A Refrigerant amount Refrigerant charge „ Total pipe length 10 or less 15 (MAX) 20g/m Additional charge MODEL : AOG12LLCB „ „ Refrigerant type R410A Refrigerant amount Refrigerant charge „ Total pipe length 10 or less 15 (MAX)

  • Page 35: Air Flow

    AIR FLOW MODEL : AOG09LLCB „ „ Cooling „ Number of rotations Air flow (r.p.m.) 1710 1007 Heating „ Number of rotations Air flow (r.p.m.) 1680 MODEL : AOG12LLCB „ „ Cooling „ Number of rotations Air flow (r.p.m.) 1850 1089 Heating „...

  • Page 36: Operation Noise

    OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : AOG09LLCB „ „ Cooling Heating „ „ NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000...

  • Page 37: Sound Level Check Point

    8-2. SOUND LEVEL CHECK POINT - (02 - 11) -...

  • Page 38: Electric Characteristics

    ELECTRIC CHARACTERISTICS Model Name AOÛG09LLCB AOÛG12LLCB Voltage 230 ~ Power Supply Frequency *1) Max. operating current Starting Current Main Fuse (Circuit breaker) Current *2) Wiring Spec.: Power Cable *3) Limited wiring length : *1) The maximum current is the total current of indoor unit and outdoor unit. *2) Wiring Spec.: Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005)

  • Page 39: Safety Devices

    SAFETY DEVICES Model Protection form AOÛG09LLCB AOÛG12LLCB 250V 20A Current fuse Circuit protection (MAIN PRINTED CIRCUIT BOARD) 250V 3.15A OFF: 135 ± 5 °C Fan motor protection Terminal protection program ON: 95 ± 15 °C Terminal protection program OFF:110°C Compressor protection (DISCHARGE TEMP) ON: After 7 minutes - (02 - 13) -...
