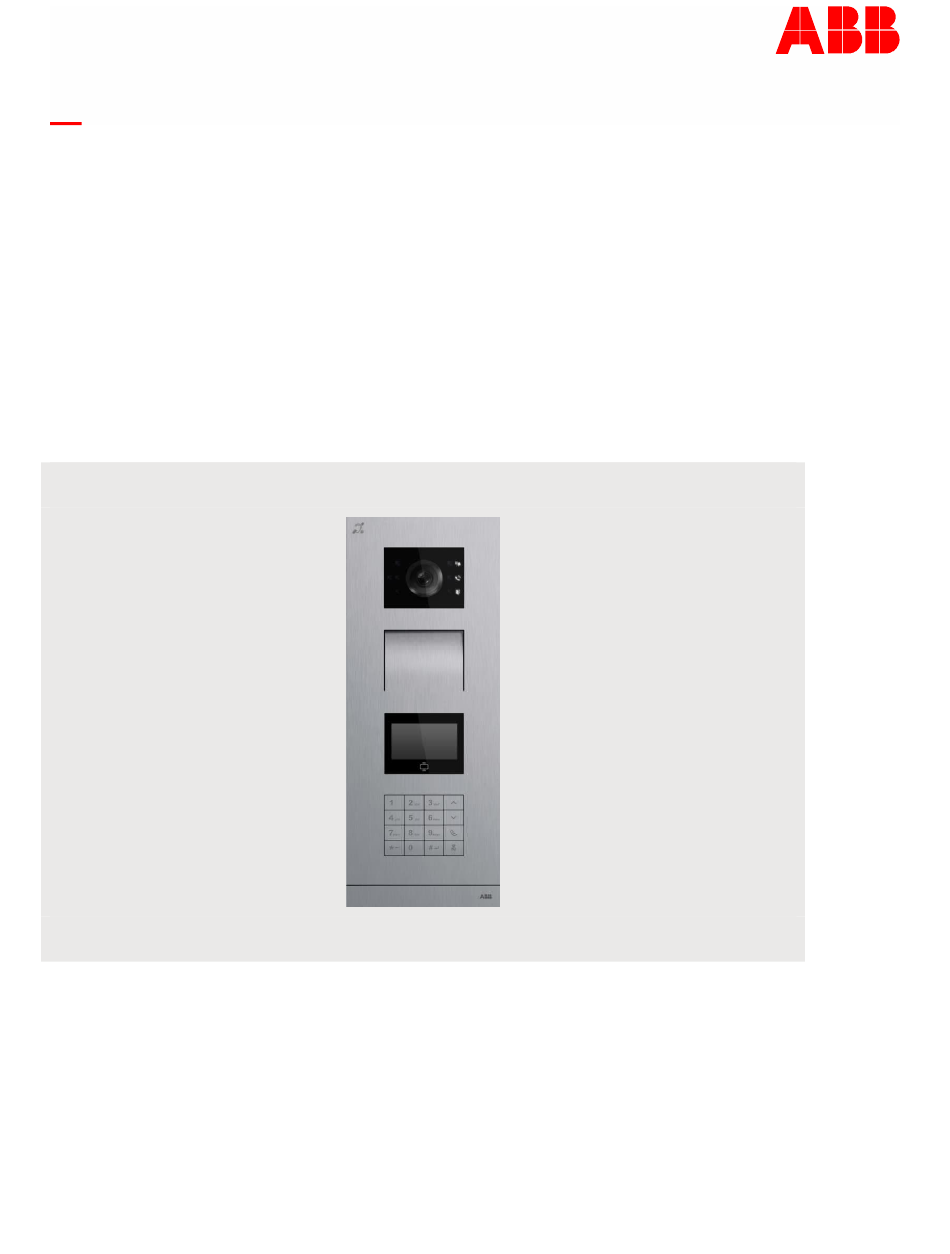

- Page 1 2TMD041800D0014 │ 23.11.2022 Product manual ABB-Welcome IP H8138.K-. IP keypad outdoor station...
-
Page 2: Table Of Contents
Tab le of c ont e nts Notes on the instruction manual ......................4 Safety ..............................4 Intended use ............................5 Environment ............................6 ABB devices ..........................6 Product description ..........................7 Device type ..........................7 Control elements........................8 Terminal description ........................9 Lock type and connection ...................... - Page 3 Table of contents 10.5 Backup/Restore ........................31 10.6 Malware prevention solution ..................... 31 10.7 Password rule .......................... 31 Notice ..............................32 Product manual 2TMD041800D0014 │3...
-
Page 4: Notes On The Instruction Manual
Please keep this manual in a safe place. If you pass the device on, also pass on this manual along with it. ABB accepts no liability for any failure to observe the instructions in this manual. Safety... -
Page 5: Intended Use
Intended use Intended use As part of the ABB-Welcome IP system, this device can only be used with accessories from that system. Security mode This outdoor station runs in "Security mode" by default to guarantee high security. In "Security mode", this outdoor station requires a certificate issued by the management software before it can function normally. -
Page 6: Environment
ABB devices All packaging materials and devices from ABB bear the markings and test seals for proper disposal. Always dispose of the packing materials and electric devices and their components via an authorized collection facility or disposal company. -
Page 7: Product Description
Product name Colour number Unit: mm H81383K-S 2TMA130010X0037 OS, IPkeypad, with Stainless 135 x 349 x 29 display, ID steel H81384K-S 2TMA130010X0038 OS, IPkeypad, with Stainless 135 x 349 x 29 display, Desfire/IC steel H81381K-W 2TMA130010W0033 OS, IPkeypad, with White... -

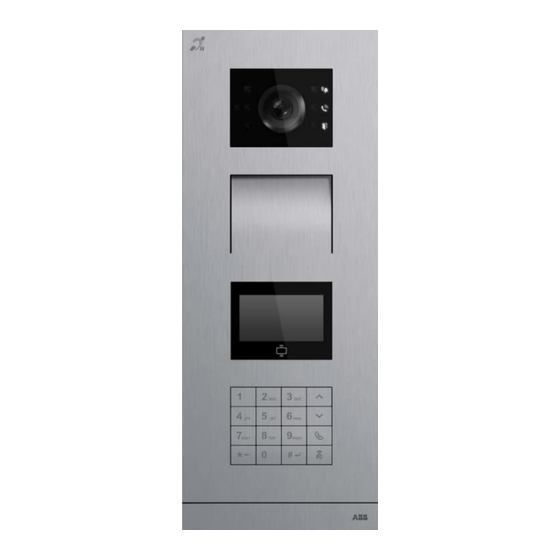

Page 8: Control Elements
Product description Control elements Function Camera Speaker and microphone integration Display module with ID/IC card reader Keypad End strip Product manual 2TMD041800D0014 │8... -
Page 9: Terminal Description
Product description Terminal description Function Reset button Micro USB update connector Plug-in clamps (DC+-GND) for standalone power supply Plug-in clamps (LOCK-GND) for door opener Plug-in clamps (COM-NC-NO) for floating output, door opener LAN (PoE) Connector for next module Connector for exit button Connector for the sensor used for door status detection Connector for 5"... -
Page 10: Lock Type And Connection
Product description Lock type and connection Lock type Operation type Voltage Wiring type Electrical strike ⎓ Power on to open Type A/B 12 V lock, 12V Electrical strike ⎓ Power on to open Type B 24 V lock, 24V Electrical rim Power on to open ⎓... -
Page 11: Technical Data
Technical data Technical data Designation Value Rating voltage 24 VDC Operating voltage range 20-27 V DC 27 V DC, 455 mA Rating current 24 V DC, 500 mA Operating temperature -40 °C…+55 °C Product dimensions 135 mm x 348.9 mm x 17.6 mm Display type Display size 57.8 mm ×... -
Page 12: Mounting/Installation
Mounting/Installation Mounting/Installation Warning Electric voltage! Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death. – Disconnect the mains power supply prior to installation and/or disassembly! –... -
Page 13: Mounting
Mounting/Installation Mounting 7.2.1 Preparation Use gloves to protect yourself against cuts. 7.2.2 Installation height 1.5 m 5 feet Product manual 2TMD041800D0014 │13... - Page 14 Mounting/Installation Note The following installation situations must be avoided without fail to ensure picture quality: Direct light ■ Direct sunlight ■ Extremely bright picture background ■ Highly reflective walls on the opposite side of the door station ■ Product manual 2TMD041800D0014 │14...
-
Page 15: Surface-Mounted Installation
Mounting/Installation 7.2.3 Surface-mounted installation 40 mm 71 mm Product manual 2TMD041800D0014 │15... -
Page 16: Flush-Mounted Installation
Mounting/Installation 7.2.4 Flush-mounted installation 1. Flush-mounted without pre-installation box 46 mm 117 mm Product manual 2TMD041800D0014 │16... - Page 17 Mounting/Installation 2. Flush-mounted with pre-installation box 126 m m 68 m m Product manual 2TMD041800D0014 │17...
-
Page 18: Cavity Wall Installation
Mounting/Installation 7.2.5 Cavity wall installation Product manual 2TMD041800D0014 │18... -
Page 19: Dismantling
Mounting/Installation 7.2.6 Dismantling Product manual 2TMD041800D0014 │19... -
Page 20: Commissioning
Commissioning Commissioning Accessing the "Menu" screen In standby mode, press [#*] + system password + [#] to access the "Menu" screen. Note The system password must be changed the first time you access "Menu" screen. (The system default is 345678. This password should only be used for initial setting work and should be changed to another password. -
Page 21: Engineering Settings
Commissioning Engineering settings On the "Menu" screen, click "Engineering settings" to access the corresponding screen. Engineering settings overview Level 1 Level 2 Level 3 Option OS = Outdoor station ■ Device type GS = Gate station ■ Device attribute Outdoor station: 01...64 ■... -
Page 22: Access Control Settings
Commissioning Access control settings On the "Menu" screen, click "Access control" to access the corresponding screen. Access control overview Level 1 Level 2 Level 3 Option Change public password The system default is 123456 Enable public ■ Password password Off (default) ■... -
Page 23: System Settings
Commissioning System settings On the "Menu" screen, click "System settings" to access the corresponding screen. System settings overview Level 1 Level 2 Level 3 Option ■ Relatively low ■ Medium Voice volume ■ Relatively high (default) ■ High ■ ■ Key tone On (default) ■... - Page 24 Commissioning Level 1 Level 2 Level 3 Option L1 LOCK-GND 1...10 s Unlock time L2 NO-NC-COM 1...10 s Off (default) Door status alarm ■ On (alarm sound) ■ Off (default) ■ Temper alarm ■ Off (default) Call forward (to guard unit) System settings Off (default) ■...
-
Page 25: Logical Address Settings
Commissioning Logical address settings The call mode should be set to "logical address" before use. On the "Menu" screen, click "Logical address settings" to access the corresponding screen. Enter "Logical address" + [\/] + "Physical address"+ [#] to add a new one. Modify Enter "Logical address"... -
Page 26: Operation
Operation Operation Calling a resident [1] Device type = OS In standby mode, enter the room no. (e.g. 0101), press [*] to end the call. [2] Device type = GS In standby mode, enter the building no. + room no. (e.g. 020101), press [*] to end the call. Forward to GU If "Call forward"... -
Page 27: Releasing A Lock
Operation Releasing a lock 9.3.1 Releasing a lock by swiping cards Please enroll the ID/IC cards before use. Please see the "Access control overview" chapter for more details. Swipe registered ID/IC cards near the area (see diagram below) to release the lock. IC card specification Operating frequency 13.56 MHz... -
Page 28: Releasing A Lock By Pressing The Exit Button
Operation 9.3.2 Releasing a lock by pressing the exit button Press an exit button connected to this outdoor station to release the lock. Exi t b u tto n 9.3.3 Releasing a lock by entering the public password The "public password" must be enabled before use. Please see the "Access control overview" chapter for more details. -
Page 29: Releasing A Lock By Entering A Private Password
Operation 9.3.4 Releasing a lock by entering a private password The "private password" must be enabled before use. Please see the "Access control overview" chapter for more details. In standby mode, [1] Device type = Outdoor station Release default lock: [*1#] + room no. + [#] + private password + [#] Release auxiliary lock: [*2#] + room no. -
Page 30: Cyber Security
H8138.K-. product, the network, its system and interfaces against any kind of security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. ABB and its affiliates are not liable for damages and/or losses related to such security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. -
Page 31: Deployment Guideline
Malware prevention solution The H8138.K-. device is not susceptible to malware, because custom code cannot be executed on the system. The only way to update the software is by firmware upgrades. Only firmware signed by ABB can be accepted. 10.7 Password rule The user must change the engineering password when accessing the engineering settings for the first time. - Page 32 We reserve the right to at all times make technical changes as well as changes to the contents of this document without prior notice. The detailed specifications agreed to at the time of ordering apply to all orders. ABB accepts no responsibility for possible errors or incompleteness in this document.
- Page 33 Contact us Notice We reserve the right to at all times make technical changes as well as ABB Xiamen Smart Technology Co., Ltd. changes to the contents of this No. 881, FangShanXiEr Road, Xiang’An Industrial document without prior notice. Area, Torch Hi-Tech Industrial Development...
