Summary of Contents for Philips NPX230/INT

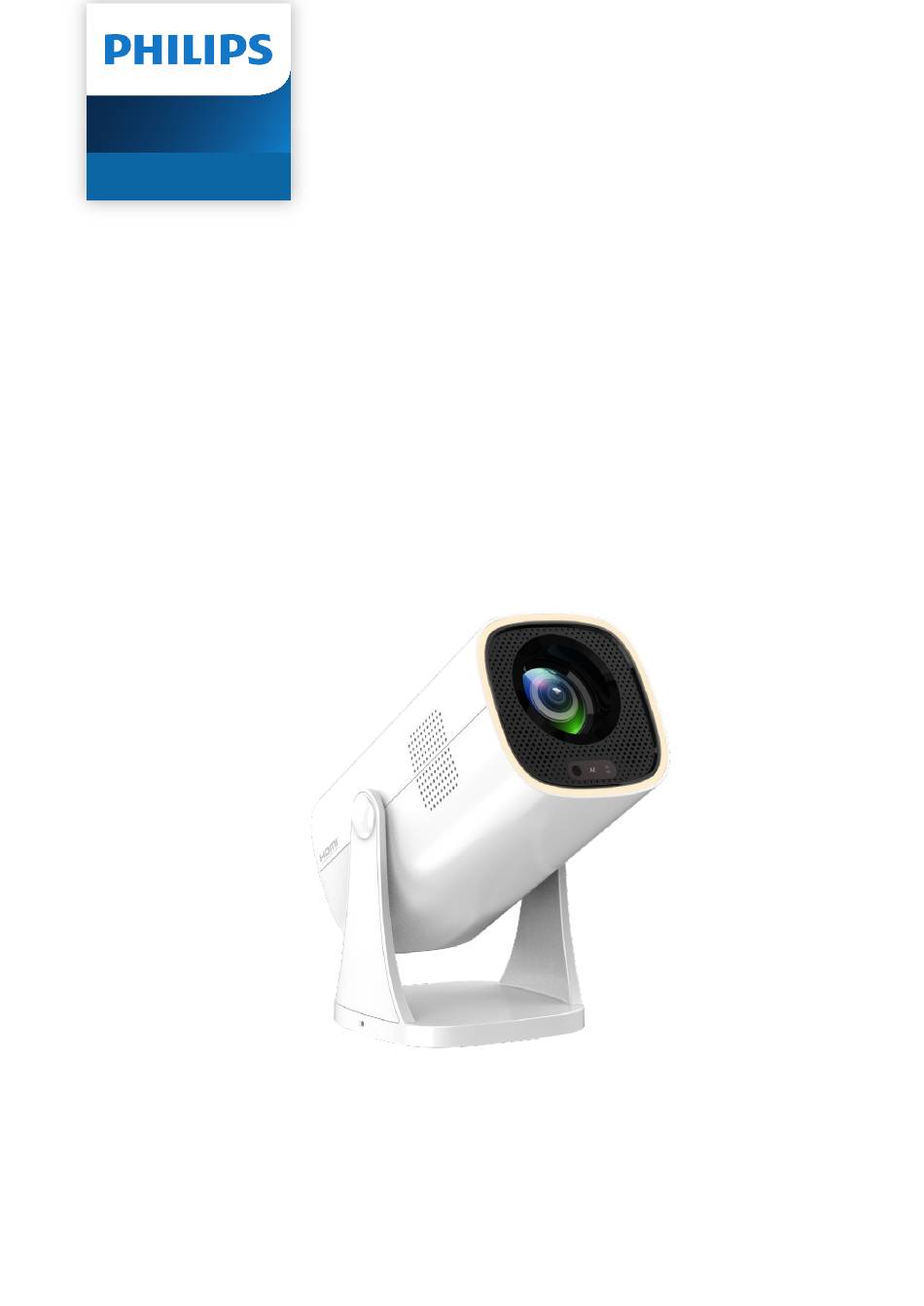

- Page 1 User Manual NeoPix 230 Smart Home Projector Register your product and get support at www.philips.com/support...
-
Page 2: Table Of Contents
Table of contents Introduction �������������������������������������������������3 6 Play media from USB storage devices ����������������������������������������������������������������18 Dear customer ...............3 Connect a USB storage device ......18 About this user manual ..........3 Play videos ..............19 What’s in the box ............3 Play audios ..............19 Customer service center ..........3 View images ..............19 General safety information ���������������... -
Page 3: Introduction
Introduction What’s in the box NeoPix 230 projector (NPX230/INT) Remote control with 2 AAA batteries Dear customer Quick Start Guide with Warranty Card Thank you for purchasing this projector. Wall anchors x 4 We hope you enjoy this product and the many... -
Page 4: General Safety Information
If the product gets too hot or emits smoke, shut it down immediately and unplug the power cable. Have your product checked by an authorised service center. Keep the product away from open flames (e.g. candles). Philips · NeoPix 230... -
Page 5: Power Supply
2 Overview Power supply Use only a power adapter which is certified for this product (see Technical data, page 30). Rear view Check whether the mains voltage of the power supply matches the mains voltage available at a b c the setup location. -
Page 6: Front View
Open the options menu when an app is selected on the Home screen. • Show or hide the control bar, or open the more options menu when a video is playing . Access the Home screen of the built-in operating system. Philips · NeoPix 230... -
Page 7: Initial Setup
3 Initial setup • Increase or decrease the volume. • Adjust the brightness of the LED light Notice when the LED light is on. Make sure all devices are disconnected from their power supplies before establishing or changing any • Adjust the image focus (sharpness) connections. - Page 8 From the Home screen, open the sidebar by pressing on the remote control. Then select Image > Projection Direction > Ceiling Rear. Philips · NeoPix 230...
-
Page 9: Connect To Power Supply
Align the metal plate holes with the holes in the ceiling. Secure the metal plate to the ceiling by inserting and tightening the 4 sharp-tipped screws. Align the 4 slots of the ceiling hanging system of the projector with the protruding tabs of the metal plate. -
Page 10: Power On And Set Up The Projector
Then When auto keystone correction is off, you select Digital Zoom. can manually make the image rectangular by Press to adjust the screen size. You adjusting the horizontal and vertical keystone Philips · NeoPix 230... -
Page 11: Set Up The Projector System
angles. From the Home screen, open the sidebar by pressing on the remote control. Then select Keystone > H/V Correction. Follow the on-screen instructions to adjust the image shape. • Language: Select your preferred display language. • Time Zone: Set the time zone used by the projector by selecting a city. -
Page 12: Use Home Screen
The remote control gives you immediate and easy access to everything on the Home screen. • Press the navigation button to select an item (e.g. an app, a setting or a button) on the screen. Philips · NeoPix 230... -
Page 13: Open And Configure Apps
Bluetooth device, page 16 to enable it. • On the Bluetooth setting screen, the remote control appears as Philips AirMote. • The LED indicator near the top of the remote control lights up when you press a The apps on the Home screen mainly fall into button. - Page 14 Update software, page 27. • Open the app by selecting Open. • Uninstall the app by selecting Uninstall and following the on-screen instructions. • View the version and build numbers of the app at the bottom of the menu. Philips · NeoPix 230...
-
Page 15: Connect To Other Devices
5 Connect to other You may need to press Esc to hide the on- screen keyboard. devices • Use the arrow keys and Enter to navigation the projector's user interface. They work like the navigation buttons and OK on the remote control respectively. -
Page 16: Connect To A Dongle
Before you can use the projector with a Available devices. Bluetooth device for the first time, you must pair the projector with it. The projector will Tip: To manually rescan for available automatically connect to a device as soon as Philips · NeoPix 230... - Page 17 Tips for connecting audio output devices, select Scan for devices and press the OK button. devices Select your Bluetooth device from the list of available devices and press the OK button The following are the tips for connecting to start the pairing. Bluetooth audio output devices such as Bluetooth speakers and headphones.
-
Page 18: Connect To Wired Speakers Or Headphones
VLC app. Connect your USB storage device to the USB port on the projector. After connecting the speakers or headphones, press on the remote control to adjust the volume to the desired level. Philips · NeoPix 230... -
Page 19: Play Videos
Play videos Play audios From the projector's Home screen, open You can play audios in a similar way as you play the VLC app. videos. The major differences are: Select Browsing from the left navigation • When an audio is playing, its filename and pane, and then select and open the folder the control bar are always visible on the for the USB storage device, which is to the... -
Page 20: Wireless Projection
If the box next • The projector displays its device name to AirPlay is not checked, press the OK and the status of the Screencast button to check it. connection on the screen. Philips · NeoPix 230... -
Page 21: Stream Videos/Pictures From Ios Devices
Stream videos/pictures from iOS devices What you need • An iOS device such as an iPhone or an iPad. Make sure you have connected the projector and your iOS device to the same Wi-Fi network. Make sure you have enabled AirPlay on the projector. -
Page 22: Use The Led Light
Wi-Fi network, page 11. • Press to adjust the brightness of the • Bluetooth: Access the Bluetooth screen. To light when the light is on. learn how to connect a Bluetooth device, see Connect to a Bluetooth device, page Philips · NeoPix 230... -
Page 23: Change More Settings
Change more settings • Image: Access the Image Settings screen. The following settings are available: If you open More Settings from the sidebar, you • Projection Direction: Adjust the will see the following screen. projection to the correct direction based on how the projector is installed. -
Page 24: Change Settings Using The Settings Menu
MAC address, serial number, launcher version and built-in storage of this product. • Picture Mode: You can set the projector to use the following picture modes, depending on your viewing environment or preferences. After selecting a picture mode, Philips · NeoPix 230... - Page 25 you can modify its settings. to medium levels. • Standard: Display the picture with • Output: Select the projector's audio output normal brightness, contrast, saturation, type. hue and sharpness levels. • Internal Speaker: Use the projector's • Vivid: Sharpen the image by increasing internal speaker to output audio.
- Page 26 After the factory reset, the projector will restart and allow you to set it up as new. • Support: View the website addresses, QR code and email address for getting help information on the projector. Philips · NeoPix 230...
-
Page 27: Maintenance
Do not use any liquid cleaning Visit www.philips.com/support, find your agents for cleaning the lens, to avoid product (model number: NPX230/INT), damaging the coating film on the lens. open its support page and locate "Software & drivers". Then check the latest software Update software version there. -
Page 28: Troubleshooting
• Check that the power cable is connected correctly. The projector cannot read the USB storage • The projector does not support the exFAT file device. system. • Format the USB storage device in FAT32 or NTFS format, then use it. Philips · NeoPix 230... - Page 29 Problem Solution The projector does not react to remote • Check the batteries of the remote control. control commands. The temperature of the projector’s surface • For this projector it is normal to generate is warm. moderate heat during operation. The projector does not work after I connect •...
-
Page 30: Appendixes
Wi-Fi......802.11a/b/g/n/ac, 2.4 + 5 GHz Wi-Fi screen mirroring ........... yes Bluetooth .....To connect gamepad, speaker, mouse, keyboard, etc. Power source Power consumption ...... operating: 52 W ............standby: 0.25 W Input: AC 100-240 V, 50/60 Hz, 1.3 A (Max) Philips · NeoPix 230... -
Page 31: Ce Statement
Connect the equipment into an outlet on a circuit different from that to which the The Declaration of Compliance can be receiver is connected. consulted on the site www.philips.com. • Consult the dealer or an experienced radio/ Frequency bands Maximum output TV technician for help. -
Page 32: Other Notice
The desire of Screeneo Innovation SA is to other than those designated as original operate systems respecting the environment Screeneo Innovation SA/PHILIPS products or and consequently it has decided to integrate Screeneo Innovation SA/PHILIPS approved environmental performances in the life cycle products. - Page 33 Route de Lully 5c - 1131 Tolochenaz - Switzerland Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. Screeneo Innovation SA is the warrantor in relation to the product with which this booklet was packaged.
