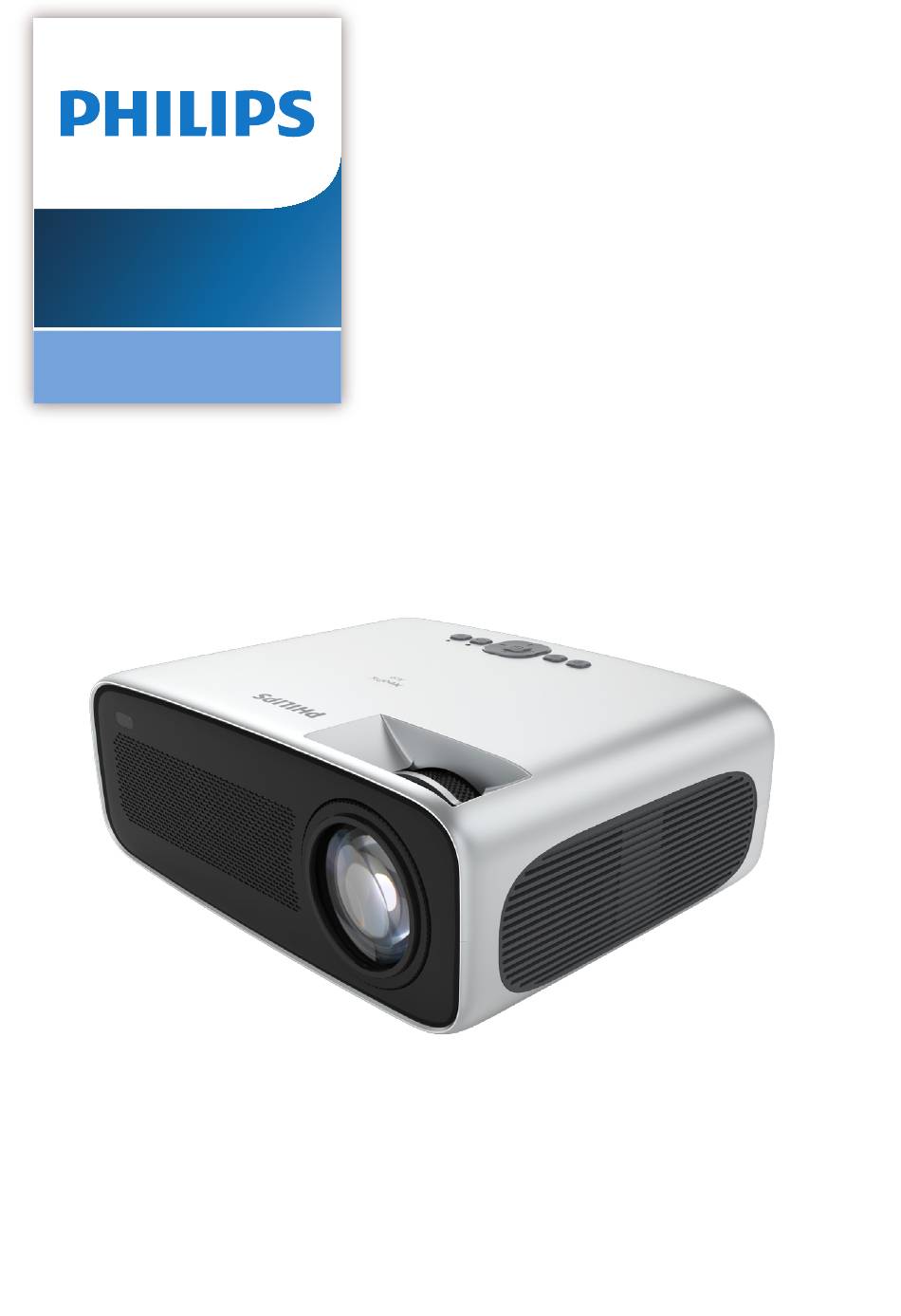

- Page 1 User Manual NeoPix ACE Home projector Register your product and get support at www.philips.com/support...
-
Page 2: Table Of Contents
Table of contents Introduction �������������������������������������������������3 9 Change settings ���������������������������������� 15 Dear customer ...............3 Picture settings ............15 About this user manual ..........3 WiFi settings ..............15 What’s in the box ............3 Bluetooth settings ............15 Product highlights ............3 Language settings ............15 General safety information ��������������� 4 Restore default settings ...........15 10 Service ��������������������������������������������������16 Setting up the product .......... -
Page 3: Introduction
Introduction What’s in the box NeoPix projector (NPX647) Remote control with 2 AAA batteries Dear customer A/C power adapter Thank you for purchasing this projector. Lens cover We hope you enjoy this product and the many Quick Start Guide functions it offers! AC power cable with plug x 4 About this user manual The quick start guide supplied with this product... -
Page 4: General Safety Information
If the product gets too hot or emits smoke, shut it down immediately and unplug the power cable. Have your product checked by an authorised service centre. Keep the product away from open flames (e.g. candles). Philips · NeoPix ACE... -
Page 5: Power Supply
2 Overview Power supply Use only a power adapter which is certified for this product (see Technical data, page 19). Top view Check whether the mains voltage of the power supply matches the mains voltage available at the setup location. This product complies with the voltage type specified on the product. -
Page 6: Front View
• When the projector is switched on, the LED turns green. When the projector is in standby, the LED turns red. Connect to the power supply. VGA port Connect to the VGA port on a computer. Philips · NeoPix ACE... -
Page 7: Access Home Menu
3 Initial operation Access home menu The home menu provides easy access to connected devices, setup and other useful Placing projector features in the projector. You can install the projector in four different Press . The home menu is displayed. configuration. -
Page 8: Changing Screen Size
Avoid exposure to open fire and water. press , and select Settings - Advanced Settings - Projection Location - Rear Replace empty batteries immediately. Ceiling. Remove the batteries from the remote control if not in use for long periods of time. Philips · NeoPix ACE... -
Page 9: Power On And Setup
Open the battery compartment. To adjust image focus, turn the focus knob on the top of the projector. Insert the supplied batteries (type AAA) with correct polarity (+/- ) indicated. Close the battery compartment. NeoPix To correct keystone or distorted images to be rectangular or square, turn the keystone •... -
Page 10: Connect To Playback Devices
Notice Many laptops do not activate the external video output automatically when you connect a second display such as a projector. Check your laptop user manual to find out how to activate the external video output. Philips · NeoPix ACE... -
Page 11: Connecting To External Speakers Or Headphones
5 Wireless Notice AUX connection only works through VGA projection with connection. Android devices Connecting to external speakers or headphones What you need Connect external speakers or headphones to • An Android device which supports Miracast the projector. With this connection, audio from (or Screen Mirroring). -
Page 12: Wireless Projection With Ios Devices
On your iPhone, access ‘Control Center’ by sliding the screen up, and select the ‘Screen Mirroring’ option. Then select the projector name under ‘Screen Mirroring’ to connect your iPhone to the projector. Philips · NeoPix ACE... -
Page 13: Connect To Wireless Speaker
7 Connect to 8 Media playback wireless speaker This section helps you use the projector to play media from a wide range of sources. Notice Through Bluetooth, you can stream music wirelessly from the projector to a Bluetooth The projector supports a USB storage speaker. -
Page 14: Music Playback
Fast search backward or forward • Pause or resume play • Stop play • Select a play mode: play only the current file/repeat all /repeat one Select a control function and press OK to trigger the control. Philips · NeoPix ACE... -
Page 15: Change Settings
9 Change settings Notice The projector cannot connect to a smartphone or tablet for streaming This section helps you change the settings of music through Bluetooth. the projector. Picture settings Language settings Press Press Select Settings, and then press OK. Select Settings, and then press OK. -
Page 16: Service
Press , and then select Settings - The latest software of the projector can be Advanced Settings - Firmware Upgrade - found on www.philips.com/support for you USB. to get the best features and support from the projector. Follow the on-screen instructions to complete the update. - Page 17 Problems Solutions The projector cannot be turned on. • Disconnect and reconnect the power cable, and try to turn the projector on again. The projector cannot be turned off. • Press and hold longer than ten seconds. If this does not work, disconnect the power cable. No image from the external HDMI device.
- Page 18 What to do if the projector does not work • Check that the HDMI cable is plugged in correctly. when connecting to a notebook PC? • Make sure that the notebook PC has been switched to projector display. Philips · NeoPix ACE...
-
Page 19: Appendix
11 Appendix Power source Power consumption .....operating: 135 W ............Standby: 0.3 W Technical data Power supply ........power adapter ....Input: 100-240V~, 50/60Hz, 2.5 A (max) Technology/optical ............Output: DC 19 V, 7 A Display technology ..........LCD Light source ............LED Supported devices Resolution ............ - Page 20 This device may not cause harmful The Declaration of Compliance can be interference, and consulted on the site www.philips.com/ this device must accept any interference projection. received, including interference that may cause undesired operation. Preservation of the environment as part...
- Page 21 Screeneo Innovation SA/PHILIPS products or package recovery and recycling infrastructures. Screeneo Innovation SA/PHILIPS approve d Please respect the sorting rules set up locally products.
- Page 22 PHILIPS and the PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product was brought to the market by Screeneo Innovation SA., further referred to in this document as Screeneo Innovation SA., and is the manufacturer of the product.
