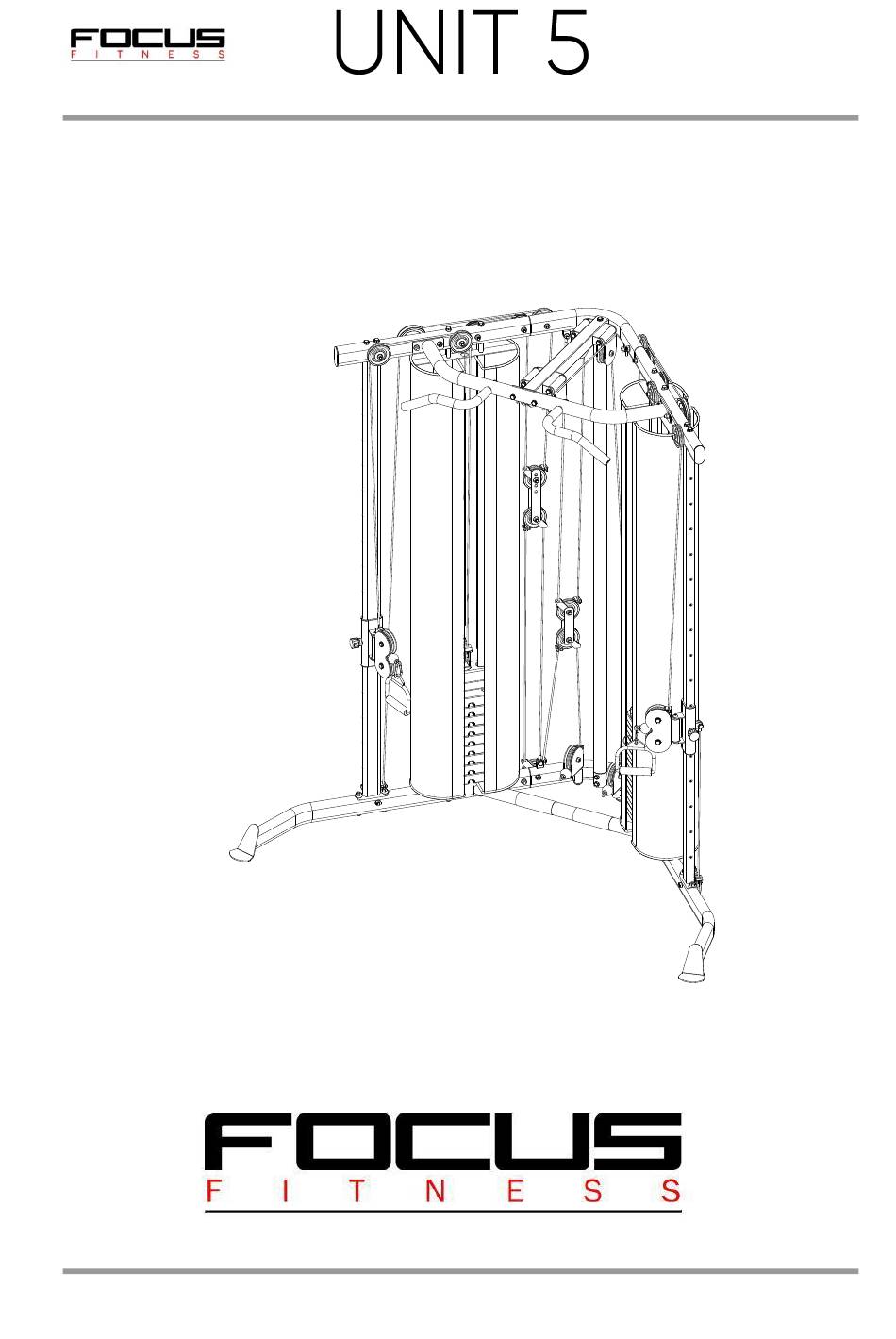

- Page 1 Manual – Focus Fitness – UNIT 5 – HG3060A...
- Page 2 INDEX 1 OVERVIEW DRAWING / OVERZICHTSTEKENING ................ 3 2 PARTS LIST / ONDERDELENLIJST ....................4 3 ASSEMBLY INSTRUCTIONS / MONTAGE-INSTRUCTIES ............. 8 Manual – Focus Fitness – UNIT 5 – HG3060A - 2 -...

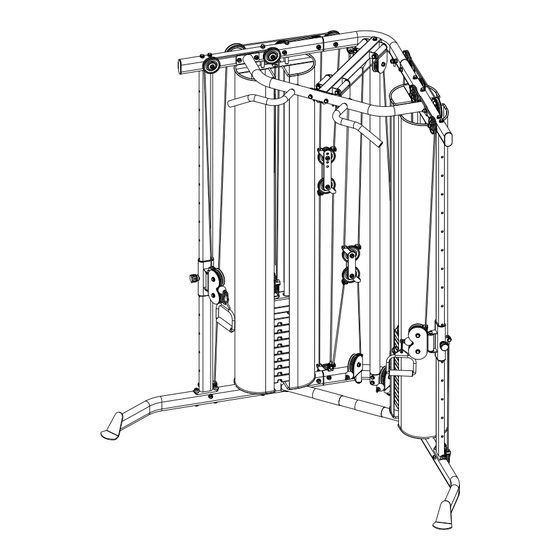

- Page 3 1 OVERVIEW DRAWING / OVERZICHTSTEKENING 29 30 Manual – Focus Fitness – UNIT 5 – HG3060A - 3 -...
- Page 4 WEIGHT PLATE SELECTOR ROD SECURE BUSHING CLOTH SUPPORT STARTUP CABLE HANDLE (NT0450) BUSHING SHELL CLOTH LEFT BASE PULLEY-Φ90 PULLEY-Φ70 RUBBER DONUT BUSHING PULLEY PROTECTION FAST PIN HOOK CABLE-9230mm CABLE-3180mm Manual – Focus Fitness – UNIT 5 – HG3060A - 4 -...
- Page 5 HEX HEAD BOLT M10*95 R-WASHER 8 BIG WASHER 8 R-WASHER 10 WASHER 10 LOCK NUT M10 LOCK NUT M8 BIG WASHER-12 PULLEY-Φ115 SQUARE NECK BOLT M10*90 HEX HEAD BOLT M10*140 Manual – Focus Fitness – UNIT 5 – HG3060A - 5 -...
- Page 6 DRAAISCHIJFBLOK (IV) TOP PLAAT GEWICHTSPLAAT SLEUTELSTANG BEVEILIGINGSBUS KUSSENSTEUN STARTKABEL HANDVAT (NT0450) BUSHING KOPPELING LINKER BASIS KATROL-Φ90 KATROL-Φ70 RUBBER DONUT BUSHING BESCHERMING KATROL SNELLE PIN KABEL-9230mm KABEL-3180mm KABEL-4010mm ZESKANTBOUT M8*16 Manual – Focus Fitness – UNIT 5 – HG3060A - 6 -...
- Page 7 BOUT MET VIERKANTE HALS M10*95 ZESKANTBOUT M10*95 GROTE SLUITRING 8 GROTE SLUITRING 8 R-SPROEIER 10 SLUITRING 10 MOER M10 MOER M8 GROTE SLUITRING-12 KATROL-Φ115 BOUT MET VIERKANTE HALS M10*90 ZESKANTBOUT M10*140 Manual – Focus Fitness – UNIT 5 – HG3060A - 7 -...
- Page 8 (E) down upright frame (D), secure it with (6). Attach joint rod (L) to joint base (A) with (12) and (26). NOTE: The pulley with pulley protection don’t install temporarily, until the cable to wear. Manual – Focus Fitness – UNIT 5 – HG3060A - 8 -...
- Page 9 (E) langs de rechtopstaande basis (D) naar beneden, zet hem vast met (6). Bevestig de scharnierstang (L) aan de scharnierbasis (A) met (12) en (26). OPMERKING: De katrol met katrolbescherming niet tijdelijk installeren, tot de kabel slijt. Manual – Focus Fitness – UNIT 5 – HG3060A - 9 -...
- Page 10 (18), (20), (21), (22), (29) and (30) as shown. 13. Attach swivel pulley block III (Q) to top cross beam (J) with axes (F), bushing (4), (29) and (13). Manual – Focus Fitness – UNIT 5 – HG3060A - 10 -...
- Page 11 14. Bevestig de bovenste dwarsbalk (J) aan de bovenste verbindingsbuis (I) en verbindingsbalk (K) met (17), (19), (28) en (29), zoals afgebeeld. 15. Bevestig de verbindingsstang (L) aan de bovenste dwarsbalk (J) met (23) en (29). Manual – Focus Fitness – UNIT 5 – HG3060A - 11 -...
- Page 12 CABLE 1 / KABEL 1 15 29 15 29 #9 cable: from a→b→c→d→e→f→g→h→i→j→k Manual – Focus Fitness – UNIT 5 – HG3060A - 12 -...
- Page 13 CABLE 2 / KABEL 2 i, m #10 cable: from l→m→n→o Manual – Focus Fitness – UNIT 5 – HG3060A - 13 -...
- Page 14 CABLE 3 / KABEL 3 15 29 30 29 r, t #11 cable: from p→q→r→s→t Manual – Focus Fitness – UNIT 5 – HG3060A - 14 -...
-
Page 15: S I Z E C H A R T
S I Z E C H A R T...
