- Page 2 Products equipment, please check the support area of our web Harris Corporation shall not be liable for errors contained site. You can also send e-mail to: support@intraplex.com herein or for incidental or consequential damage in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
Transmission Line Testing .................26 Equipment Testing....................26 Troubleshooting ....................27 Section 5 - SPECIFICATIONS ..................29 List of Figures: Figure 2-1: PT-D350 Transmitter, Block Diagram............3 Figure 2-2: PR-D350 Receiver, Block Diagram ..............5 Figure 2-3: PT-D350 Transmitter, Top View ..............6 Figure 2-4: PR-D350 Receiver, Top View..............7... - Page 4 SCB ADDRESS Switch Bank ...............17 Table 2-8: Remote Configuration Settings (P Codes)..........19 Table 2-9: PT-D350 Transmitter - Remote Status Messages (S Codes)....21 Table 2-10: PR-D350 Receiver - Remote Status Messages (S Codes)......22 Table 3-1: Sample PT-D350 Response To A CONFIG? Query......25 Table 4-1: Troubleshooting Tips................28...
-
Page 5: Section 1 - Introduction

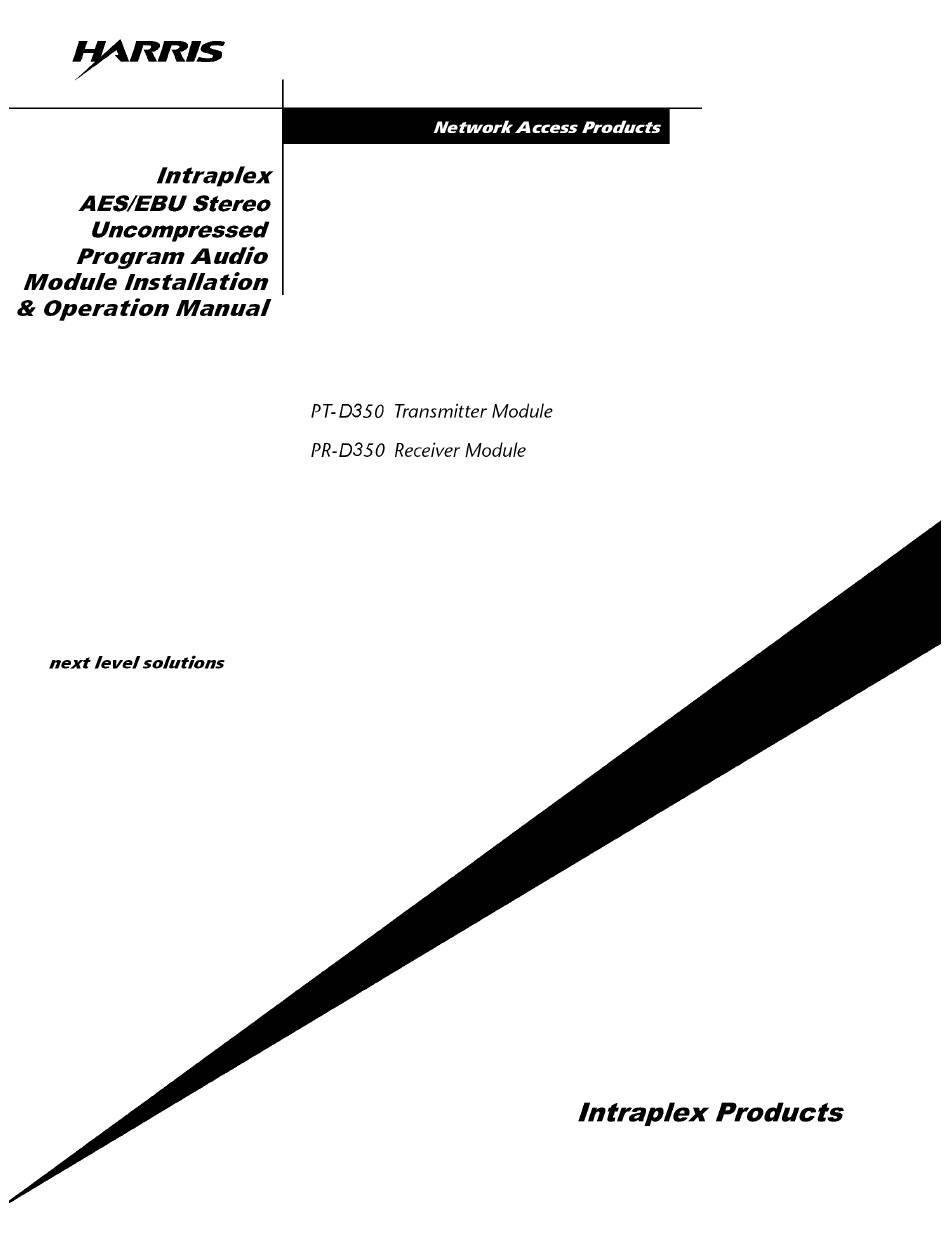

Issue 1, July 1996 Section 1 INTRODUCTION This manual describes the setup and installation procedures for the Intraplex PT-D350 and PR- D350 AES/EBU Program Audio Modules. Experienced users may refer directly to the tables in Section 2 for configuration data. -
Page 6: Section 2 - Functional Description And Setup
600 ohms. It adds two bits to each sample for CRC error detection. A green Service LED stays on when the PT-D350 is powered and operating. A red Fail LED indicates hardware failure (DSP or logic circuitry malfunction). -
Page 7: Configuration Errors
Serial Control Bus Multiplexer Backplane Figure 2-1 PT-D350 Transmitter, Block Diagram 2.1.1 Configuration Errors Time slot assignment does not wrap around. If the selected starting time slot is too high to allow the entire output signal to fit into the aggregate circuit, this is considered a configuration error;... -
Page 8: Pr-D350 Receiver
It lights a green Data Activity LED on each channel to indicate input activity It controls the LED level indicators (calibrated the same as those on the PT-D350) It provides error mitigation based on the 2-bit CRC code in each digital sample A green Service LED stays on when the PR-D350 is powered and operating. -
Page 9: Alerts/Alarms
PR-D350 Receiver, Block Diagram Alerts/Alarms The PT-D350 and PR-D350 modules send a card-level ALARM signal to the shelf common card if the red Fail LED is lit, indicating a DSP or logic circuitry malfunction. The modules issue no card-level ALERT signals. -
Page 10: Figure 2-3 Pt-D350 Transmitter, Top View
(5 1/4" high) shelf, and at the right in a compact (1 3/4" high) shelf. ADDRESS OPEN OPEN TIME SLOT LEVEL LEVEL LEFT RIGHT Figure 2-3 PT-D350 Transmitter, Top View... -
Page 11: Figure 2-4 Pr-D350 Receiver, Top View
Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 IMPORTANT!!! All modules must be inserted so that the white eject tab is at the bottom in a full size (5 1/4" high) shelf, and at the right in a compact (1 3/4"... -
Page 12: Figure 2-5 Pt-D350 Transmitter, Front View
INPUT CARD LEVEL LEVEL FAIL LEFT RIGHT CHANNEL CHANNEL SW3 & SW4 behind SW2 AES/EBU ERRORS Figure 2-5 PT-D350 Transmitter, Front View TERM NOT USED NOT USED REMOTE NOT USED 48KSPS RT CHAN TIME SLOT 15 KHZ SELECT SERVICE INDICATOR... -
Page 13: Table 2-2 Led Indicators
Signal strength > +20 dBm (overload) FAIL Fail Indicator Hardware failure An ALARM signal is sent to the multiplexer common card if this LED is lit PT-D350 ONLY: AES/EBU Error Yellow Indicates an AES/EBU error has been Indicator detected PR-D350 ONLY:... -
Page 14: Table 2-3 Configuration Switches
Set for 15 kHz audio bandwidth. Set for one-channel operation (left channel only). RT CH DOWN Set for two-channel operation. Normal - ones-density enforcement not active. (PT-D350 only) DOWN Ones-density enforcement active (for use on AMI circuits only). Tone generator off, transmit live data. TEST... -
Page 15: Drop And Insert Operation
Site 3. Individual payload channels may connect Sites 1 and 2, 1 and 3, or 2 and 3. Also, a PT-D350 transmitter may be installed at Site 1 or Site 3 and be received simultaneously by PR-D350 modules (or PR-350 modules for analog output) at both of the other sites. For... -
Page 16: Table 2-4 Starting Time Slot Selection
Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 Table 2-4 Starting Time Slot Selection Time Slot (T1 Time Slot Positions* or VRM) (2 MB) 1 2 3 4 5 U U U U U 0 (illegal) -
Page 17: Aes/Ebu Channel Status
The AES/EBU data format includes channel status information on the audio signal being transported. This channel status information may be structured in either consumer format or professional format, as described in the following sections. The PT-D350 and PR-D350 modules support both formats. -
Page 18: Aes/Ebu Professional Format
A channel outgoing audio and sets the A channel validity bit to 1. The B channel validity bit is always set to 0. RX Validity bit and error handling: both outputs of the PT-D350 are muted if any of these occur:... -
Page 19: Table 2-6 Aes/Ebu Channel Status (C) Data: Professional Format
Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 Table 2-6 AES/EBU Channel Status (C) Data: Professional Format Byte Function Remarks 0 Consumer use RX: responds to either format 1 Professional use TX: can be set to either format... - Page 20 A channel outgoing audio and sets the A channel validity bit to 1. The B channel validity bit is always set to 0. RX Validity bit and error handling: both outputs of the PT-D350 are muted if any of these occur:...
-
Page 21: Remote Control Interface
Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 Remote Control Interface PT/PR-D350 modules can be used under local or remote control. When under remote control, certain configuration parameters can be changed only via the RS-232 remote port on the multiplexer. -
Page 22: P Codes
P02 = (B00000011); As you can see, there are three P codes for the PT-D350, and two for the PR-D350. Each is a number from 0 to 255, also represented as an eight-digit binary number (in parentheses). Either the decimal or the binary representation may be used for both setting and interpreting the P codes. -
Page 23: Table 2-8 Remote Configuration Settings (P Codes)
Intraplex Products Issue 1, July 1996 P3 controls the test tone generator on the PT-D350 and the output sample rate on the PR-D350. Whether decimal or binary, its only legal settings are 0 and 1. IMPORTANT: When using binary numbers with a SET command, they must be preceded by the letter "B", as for example:... - Page 24 0 = Normal - enforcement off 1 = Enforcement on (for AMI circuits only) Decimal: Test tone enable (PT-D350 only): 0 or 1 0 = Generator off, transmit live data 1 = 1004 Hz, +8 dBm test tone generator on...
-
Page 25: S Codes
>>>ALARM<<< (If there is one in effect) S01 = (B00000000); Table 2-9 shows the meaning of the S code on a PT-D350, and Table 2-10 the meaning of the S code on a PR-D350. Table 2-9 PT-D350 Transmitter: Remote Status Messages (S Codes) -
Page 26: Table 2-10 Pr-D350 Receiver: Remote Status Messages (S Codes)
Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 Table 2-10 PR-D350 Receiver: Remote Status Messages (S Codes) S Code Digit Description ALARM When present, indicates hardware failure. Configuration error: B00000000 0 = Normal -------↑ 1 = Configuration error exists. -
Page 27: Section 3 - Installation Procedure
Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 Section 3 INSTALLATION PROCEDURE Refer to the figures and tables in the previous section as necessary during this procedure. Power supply and time slot considerations may affect the installation of this module into an existing multiplexer shelf. - Page 28 To determine how many time slots are required for the chosen configuration, refer to Table 2-1. 10. PT-D350 ONLY - If this module is being used with multiplexer using AMI line coding, activate the ones-density enforcement mechanism by setting the AMI switch DOWN.
-
Page 29: Table 3-1 Sample Pt-D350 Response To A Config? Query
Table 3-1 Sample PT-D350 Response To A CONFIG? Query RESPONSE: MEANING: Valid command received Card in physical slot 8 is a PT-D350 CHANNEL CARD 8, TYPE 84 Remote control is on UNDER REMOTE CONTROL Service is off SRVC = OFF... -
Page 30: Section 4 - Testing And Troubleshooting
TESTING AND TROUBLESHOOTING Transmission Line Testing The PT-D350 module contains a test signal generator that inserts a 1004 Hz sine wave tone at +8.0 dBm on both channels simultaneously. This signal can be used to test the transmission line (T1, 2 MB, or other) without the need for external test equipment. -
Page 31: Troubleshooting
Connect an AES/EBU decoder to the output connector on the module adapter behind the PR-D350. Observe the LEDs on the PT-D350: The SRVC LED should be on, the FAIL and ERR LEDs should be off. Adjust the output level on the AES/EBU signal generator until the first three green LEVEL LEDs are on. -
Page 32: Table 4-1 Troubleshooting Tips
Replace module with a spare and call logic circuitry) Intraplex Customer Service at malfunction. (508) 692-9000 for a Return Material Authorization (RMA). PT-D350 seems OK, but Mismatch of Verify that the settings on both modules PR-D350 module shows no bandwidth selection, are identical. -
Page 33: Section 5 - Specifications
Total distortion and noise 0.03% (1000 Hz at +10 dBm) CODING 16-bit linear TIME DELAY Total circuit delay through one PT-D350 and one PR-D350: 15 kHz audio, less than 4.0 milliseconds 7.5 kHz audio, less than 8.0 milliseconds DATA RATE... - Page 34 LED INDICATORS Service on/off Digital Signal Processor (DSP) failure Five position audio signal level with overload, each channel PT-D350 only: AES/EBU input error detect PR-D350 only: Data activity in, each channel Bit error detect and mute active, each channel SYSTEM COMPATIBILITY...
- Page 35 Issue 1, July 1996 Appendix A MODULE ADAPTERS - PT-D350/PR-D350 Module adapters for the PT-D350 and PR-D350 modules are: • MA-510 AES/EBU input, used with the PT-D350 • MA-511 AES/EBU output, used with the PR-D350 Connectors and pin assignments for these module adapters are illustrated in Figure A-1. The MA-510 and MA-511 are double width;...
- Page 36 Harris Corporation PT/PR-D350 Uncompressed Program Audio Modules Intraplex Products Issue 1, July 1996 The MA-510 and MA-511 are double width, so... Rear View RING +BAT -BAT +BAT -BAT MA210 MA-510 ALARMS ALERT ALARM DIGITAL T1 I/O AUDIO INPUT REMOTE 110 - 230 VOLTS AC...
