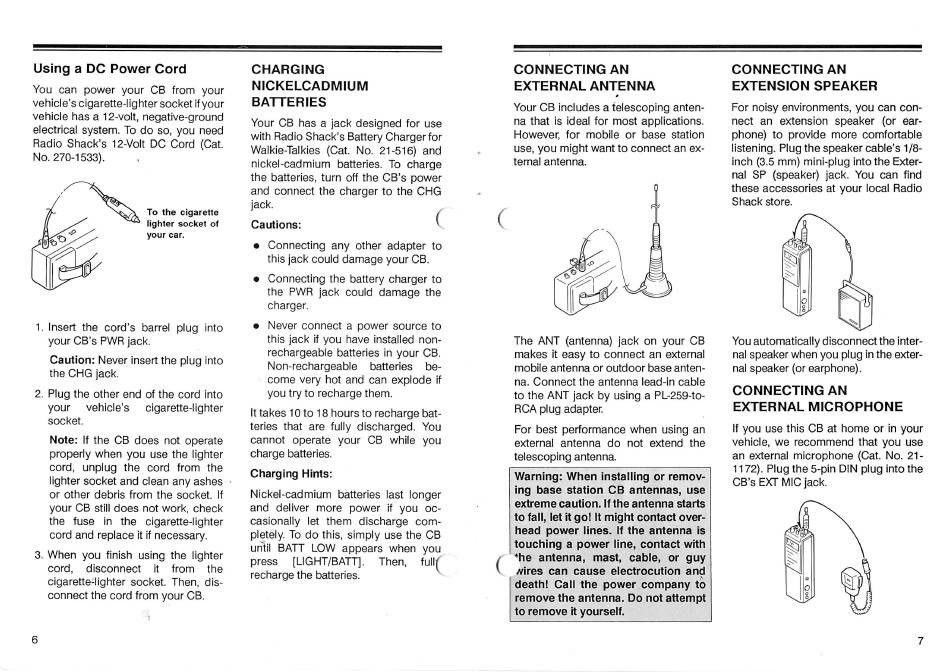

Using a DC Power Cord
You can power your CB from your
vehicle'scigarette-lightersocketifyour
vehicle has a 12-volt, negative-ground
electrical system. To do so, you need
Badio Shack's 12-Volt DC Cord (Cat.
No. 270-1533). `
To the cigarette
lighter socket of
your car.
1. Insert the cord's barrel plug into
your CB's PWP jack.
Caution: Never insert the plug into
the CHG jack.
2. Plug the other end of the cord into
your vehicle's cigarette-lighter
socket.
Note: lf the CB does not operate
properly when you use the lighter
cord, unplug the cord from the
lighter socket and clean any ashes
or other debris from the socket. If
your CB still does not work, check
the fuse in the cigarette-lighter
cord and replace it if necessary.
3. When you finish using the lighter
cord, disconnect it from the
cigarettellighter socket. Then, dis-
connect the cord from your CB.
rty
6
un`til BATT LOW appears when
press [LIGHT/BATT]. Then,
recharge the batteries.
CHARGING
NICKELCADMIUM
BATTERIES
Your CB has a jack designed for use
with Badio Shack's Battery Charger for
Walkie-Talkies (Cat. No. 21-516) and
nickel-cadmium batteries. To charge
the batteries, turn off the CB's power
and connect the charger to the CHG
I::kii.ns : (
• Connecting any other adapter to
this jack could damage your CB.
• Connecting the battery charger to
the PWB jack could damage the
charger.
• Never connect a power source to
this jack if you have installed non-
rechargeable batteries in your CB.
Non-rechargeable batteries be-
come very hot and can explode if
you try to recharge them.
It takes 10 to 18 hours to recharge bat-
teries that are fully discharged. You
cannot operate your CB while you
charge batteries.
Charging Hints:
Nickel-cadmium batteries last longer
and deliver more power if you oc-
casionally let them discharge com-
pletely. To do this, simply use the CB
fyufit (
CONNECTING AN
EXTERNAL ANTENNA
Your CB includes a telescoping anten-
na that is ideal for most applications.
However, for mobile or base station
use, you might want to connect an ex-
ternal antenna.
The ANT (antenna) jack on your CB
makes it easy to connect an external
mobile antenna or outdoor base anten-
na. Connect the antenna lead-in cable
to the ANT jack by using a PL-259-to-
BCA plug adapter.
For best performance when using an
external antenna do not extend the
telescoping antenna.
CONNECTING AN
EXTENSION SPEAKER
For noisy environments, you can con-
nect an extension speaker (or ear-
phone) to provide more comfortable
listening. Plug the speaker cable's 1/8-
inch (3.5 mm) mini-plug into the Exter-
nal SP (speaker) jack. You can find
these accessories at your local Radio
Shack store.
You automatically disconnect the inter-
nal speaker when you plug in the exter-
nal speaker (or earphone).
CONNECTING AN
EXTEFINAL MICROPHONE
lf you use this CB at home or in your
vehicle, we recommend that you use
an external microphone (Cat. No. 21-
1172). Plug the 5-pin DIN plug into the
CB's EXT MIC jack.
