Product Descriptions

  1. BZ700 works on most after 1996 OBDII compliant US, European and Asian vehicles.
  2. Mercedes-Benz cars (including Maybach), (1991-2021) Mercedes-Benz Sprinter (commercial vehicle series, some of these models have a 38PIN diagnostic interface, which is not supported). Benz Smart (Smart).

Product Specification

2.8'LCD,320 X 240 pixels color screen
Operating Voltage: 8V-18V
Operating Temperature. 0ºC-60ºC(32-140ºF)
Storage Temperature: -20ºC-70ºC(4-158ºF)

Description of appearance and buttons

Description of appearance and buttons

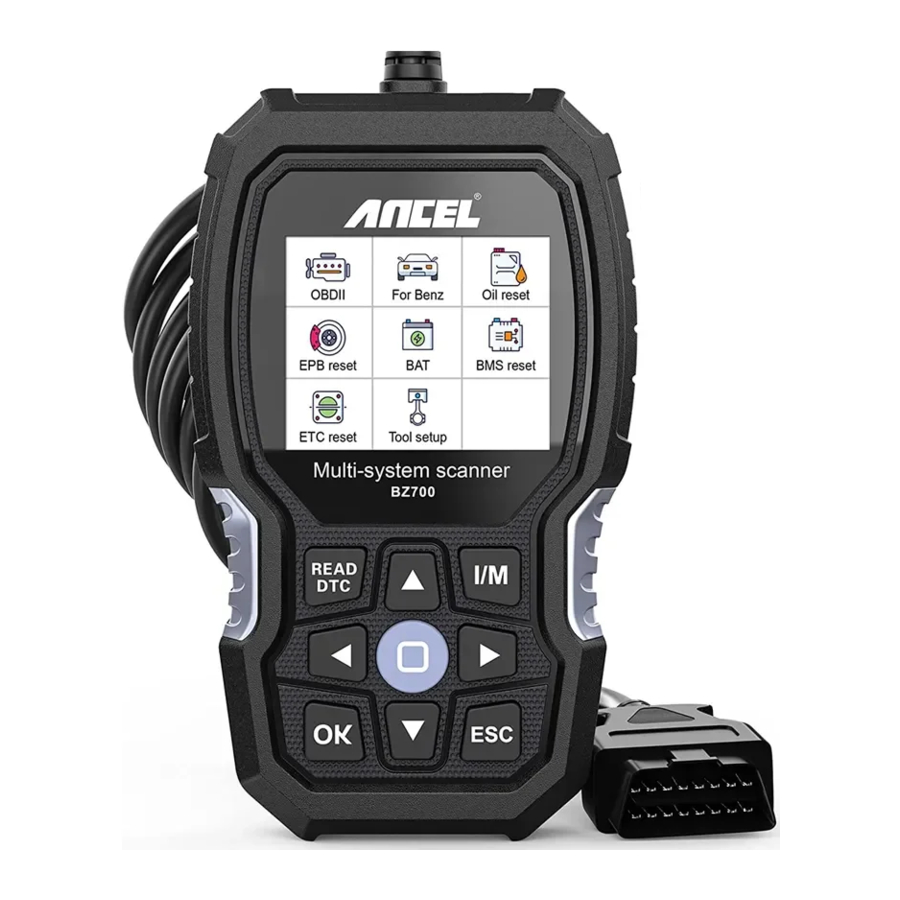

  1. LCD DISPLAY - Displays test results. Display with backlight, 320 x 240 pixels.
  2. [OK] BUTTON Confirms a selection (or action) from a menu.
  3. [ESC ]BUTTON - Cancels a selection (or action) from a menu or returns to the menu.
  4. [LEFT] SCROLL BUTTON - move left through menu and submenu in menu mode, when scrolling in a data interface the left key can be used to move to the last screen.
  5. [RIGHT] SCROLL BUTTON - in menu mode move through the menu and submenu items to the right, when scrolling in a data interface the right key can be used to move to the next screen.
  6. [UP] SCROLL BUTTON - in menu mode, move up through the menu and submenu items. When retrieving data for more than one screen, by moving the screen up to the previous screen for more data.
  7. [DOWN] SCROLL BUTTON - in menu mode, using the menu and submenu items to move down. If retrieving data for more than one screen, move down the screen to the next screen for more data.
  8. OBD-16PlN CONNECTOR - Connects the scan tool to the vehicle's Data Link Connector (DLC).
  9. [I/M] BUTTON - Quick State Emissions Readiness Check and Drive Cycle Check.
  10. [READ DTC] BUTTON - Quick readout of the vehicle's fault code.

I/M Readiness
I/M Readiness

Remarks:
MIL Yellow - Dashboard MIL ON
MIL Gray Dashboard MIL OFF
- not support
-complete X
-not complete

Diagnosis

For Benz

This product mainly tests Mercedes-Benz, Sprinter and Smart. Let's take Mercedes-Benz as an example to analyze the general functions of the product.
Select [For Benz] it will show as follows:
Diagnosis - For Benz - Step 1

  1. Select [OK] to continue, In [For Benz Diagnose], Select [Last Test Record] and the following interface will appear:
    Diagnosis - For Benz - Step 2
    warning Remark: In the last test record, you can quickly find the result of the last test.
  2. In [Automatically Search], it can identify the name and year of the vehicle by VIN.
    Diagnosis - For Benz - Step 3
    Mark [Automatically Search] read VIN to analyze and identify specific models and chassis. Currently, only Mercedes-Benz cars support automatic recognition, and Smart and Sprinter do not support Automatically Search.
  3. Manually Select: If the automatically Search is abnormal, customer can use the Manually Select to test.
    In [Manually Select], it shows as follows:
    Diagnosis - For Benz - Step 4
    Diagnosis - For Benz - Step 5
    Select [Health Report],it shows as follows:
    Diagnosis - For Benz - Step 6
    Select [Control Units], it display as belows:
    Diagnosis - For Benz - Step 7
    Diagnosis - For Benz - Step 8
    Select [Version Information],it display as belows:
    Diagnosis - For Benz - Step 9
    Select [Read Fault Codes], it will show as follows:
    Diagnosis - For Benz - Step 10
    Select [Erase Fault Codes],it display as belows:
    Diagnosis - For Benz - Step 11
    Select [Read Datastream], it display as follows:
    Diagnosis - For Benz - Step 12
    Mark: Select [LEFT] and [RIGHT] buttons to page
    Select [UP] and [DOWN] buttons to select one by one
    Select [OK] button to select the Datastream Select [ESC] button to read Datastream

    Select [Special Functions],it will display as follows:
    Diagnosis - For Benz - Step 13

warning Note: The special functions supported by different models are different.

Special Functions for Benz

  1. Oil Service Light Reset
    Select [Special Functions] and go to [Oil Service Light Reset] Follow the instructions on the interface to complete the Oil Service Light Reset. The specific steps are as follows
    Diagnosis - Special Functions for Benz - Step 1
    Diagnosis - Special Functions for Benz - Step 2
    warning Note: The above is the main content of Oil Service Light Reset; please operate according to the above steps.
  2. EPB Replace Brake Pads
    Select [Special Functions]and go to [EPB Replace Brake Pads] Follow the instructions on the interface to complete the EPB
    Replace Brake Pads. The specific steps are shown in the figure below.
    Diagnosis - Special Functions for Benz - Step 3
    Diagnosis - Special Functions for Benz - Step 4
    Diagnosis - Special Functions for Benz - Step 5

warning Note: The special features of each model are different, please according to the actual operation.

OBDII System

Read Codes

Select [OBDII] and select [Read Codes], it will be displayed as follows:
Read Codes

Erase Codes

Select [OBDII] and select [Erase Codes], it will be displayed as follows:
Erase Codes - Step 1

A warning message comes up asking for your confirmation.
Erase Codes - Step 2

Press the [OK] button to confirm
Erase Codes - Step 3

I/M Readiness

Select [OBDII] and select [I/M Readiness], it will be displayed as follows:
I/M Readiness

Data Stream

Select [OBDII] and select [Data Stream], it will be displayed as follows:
Data Stream

Evap System Test

Select [OBDII] and select [EVAP System Test], it will be displayed as follows:
Evap System Test

Vehicle Information

Select [OBDII] and select [Vehicle Information], it will be displayed as follows:
Vehicle Information

BAT Check

This function allows you to read the battery voltage in real time.
From the main menu, use the navigation button LEFT/ RIGHT to select the menu BAT and press the button OK. The screen will display the interface shown below:
BAT Check - Step 1

Please turn off the engine
BAT Check - Step 2

When you press [OK] and start the detection, the interface will be displayed:
BAT Check - Step 3

Tool setup

Language

Select [Language] and it displays as follows:
Language

Beeper

Select [Beeper] and it displays as follows:
Beeper

Instructions (Display at startup)

Select [Instructions (Display at startup)] and it displays as follows:
Instructions (Display at startup)

Unit of measure

Select [Unit of measure] and it displays as follows:
Unit of measure

Skin style

Select [Skin Style] and it displays as follows:
Skin style

Feedback

  1. If the device indicates a connection error with the vehicle or any other problem, during use, please use the feedback function.
    Select [Feedback] and it will be displayed as follows:
    Feedback - Step 1
    or Example: Register Battery Change enter [Register Battery Change] and run Register Battery Change again (This step is very important).
    warning Note: Keep the device connected to the vehicle during the above steps.
  2. After you have registered the battery change, disconnect the device from the vehicle.
  3. Transfer the data to your computer and create a feedback file (You need to download the update file from ANCEL website to your computer).

The device is connected to the computer via USB cable.
Feedback - Step 2

Select the "Update" file and it will be displayed as follows:
Feedback - Step 3

Click "Feedback" and it displays as follow:
Feedback - Step 4

Please send the feedback.bin file to support@anceltech.com
Feedback - Step 5

Device information

Select [Device information] and it will be displayed as follows
Device information

Update

  1. Download the update software and unzip the file
  2. Connect the device to the computer via USB cable
  3. The update software is only supported by 7/8/10. In Windows 7, you need to install the driver, in Windows 8/10, you can run the update software directly.

warning Note:
Windows XP and Apple computers do not support upgrades. If you do not understand the upgrade steps in the instructions, please contact ANCEL customer service.
