- Page 1 CDP 85-135-175 SERVICE MANUAL | en | *116540* 116540 Rev. 1.8 - 2024-04-22...
-
Page 3: Table Of Contents
CE - Declaration of Conformity CDP 85 . . . . . . . . . . . . . . . . . -
Page 4: Introduction
Introduction: Introduction General This is the service manual for the CDP-85-135-175 . information The control strategy and configuration of the units through the touch display will be covered in this manual . This section provides general information about the unit and this Service Manual . User groups This Service Manual is for the technicians who install, maintain and repair the unit The unit may be placed where it is accessible to the general public... -
Page 5: Symbols Used In The Operating Instructions
Introduction: Symbols used in the operating instructions Symbols used in the operating instructions In these operating instructions, particularly important text passages are highlighted with signal words and symbols that are described below . DANGER . . .indicates a hazard which, if not avoided, will result in death or serious injury . WARNING . -
Page 6: Safety
Introduction: Safety Safety Note! Read carefully before use . Keep for future reference . It is the responsibility of the operator to read and understand this manual and other information provided and to apply the correct operating procedures . Read the entire manual before starting up the unit for the first time . It is important to be familiar with the correct operating procedures for the unit and all related safety pre- cautions to avoid the risk of personal injury and/or property damage . -
Page 7: Product And Functional Description

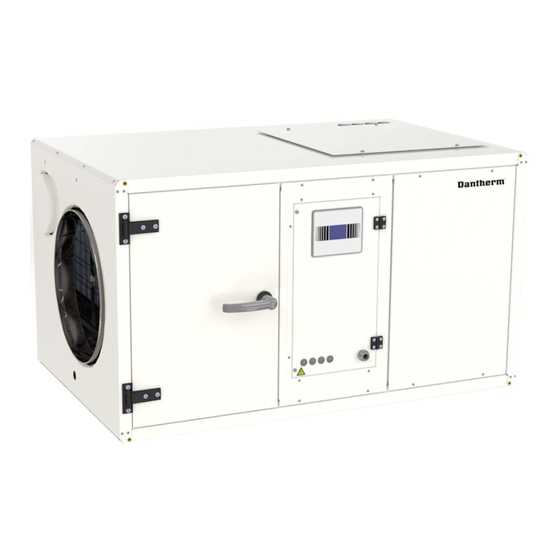

Product and functional description Product and functional description Illustration Illustration of the functional principle of the CDP 85/135/175 Top cover panel Reset of HP Outdoor (inlet) (behind door) Return air (inlet) Front cover panel Control panel section Condensate Inspection door... -
Page 8: Dimensions Of The Units
Product and functional description: Dimensions of the units Dimensions of the units CDP 85 BOTTOM FRONT Airflow direction 364,5 1155 424,5 CDP 135 BOTTOM Airflow direction FRONT 1300... - Page 9 Product and functional description: Dimensions of the units CDP 175 BOTTOM Airflow direction FRONT 1400 1014...
- Page 10 Product and functional description Product and functional description, continued Three fan modes are available: Sense mode: When the dehumidifier is on standby, the fan will start every 15 minutes for 1 minute to circulate the room air over the internal sensor element . Is used if installation has long air ducts .
-
Page 11: Display
Display: Description of the icons Display Display The inspection side of the unit has a touch display panel with a graphical user interface . Menu °C ON/OFF Fig . 2: Default display Icons The icons in the display panel indicate various operation modes . When a blue icon turns grey after pressing it, it means the function is turned off . -
Page 12: Default View And Navigation
Default view and navigation: Main display layout Default view and navigation Main display layout Menu Menu °C ON/OFF Fig . 3: Main display layout in RH control mode Item Button/Indication Description Menu Select the menu button to navigate to the screen in figure 3 ON/OFF Turns the device ON and OFF... -
Page 13: Display And Menu Overview
Display and menu overview: Menu overview Display and menu overview Menu overview System settings & Info Settings menu Home menu Dew point Abs . humidity Menu Control Mode Relative humidity Manual Intermittent Set Value Fan Mode Continuous Sense Set Value Fan start interval Sense setting Fan runtime... - Page 14 Display and menu overview: Menu overview Display and menu overview, continued The relative humidity setpoint can be adjusted by selecting the up and down arrows . Humidity control It is not possible to deactive dehumidification using this function . settings SetValue The temperature setpoint can be adjusted using this function .
-
Page 15: Settings
Info SerNo . The serial number of the unit Ver . The version of the software Model The name of the unit model (eg . CDP 85) Language settings No other languages other than English are currently available . Language... - Page 16 Display and menu overview: Settings Display and menu overview, continued Error warning If the unit experiences an error in any of the functions, a warning will appear in the display . The error warnings will correspond to any of the following: Menu Item Description LP Error...
-
Page 17: Other Control Options
Other control options: External RH/T sensor Other control options External RH/T The control is prepared for the connection of an external RH/T sensor, which is placed in the sensor room to be dehumidified or in the supply air duct – (air inlet) . The external RH/T sensor is available as an accessory . -
Page 18: Mounting And Installation Instructions
This section contains all necessary information for correct mounting of the dehumidifier . The electrical installation is described at the end of this section . Placing of CDP 85, CDP 85, 135, 175 can be placed in one of the following ways: 135, 175 Placement... -
Page 19: Air Outlet Through The Top
. If pressure losses are higher, there is a danger of the unit cutting out via the high-pressure pres- sostat due to insufficient air flowing over the condenser . CDP 85 CDP 135 CDP 175... -
Page 20: Outdoor Air Duct Connection
CDP 175 m³/h Water heating The CDP 85, 135, 175 can be fitted with low pressure hot water heating coil (LPHW) . Depending coils on the desired solution, an internal or external LPHW can be installed together with the unit . -
Page 21: Connection Of Water-Cooled Condenser
Mounting and installation instructions Mounting and installation instructions, continued Connection of The water-cooled condenser is normally activated by a temperature controlled water pump, water-cooled which starts up automatically when it reaches a specified room temperature and pumps water condenser through the condenser . Alternatively, the cooling signal from the dehumidifier may be applied . A 230V/2A cooling signal will be available whenever there is a cooling demand . -
Page 22: Service Guide
Service guide Service guide Introduction The dehumidifier is designed to require minimal attention in order to run without issues . All the necessary safety and control functions have been built in . The fan motor and the compres- sor have permanent lubrication and require no particular maintenance . Monthly service Once a month, the inlet air filter should be inspected and if necessary cleaned . -
Page 23: Fault Finding Guide
Fault finding guide: Fault finding Fault finding guide Fault finding Use this table to localize and solve a possible problem or fault: More help If you cannot find the reason for the fault, switch off the unit immediately in order to prevent further damage . - Page 24 Fault finding guide: Fault finding...
- Page 25 Fault finding guide: Fault finding...
-
Page 26: Cooling Diagram
Thermostatic expansion valve Water-cooled condenser Evaporator Air-cooled condenser Solenoid valve Receiver CDP-Large MKIII 351590, 3312379 (Condensation Dehumidifier PSD) CDP 85 230V Luftkølet kondensator Schematics of cooling diagram TC TC Condensation dehumidifier principle diagram with integrated wa- CDP-Large MKIII 351590, 3312379 (Condensation Dehumidifier PSD) CDP 85 230V ter-cooled condenser . -
Page 27: Wiring Diagram Cdp 85-135, 230V
Wiring diagram CDP 85-135, 230V Wiring diagram CDP 85-135, 230V Humidity sensor 12VDC supply Evaporator temparature Fan speed ctrl Battery Condenser Elec. panel CR 2032 temperature cover RJ45 RB 1 RB 3 R: +10V Y: IN W: OUT B: GND... -
Page 28: Wiring Diagram Cdp 135-175, 3X400V
Wiring diagram CDP 135-175, 3x400V Wiring diagram CDP 135-175, 3x400V Humidity sensor 12VDC supply Evaporator temparature Fan speed ctrl Battery Condenser Elec. panel CR 2032 temperature cover RJ45 RB 1 RB 3 R: +10V Y: IN W: OUT B: GND N A1 Solenoid Valve max 20A fuse... -
Page 29: Technical Information
Technical information: Technical data Technical information Technical data Specification Unit CDP 85 CDP 135 CDP 175 Operational humidity range % RH 40-100 40-100 40-100 Operational temperature °C 15-38 15-38 15-38 range Air volume, nominal m³/h 1500 2500 3600 Air volume, range m³/h... -
Page 30: Spare Parts
Spare parts This page contains the general information needed when ordering spare parts . How to order Spare parts can be ordered at http://www .shop .dantherm .com When ordering, please specify the following: • Spare parts number/text • Unit type •... -
Page 31: Disposal
Disposal: Disassembly Disposal General notes Removal and disposal of the unit may only be performed by professionals . All supply lines like electricity and hot water must be shut down before decommissioning and dismantling the equipment . Make sure that no water-glycol mixture is leaking . Empty the refrigerant circuit for oil and refrigerant before dismantling . -
Page 32: Ce - Declaration Of Conformity Cdp 85
CE - Declaration of Conformity CDP 85 CE - Declaration of Conformity CDP 85 D D e e c c l l a a r r a a t t i i o o n n o o f f C C o o n n f f o o r r m m i i t t y y Stationary Drying &... -
Page 33: Ce - Declaration Of Conformity Cdp 135, Cdp 175
D D e e c c l l a a r r a a t t i i o o n n o o f f C C o o n n f f o o r r m m i i t t y y Stationary Drying & Ventilation Dantherm A/S Marienlystvej 65 DK - 7800 Skive Tel.: +45 96 14 37 00... - Page 36 Marienlystvej 65 7800 Skive Denmark support.dantherm.com Dantherm can accept no responsibility for possible errors and changes (en) Der tages forbehold for trykfejl og ændringer (da) Irrtümer und Änderungen vorbehalten (de) Dantherm n’assume aucune responsabilité pour erreurs et modifications éventuelles (fr)
