3.2 Assembly/Panel Removal
3.2.1 Stand removal
1. Remove the cover in the blue box first
2. Release the connector from the Audio Board in red box as following
3. Remove the fixation screws [1] that secure the stand.
4. Take the stand bracket out from the set as below indicated.
1
1
Stand removal and rear cover for PML9308 series
1. Remove the cover in the blue box first
2. Release the connector from the Audio Board in red box as following
3. Remove the fixation screws [1] that secure the stand.
4. Take the stand bracket out from the set as below indicated.

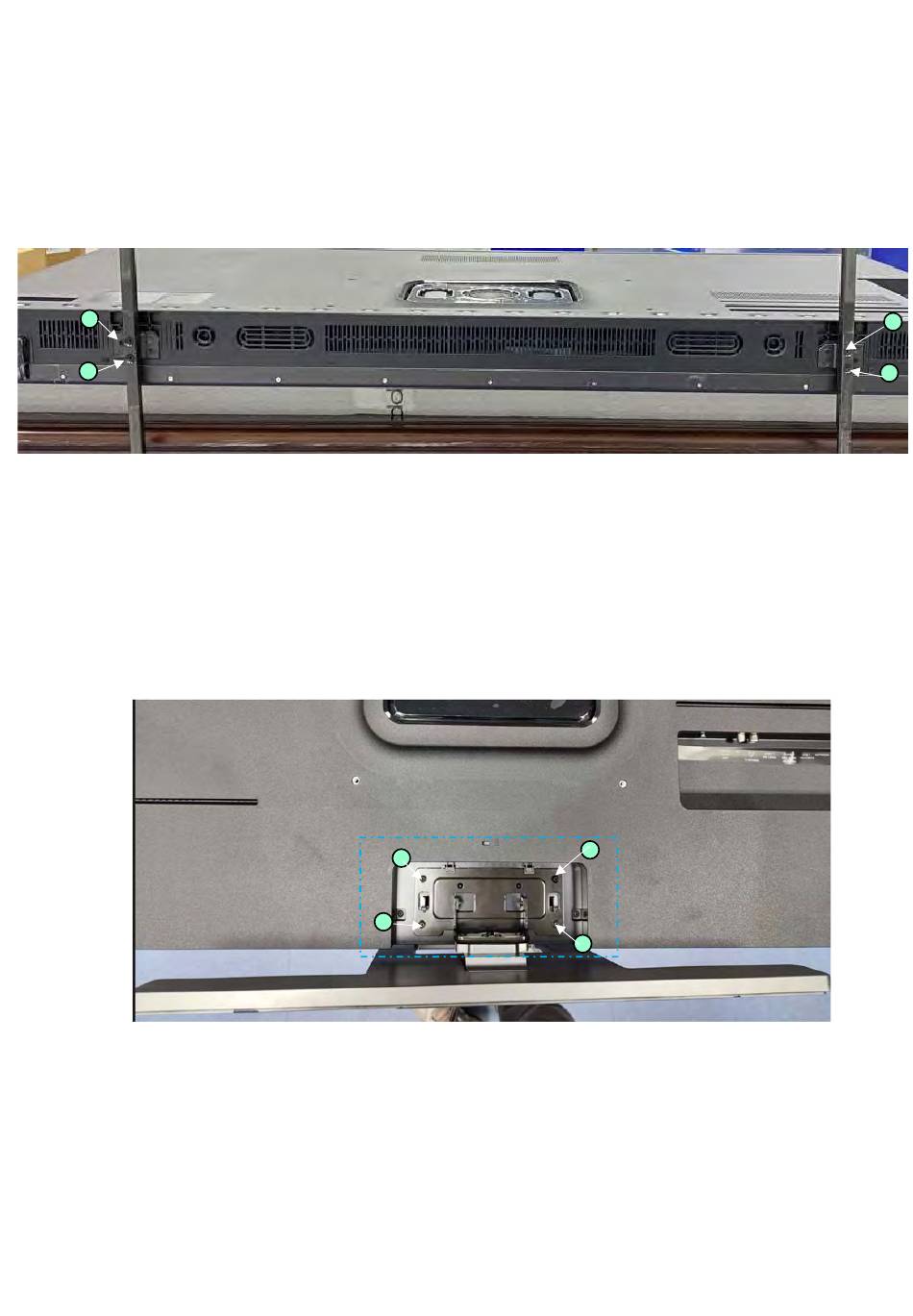

(55"/65"/75" PML9008 Series stand removal )
1
1
(55"/65" PML9308 Series stand removal -1)
1
1
1
1
