YOSEMITE BANQUETTE
ASSEMBLY INSTRUCTIONS
A. BACK FRAME 1 PC
B. SEAT FRAME 1 PC
C. FRONT
D. MIDDLE LEG 1 PC
STRETCHERS
2 PCS
E. LEFT LEG 1 PC
1
2
02
ALLEN BOLT
PCS
M6 x 40 MM
7
6
SCREW
10
M4 x 40 MM
PCS
PHILLIPS HEAD SCREW
DRIVER NOT PROVIDED
G. LEFT STRETCHER 1 PC
I. MIDDLE STRETCHER 1 PC
F. RIGHT LEG 1 PC
HARDWARE ENCLOSED IN BOX
3
06
ALLEN BOLT
ALLEN BOLT
PCS
M6 x 50 MM
M6 x 70 MM
01
ALLEN KEY
PC
N4
TOOL REQUIRED
H. RIGHT STRETCHER 1 PC

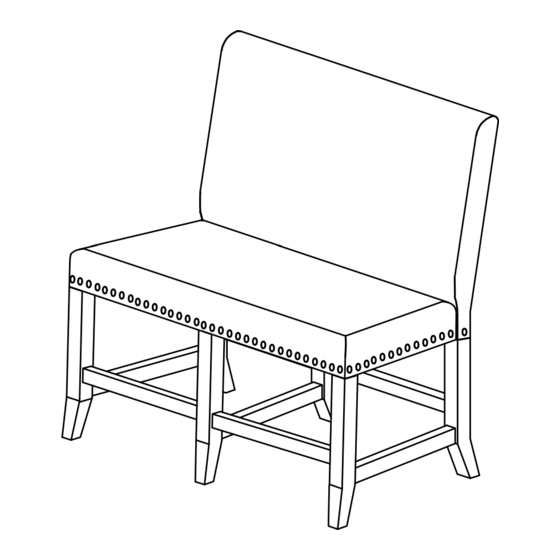

YOSEMITE BANQUETTE STOOL
ASSEMBLED
4
04
SPRING WASHER
PCS
M9/11
5
12
12
WASHER
PCS
PCS
M9/22
Advertisement
Related Manuals for Modus Furniture YOSEMITE 7YC969C
Summary of Contents for Modus Furniture YOSEMITE 7YC969C
- Page 1 YOSEMITE BANQUETTE ASSEMBLY INSTRUCTIONS A. BACK FRAME 1 PC G. LEFT STRETCHER 1 PC H. RIGHT STRETCHER 1 PC I. MIDDLE STRETCHER 1 PC B. SEAT FRAME 1 PC YOSEMITE BANQUETTE STOOL ASSEMBLED C. FRONT D. MIDDLE LEG 1 PC STRETCHERS 2 PCS E.
- Page 2 STEP 1: Insert 3 legs (D,E,F) and stretchers (C) to seat frame (B). Connect them with bolt (2) spring washer (4) and flat washer (5). STEP 2: Attach the stretchers (G), (H), (I) to the back frame (A).
- Page 3 STEP 3: Connect the seat frame (B) to back frame (A) with bolts (1), (3), spring washers (4) and flat washers (5). STEP 4: Connect all the stretchers with screws (6). Assembly completed.
