ACCESS200 installation guide
for configuration via ConfigCard or Wireless Upload (NFC)
Note: For configuration via Wired Upload (USB) or preconfigured readers, use the separate guide.
Equipment & requirements
Drill template (available in the
•
ACCESS200 reader incl. base part
•
3mm diameter countersunk head screws (to fix the base part)
•
Project card (to test reader and configuration)
•
Optional: AdrCard (to set bus address), LicenseCard (to deploy Prox license)
•
To deploy configuration:
•
Via ConfigCard
• ConfigCard with configuration stored on it
• Or to create a ConfigCard yourself:
Blank ConfigCard/MIFARE DESFire card
plus the equipment for Wireless Upload
(see list in column on the right)
Installation
1.
Fix base part
Fix the base part with the 3 mm diameter countersunk head screws.
Heads must not stand out more than 1 mm from the base surface.
2. Wire reader
Connect the reader to the host system according to tables below.
For unpotted readers, you can unplug the clamp J8
•
(see image on the right).
For potted readers, cut the connector off the pigtail cable, shorten
•
cable, and strip wires.
Pigtail cable connection / Molex Pico-SPOX
(potted/outdoor readers) stranded, AWG26
Color
Connector pin #
White/Orange
1
Orange
2
White/Green
3
Green
4
Red/White
5
Black/White
6
Red or White/Grey
7
Black or Grey
8
White/Blue
9
Blue
10
White/Brown
11
Brown
12
BALTECH AG
Phone:
Lilienthalstrasse 27
Fax:
85399 Hallbergmoos
Mail:
Germany
Website:
download
section at baltech.de)
Via Wireless Upload
• Target readers with firmware 1100 v2.00 or
• Transfer reader: ID-engine ZB Brick,
• Configuration file in BEC2 format
• Laptop with Windows tool "BALTECH Uploader"
Signal/funct.
WIE_D0/RS485A
WIE_D1/RS485B
LEDGN
LEDRD
USB Data -
USB Data +
+VIN
GND
GND (reserved for USB
maintenance interface)
REL_WC
REL_NO
REL_NC
+49 (811) 99 88 1-0
+49 (811) 99 88 1-11
info@baltech.de
www.baltech.de
above (or supported custom firmware)
ISO product line (10115)
(part of
BALTECH
ToolSuite), v4.26 or above

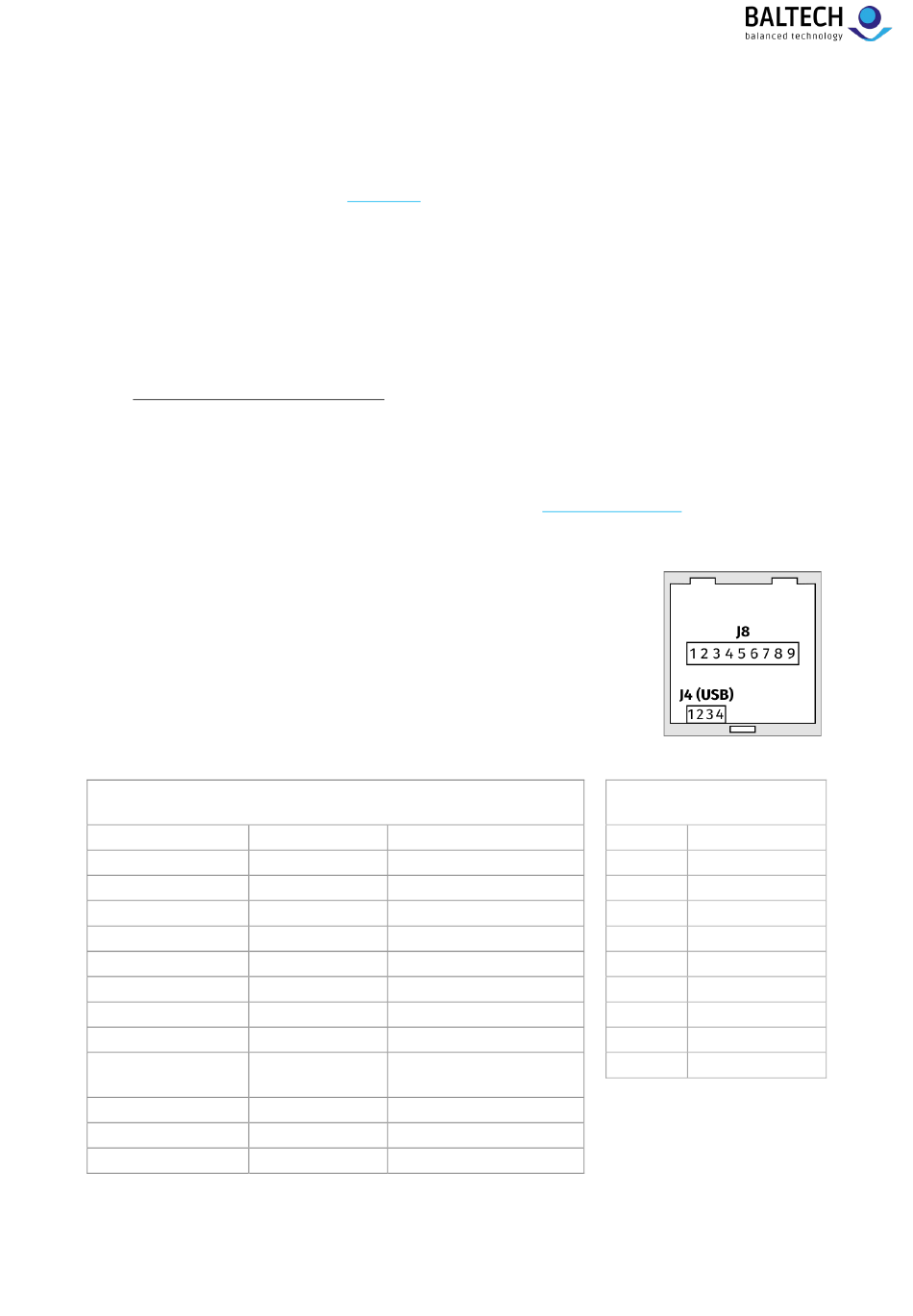

Unpotted reader rear view
J8 Pluggable cage clamp
(unpotted/indoor readers)
Pin #
J8-1
J8-2
J8-3
J8-4
J8-5
J8-6
J8-7
J8-8
J8-9
Signal/funct.
GND
+Vin
WIE_D0/RS485A
WIE_D1/RS485B
LEDGN
LEDRD
REL_WC
REL_NO
REL_NC
v1.4
p 1/2
