Harbor Freight Tools PITTSBURGH 66784 Owner's Manual & Safety Instructions

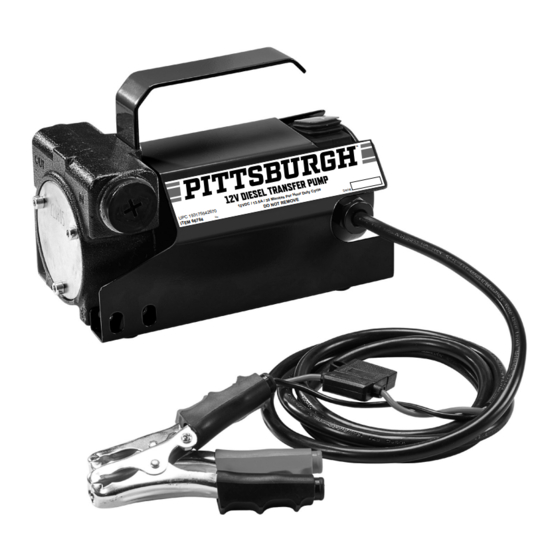

12 volt diesel transfer pump
Hide thumbs

Advertisement

Table of Contents

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
12 VOLT DIESEL TRANSFER PUMP
item
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2024 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
66784
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
24f
tM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PITTSBURGH 66784 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harbor Freight Tools PITTSBURGH 66784

Summary of Contents for Harbor Freight Tools PITTSBURGH 66784

  • Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SAVE THIS MANUAL.

  • Page 2: Table Of Contents

    table of contents Safety ............2 Maintenance ..........9 Specifications ..........6 Parts List and Diagram ......10 Setup ............7 Warranty ............ 12 Operation ............ 8 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 3: Safety

    electrical Safety 1. Do not expose pumps to rain or wet 2. Do not abuse the power cables. never use conditions. Water entering a pump will the cables for carrying or pulling the pump. Keep cables away from heat, oil, sharp edges increase the risk of electric shock.
  • Page 4 Pump. These carry important safety the pump near an open flame. information. If unreadable or missing, contact Harbor Freight Tools for a replacement. 3. Do not use for fluid transfer into or from aircraft. 12. People with pacemakers should consult their 4.
  • Page 5 Symbology WARNING marking concerning Risk Double Insulated of Eye Injury. Wear ANSI-approved safety goggles with side shields. Volts Read the manual before set-up and/or use. Alternating Current WARNING marking concerning Risk of Fire. Amperes Do not cover ventilation ducts. Keep flammable objects away. WARNING marking concerning n 0 xxxx/min.

  • Page 6: Specifications

    Specifications Only use with diesel fuel or kerosene. Product Do not use with gasoline, alcohol, water, corrosive chemicals, Applications solvents, or liquids that have a flash point below 100°  F . Electrical Input 12VDC / 13.5A Fuse 25A (included) 30 Minute Duty Cycle* Motor 2800 ...

  • Page 7: Setup

    Setup - Before use: read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Disconnect the pump from its power supply before assembly/installation. note: For additional information regarding the parts listed in the following pages, refer to Parts List and Diagram on page 10.

  • Page 8: Operation

    Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. inspect pump before use, looking for damaged, loose, and missing parts. if any problems are found, do not use pump until repaired.

  • Page 9: Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Disconnect the pump from its 12 volt power source before performing any inspection, maintenance, or cleaning procedures. tO preVent SeriOuS inJury FrOM puMp FaiLure: Do not use damaged equipment.

  • Page 10: Parts List And Diagram

    parts List and Diagram pLeaSe reaD tHe FOLLOWinG careFuLLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
  • Page 11 assembly Diagram Item 66784 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
