x1
ESSIEU
AXLE
NOTE : TIGHTEN FIXINGS TO TORQUES
PRESCRIBED IN THE LIST OF TOOLS
Z2: COUPLES DE SERRAGE RECOMMANDES
INDIQUES SOUS LES OUTILS
FIRST 210
FIRST 230
A
B
ERDE
C
x1
13
17
10
1/4
COLIS/PACK
COLIS/PACK
19
WWW.ERDE.EU
x1

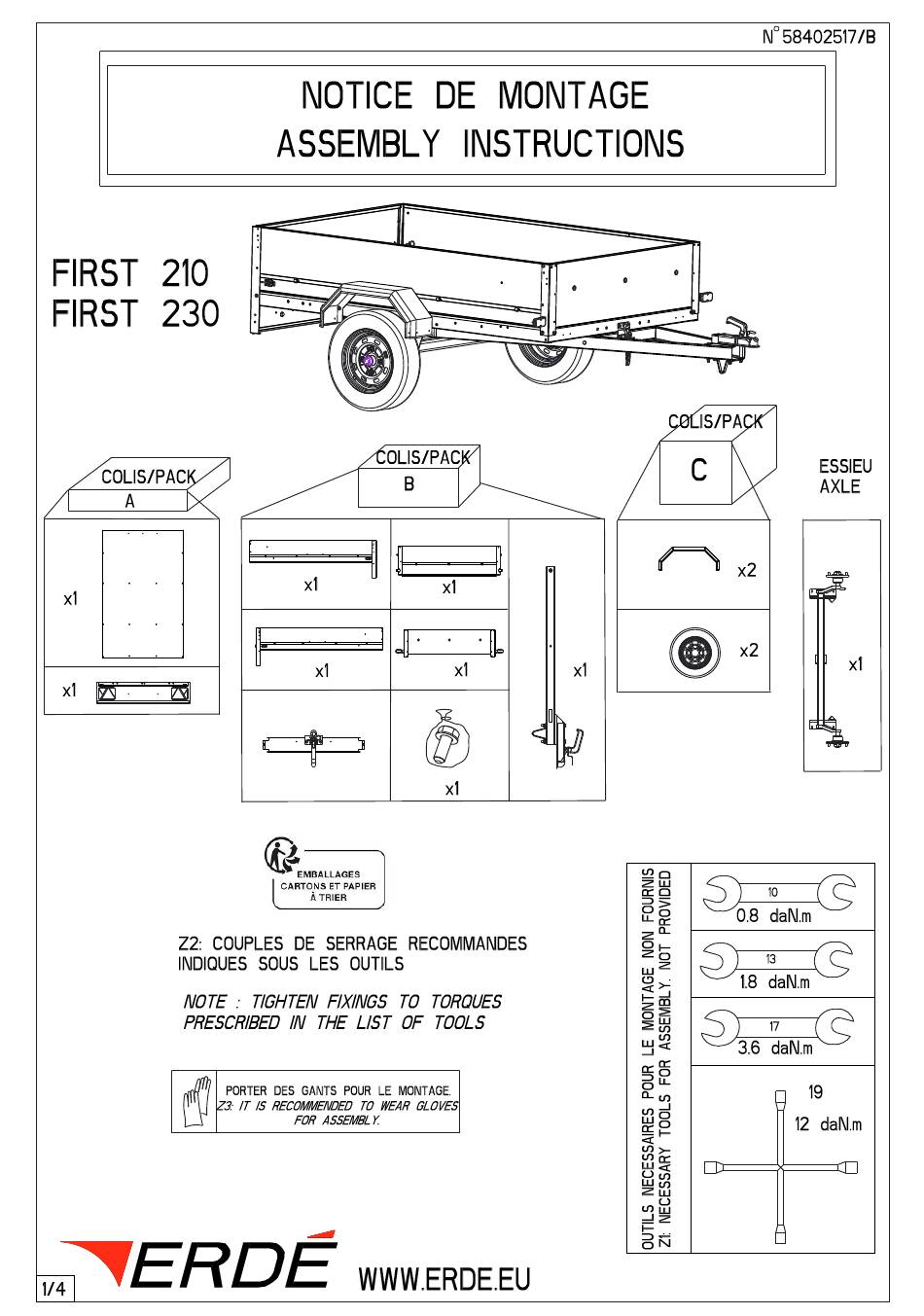

NOTICE DE MONTAGE
ASSEMBLY INSTRUCTIONS
N 58402517/B
PORTER DES GANTS POUR LE MONTAGE.
Z3: IT IS RECOMMENDED TO WEAR GLOVES
FOR ASSEMBLY.
0.8 daN.m
1.8 daN.m
3.6 daN.m
12 daN.m
x2
x2
x1
x1
x1
x1
x1
x1
COLIS/PACK
