x2
x1
x1
x1
x1
x1
x2
x4
x2
x1
x2
1
PORTER DES GANTS POUR LE MONTAGE.
IT IS RECOMMENDED TO WEAR GLOVES
FOR ASSEMBLY.
NOTE : TIGHTEN FIXINGS TO TORQUES
PRESCRIBED IN THE LIST OF TOOLS
COUPLES DE SERRAGE RECOMMANDES
INDIQUES SOUS LES OUTILS
x1
1
uniquement sur modeles DAXARA.
only on DAXARA models.
0.8 daN.m
1.8 daN.m
3.6 daN.m
6 daN.m
12 daN.m

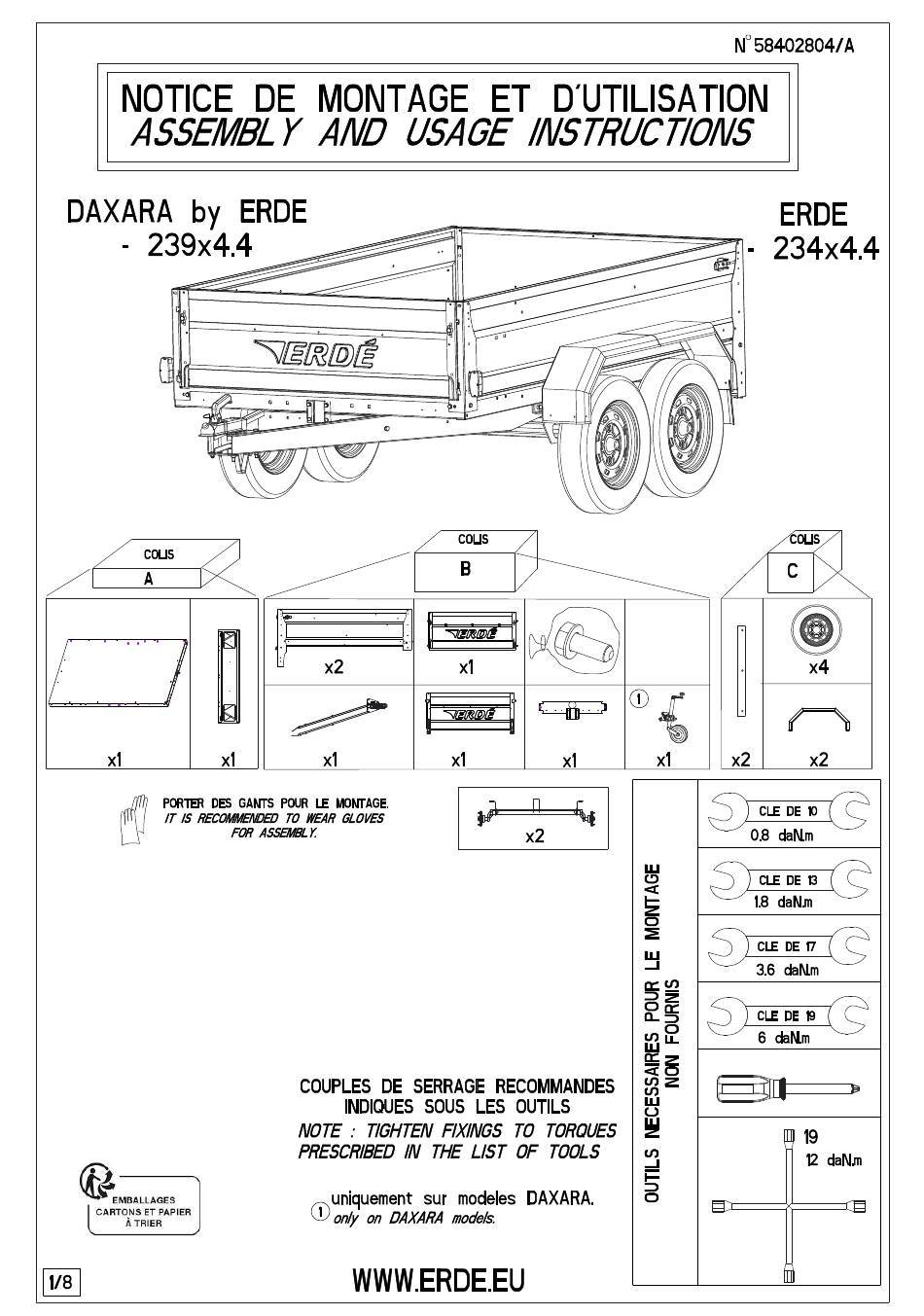

NOTICE DE MONTAGE ET D'UTILISATION
ASSEMBLY AND USAGE INSTRUCTIONS
N $ 58402804/A
ERDE
- 234x4.4
DAXARA by ERDE
- 239x4.4
A
B
C
CLE DE 13
CLE DE 17
CLE DE 19
CLE DE 10
1/8
COLIS
COLIS
COLIS
19
WWW.ERDE.EU
