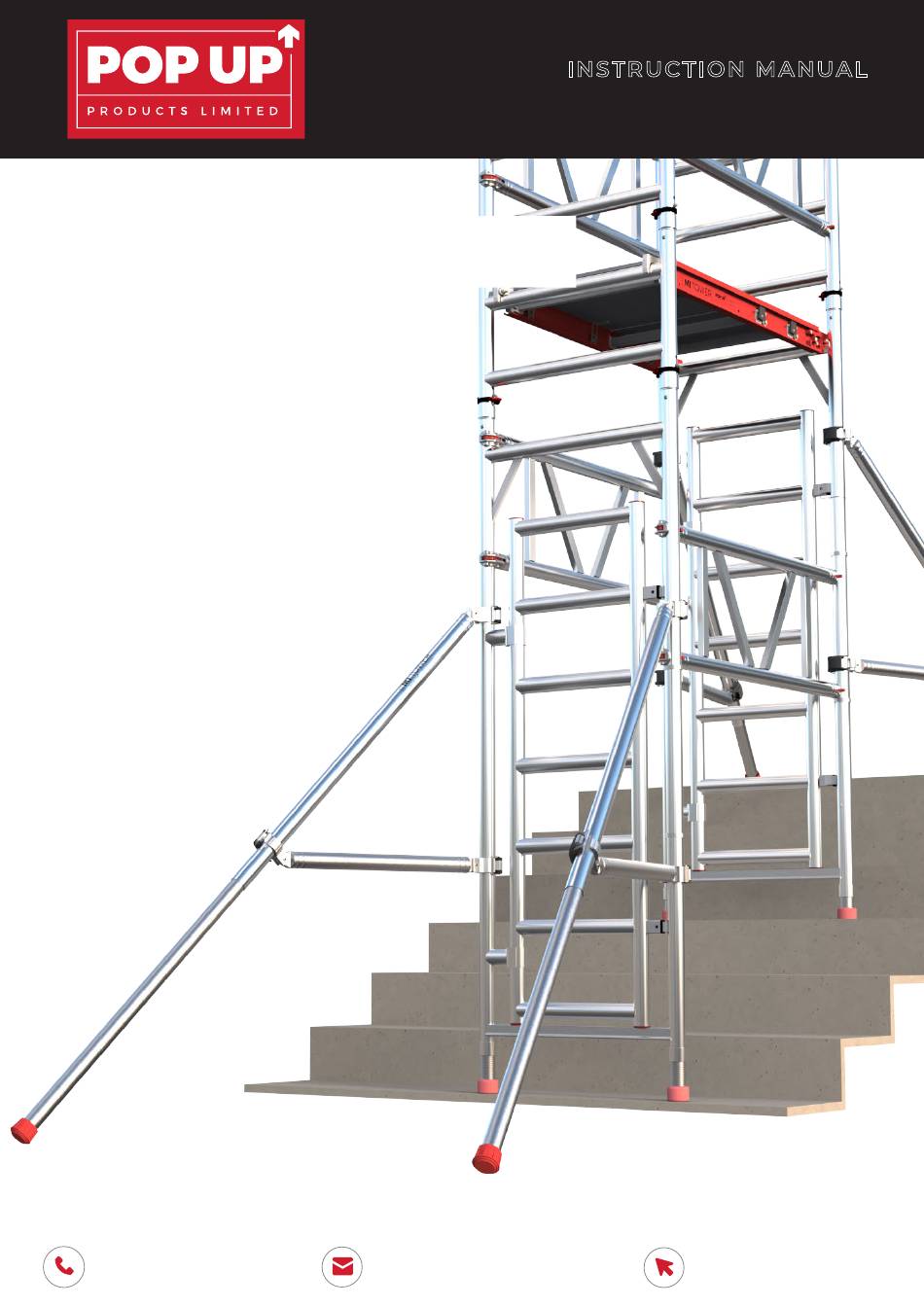

- Page 1 I N S T R U C T I O N M A N U A L FOR M I TOWER STAIRS TOWER STAIRS INSTRUCTION MANUAL EN 1004-2-en (Rev.01 13-06-24) info@popupproducts.co.uk popupproducts.co.uk +44 (0)1244 833 933...
-
Page 2: Table Of Contents
I N S T R U C T I O N M A N U A L F OR M ITOWER STAIRS CONTENTS CONTENTS GETTING STARTED MITOWER STAIRS 2.2M - 4.2M - ASSEMBLY INTRODUCTION KNOW YOUR MITOWER STAIRS MITOWER STAIRS 2.7M - 4.7M - ASSEMBLY KNOW YOUR MITOWER STAIRS COMPONENTS 10 POINT PRE-USE SAFETY CHECKLIST KNOW YOUR KIT LIST AND SPECIFICATIONS... -
Page 3: Introduction
8 & 9. We want you to enjoy the safe and responsible use of MI TOWER STAIRS with the minimum of fuss and this guide is designed to get you up and running as quickly and as safely as possible. -
Page 4: Know Your Mitower Stairs
KNOW YO UR MI TOWER STAIRS PA R TS LI S T I N G 4 RUNG FRA ME 2 RUN G FRA ME TOE BOA RD GUARD RA IL BRACE PANEL T ELESCOPIC STAB IL ISER H ATC H PL ATFORM... -
Page 5: Know Your Mitower Stairs Components
AWL hooks when removing the platform on tower disassembly. 5 PLATFORM WITH BUILT IN COMPONENT HANGERS To enable one man to erect MI TOWER products, each hatch is fitted with four component hangers which are stowed (two either side) within the Retract platform’s frame. - Page 6 Ensure all safety decals are present, intact and readable. A detailed Inspection Guide is available. To obtain a copy of this guide, please contact POP UP Products. Threads, hinges and brace claws may be lubricated with light oil to ensure correct functionality is maintained. Ensure oil does not contaminate climbing or walking surfaces.
-
Page 7: Know Your Kit List And Specifications
GUARDRAIL BRACE PANEL 3.34 220MM ADJUSTABLE LEG C/W RUBBER FOOT 0.91 WALK-THROUGH GATE FRAME 9.29 TOE BOARD SET 5.33 2.01 2 RUNG FRAME 100.99 MI TOWER STAIRS WEIGHT (kg) 67.69 73.43 106.73 MAXIMUM UNIFORMLY DISTRIBUTED LOAD 150kg 150kg 150kg 150kg 6.7m 6.2m 4.7m... -
Page 8: Know Your Storage And Transport Pack
HATCH PLATFORM tower’s base assembly. Castors legs are a optional ADJUSTABLE LEG AND CASTOR X4 extra if you want to create a MI TOWER trolley 4 RUNG FRAME X2 for the stair pack. Castors can NOT be used when assembling MI TOWER STAIRS. -
Page 9: Safety Dos And Don'ts - Always
Keep your feet in the middle of the rungs and grip the upper rungs with your hands. Always erect MI TOWER STAIRS on smooth level ground that is capable of supporting its own weight, the user and any tools or materials without subsidence and free of obstructions. -
Page 10: Safety Dos And Don'ts - Never
Never use MI TOWER STAIRS if you don’t understand something in this guide; please contact the supplier for advice. Never assemble, use, move or dismantle MI TOWER STAIRS if you are tired or unwell or if you are under the influence of alcohol or drugs. -
Page 11: Before You Start
(i.e. no loose materials) and position to avoid overloading individual components. Ballast should be attached to the horizontal rungs of your MI TOWER STAIR and be either securely fastened or be of a design to prevent accidental removal. An example of such ballast is shown below. The quantity of ballast is shown in the component matrices on page 6. -
Page 12: Getting Started
GETTING STARTED GETTING STARTED MI TOWER requires only one person to assemble and dismantle it. Your MI TOWER is supplied with uniform 1m high rung frames which can be used at any stage of the assembly. MIN. During erection, the frames may be connected together to create 2m high frames which makes assembly both quicker and easier. -
Page 13: Mitower Stairs 2.2M - 4.2M - Assembly
MI TOWER STAIRS 2.2m & 4.2m - ASSEMBLY STEP 1 Take four adjustable legs with rubber feet and insert two into the walk-through gate frame. Then insert the remaining two adjustable legs with rubber feet into the two rung frame. Adjust all leg height adjustment collars to bring all four legs to the lowest position. - Page 14 Ensure all hooks are facing outwards and correctly locked on to the frame tubes. STEP 7 Stand inside the Mi TOWER STAIRS and fit the platform on the sixth rung of the uppermost frame assembly, ensuring the trap door is positioned at the lowermost end of the Mi TOWER STAIRS.
-
Page 15: Mitower Stairs 2.7M - 4.7M - Assembly
Access the first platform and fit one set of conjoined frames to each end of the Mi TOWER STAIRS and apply the easy-lock frame clips. Next, attach a guardrail brace panel to the Mi TOWER STAIRS, with its lower jaw positioned above the fourteenth frame rung on the uppermost frame assembly. - Page 16 MI TOWER STAIRS 2.7m & 4.7m - ASSEMBLY STEP 1 Fully insert the adjustable legs with rubber feet into two walk-through gate frames, turning the leg’s height adjustment collar to bring alll four legs to the lowest position. STEP 2 Construct the lowermost frame assembly.
- Page 17 Ensure all hooks are facing outwards and correctly locked on to the frame tubes. STEP 7 Stand inside the Mi TOWER STAIRS and fit the first platform on the eighth rung of the uppermost frame assembly, ensuring the trap door is positioned at the lowermost end of the Mi TOWER STAIRS.
- Page 18 Access the first platform and fit one set of conjoined frames to each end of the Mi TOWER STAIRS and apply the easy-lock frame clips. Next, attach a guardrail brace panel to the Mi TOWER STAIRS, with its lower jaw positioned above the fourteenth frame rung on the uppermost frame assembly.
-
Page 19: 10 Point Pre-Use Safety Checklist
10 POINT PRE-USE SAFETY CHECKLIST 10 POINT PRE-USE CHECKLIST FOR USERS BEFORE USE Ensure tower is correct, complete and level. COMPONENTS Check all components are free from damage. LEGS & FEET Ensure the feet are all level before building. ENVIRONMENT No environmental changes have influenced the safe use of your tower. -
Page 20: Registrations
REGISTRATIONS EN 1004 ISO 9001 Class 3 Page 19... - Page 21 POP UP Products Unit E1, Tenth Avenue Deeside Industrial Park Deeside Flintshire CH5 2UA...
