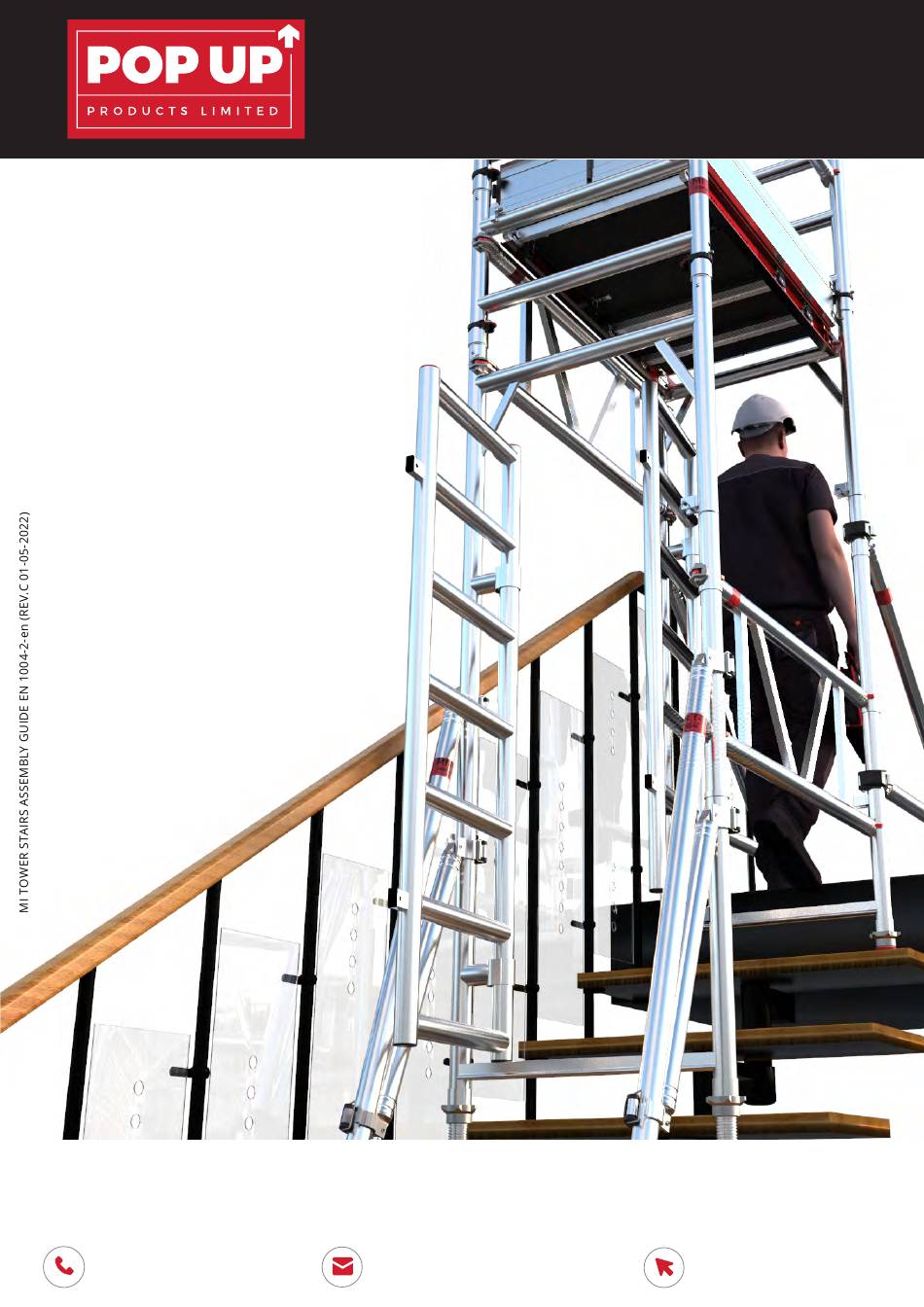

- Page 1 ASSEM BLY GUID E FOR MI TOWE R STA IR S TOWER STAIRS +44 (0)1244 833 933 info@popupproducts.co.uk popupproducts.co.uk...
-
Page 2: Table Of Contents
BEFORE YOU START KNOW YOUR MI TOWER STAIRS’S COMPONENTS GETTING STARTED KNOW YOUR KIT LIST AND SPECIFICATIONS MI TOWER STAIRS 2.2M AND 4.2M - ASSEMBLY 13-14 KNOW YOUR STORAGE AND TRANSPORT PACK MITOWER STAIRS 2.7M AND 4.7M - ASSEMBLY 15-17... -
Page 3: Introduction
8 and 9. We want you to enjoy the safe and responsible use of MI TOWER STAIRS with the minimum of fuss and this guide is designed to get you up and running as quickly and as safely as possible. -
Page 4: Know Your Mi Tower Stairs
KNOW Y OUR Mi T OWER STAIRS P A RTS LI S T I NG 4 R UN G FR AM E ADJ USTA BLE LEG WITH RUB BER FOOT TO E BOAR D SE T WALK-TH ROUG H G AT E FR AME 2 R U NG FR AM E G UARD RAIL BRACE PAN EL EASY- LO C K STA BIL IS E R... - Page 5 KNOW YOUR MI TOWER STAIIRS COMPONENTS 1 GUARDRAIL BRACE PANEL jaw which is released by simply moving the jaw’s trigger. The claw must only be attached to the frame with the opening facing outward. Attachment with the jaw’s opening facing inward will not fully protect the user if lent upon and may cause serious injury or death.
-
Page 6: Know Your Mi Tower Stairs's Components
All components should be stored in a dry location where they will be protected from adverse weather conditions. When storing or transporting, keep frames upright and platforms flat. do not stack excessively to avoid stress damage. Please contact Pop Up Products for further details on maintenance and repair of your MI TOWER STAIRS components. Page 5... -
Page 7: Know Your Kit List And Specifications
108kg 1 1 1 kg 125kg 128kg MAXIMUM LEG LOAD See page 11 (Tying in) for Mi TOWER STAIRS heights outside the scope of this instruction guide or instances where the standard stabilisers cannot be deployed as instructed. Page 6... -
Page 8: Know Your Storage And Transport Pack
TOWER STAIRS has been designed so that all 4 RUNG FRAME X2 components can be safely stored within the Mi TOE BOARD SET HATCH PLATFORM TOWER STAIRS trolley assembly. See illustration. ADJUSTABLE LEG AND CASTOR X4 Product shown is Mi TOWER STAIRS 2.7m Page 7... -
Page 9: Registrations
REGISTRATIONS Page 8... -
Page 10: Safety Dos And Don'ts - Always
Tie back long hair and remove items of loose jewellery. ALWAYS Perform a full risk assessment prior to assembling or using MI TOWER STAIRS and abide by your ALWAYS findings. -
Page 11: Safety Dos And Don'ts - Never
Use MI TOWER STAIRS if you don’t understand something in this guide; please contact the supplier for advice. Assemble, use, move or dismantle MI TOWER STAIRS if you are tired or unwell or if you are under NEVER the influence of alcohol or drugs. -
Page 12: Before You Start
MOVING YOUR Mi TOWER STAIRS If Mi TOWER STAIRS is to be moved to a new location or a new level, it must be fully dismantled and rebuilt at the new location. DISMANTLING YOUR MI TOWER+ MI TOWER STAIRS is easily dismantled by simply reversing the erection procedure. -
Page 13: Getting Started
TYING IN Mi TOWER STAIRS heights outside the scope of this instruction guide or instances where the standard stabilis- ers cannot be deployed as instructed, such as in narrow stairwells or outdoors, can be built using special components and tying in the Mi TOWER STAIRS structure to add stability. -
Page 14: Mi Tower Stairs 2.2M And 4.2M - Assembly
Mi TOWER STAIRS 2.2M & 4.2M - ASSEMBLY STEP 1 Take four adjustable legs with rubber feet and insert two into the walk- through gate frame. Then insert the remaining two adjustable legs with rubber feet into the two rung frame. Adjust all leg height adjustment collars to bring all four legs to the lowest position. - Page 15 Ensure all hooks are facing outwards and correctly locked on to the frame tubes. STEP 7 Stand inside the Mi TOWER STAIRS and fit the platform on the sixth rung of the uppermost frame assembly, ensuring the trap door is positioned at the lowermost end of the Mi TOWER STAIRS.
-
Page 16: Mitower Stairs 2.7M And 4.7M - Assembly
Mi TOWER STAIRS 2.7M & 4.7M - ASSEMBLY STEP 1 Fully insert the adjustable legs with rubber feet into two walk-through gate frames, turning the leg’s height adjustment collar to bring alll four legs to the lowest position. STEP 2 Construct the lowermost frame assembly. - Page 17 Ensure all hooks are facing outwards and correctly locked on to the frame tubes. STEP 7 Stand inside the Mi TOWER STAIRS and fit the first platform on the eighth rung of the uppermost frame assembly, ensuring the trap door is positioned at the lowermost end of the Mi TOWER STAIRS.
- Page 18 Access the first platform and fit one set of conjoined frames to each end of the Mi TOWER STAIRS and apply the easy-lock frame clips. Next, attach a guardrail brace panel to the Mi TOWER STAIRS, with its lower jaw positioned above the fourteenth frame rung on the uppermost frame assembly.
-
Page 19: 10 Point Pre-Use Safety Checklist
10 POINT PRE-USE SAFETY CHECKLIST 10 POINT PRE-USE CHECKLIST FOR USERS Ensure tower is correct, complete and level. BEFORE USE Check all components are free from damage. COMPONENTS Ensure they are locked. CASTORS No environmental changes have influenced the safe use of your tower. ENVIRONMENT Check they are secure, &... - Page 20 pop u p pr od u c t s . c o . uk + 44 ( 0) 1 2 44 83 3 9 33 i nfo @ p o pu ppr oduc t s . c o . u k...
