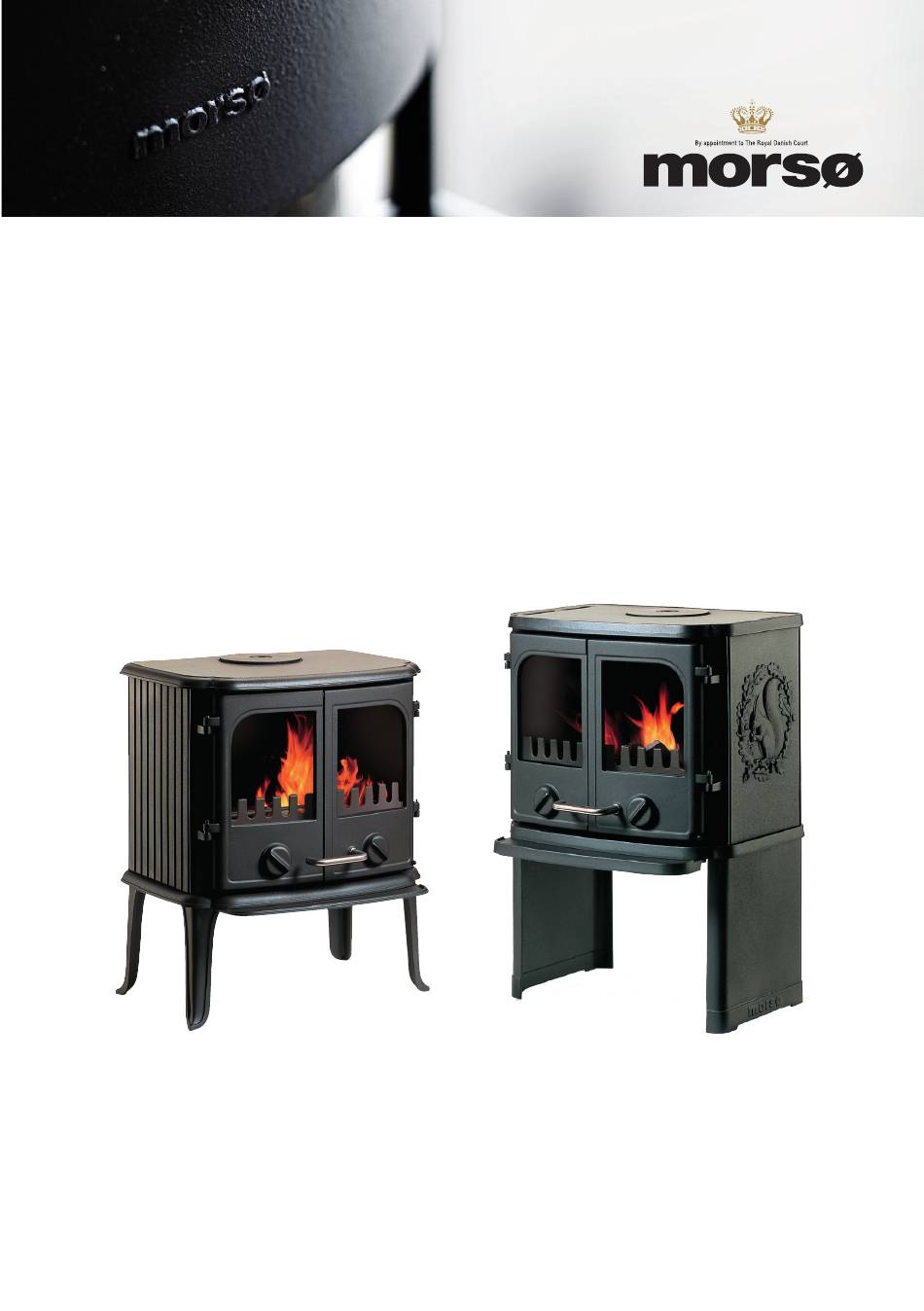

- Page 1 Installation and operating instructions Morsø 2110 & 2140 For use in Australia Distributed by: Castworks · 57 Industrial Drive· Braeside, Victoria, 3195 Australia +61 3 95881169 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: info@morsoe.com · Website: www.morsoe.com...
-
Page 2: Table Of Contents
Congratulations on the purchase of your new Morsø stove! Morsø, which is the largest supplier for the Dan- ish market, has manufactured stoves of the highest quality since1853. By following the instructions over- leaf, we are sure that you will enjoy the use and the benefits of your stove for many years to come. -
Page 3: Directions For Installation
1.0 Directions for installation 1.1 Before installation Make sure that the flue you intend to use is well constructed, well insulated and well swept. Your Morsø dealer will be able to advise you about the suitability of your existing flue system and can even arrange for a custom-built flue to be installed if you do not have one already. -
Page 4: Positioning The Stove
Combustion Air It is vitally important that your stove has sufficient combustion air available to it. A substantial volume of air is drawn through the stove over a period of time. (The resultant movement of air has a ben- eficial effect on the air quality of the house as a whole). But this air has to come from somewhere. Should the house be reasonably well sealed against wind and weather, it may be neccesary to pro- vide an air brick to allow the stove to breath. -
Page 5: Connection Of The Stove
1.4 Connection of the stove Your Panther will arrive with the flue collar (3) fitted to the rear and the flue blanking plate (4) fitted to the top plate. These two pieces can be swapped if the top outlet is to be con- nected to the flue. -
Page 6: Operating Instructions
2.0 Operating instructions 2.1 Fuel Your Morsø Panther has been designed to combine the very latest in technology with the classic beauty of cast iron. The operation of the stove is very straightforward, by design. But we would urge you to read all the way through the following hints before your first firing. -
Page 7: Wood & Briquettes
2.2 Wood and briquettes Seasoning Note that wood must be well seasoned if it is ever to work well for you. Logs should have been cut to length, split and stacked under cover until seasoned (over a year with many woods). Well- seasoned logs (with 20% moisture content) are light to handle, have radial cracking in the ends and burn without steaming or hissing. -
Page 8: Solid Fuel (Coal & Smokeless)
The door locking handle The handle will be warm to the touch when left in position for a period of time. If the stove is fired heavily, it will become hot (although not dangerously so). We would generally recom- mend that the handle is removed from the front of the stove once it has been used, especially if children are close by. - Page 9 Sulid Fuel in more detail Solid fuel prefers to be boosted with under-fed air, and you will find that it responds well if the firebed is clear of ash, and the grate is open. After the initial phase, partially closing the grate will mean that a good proportion of the combustion air will be delivered at a high temperature to the upper slot (above the door glass) by the air management system.
-
Page 10: Maintenance
3.0 Maintenance 3.1 Exterior & interior maintenance Glass At proper stocking almost no soot is deposited onto the glass in the furnace door. Cleaning glass is quite easy by means of Morsø glass cleaner or treble ammonia water. Ceramic glass replacement Ceramic glass cannot be recycled because it has a higher melting point that ordinary glass. -
Page 11: Problem Solving
3.2 Problem solving Symptoms - smoke emitting from the stove. - sluggish performance. - uncontrollable performance. - difficulty establishing a fire. Assuming that your fuel quality is reasonable, ALL the above problems can be solved by sort- ing out the flue system; consider cleanliness, correct diameter, correct length, correct con- figuration and correct termination point. -
Page 12: Supplement To Installation
4.0 Supplement to installation Installation clearances and floor protector (hearth) requirements: Refer to attached as 2918:2001 conformance certificate. Fuel type: Refer to compliance label – disregard any contradictory fuel type information in instruction manual Warning: the appliance & flue system shall be installed in accordance with as/nzs 2918:2001 and the appropriate requirements of the relevant building code or codes. - Page 13 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø stove is more than 160 years of dedicated stove design and manufacturing experi- ence. Quality control has always been at the heart of the production process and detailed measures have been put into place at all key stages of the build.
- Page 20 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 8 - 12 cm thick. • Light Light with dry kindling (use 1 - 2 kg). Leave the door ajar and stay close to the stove during the lighting phase.
