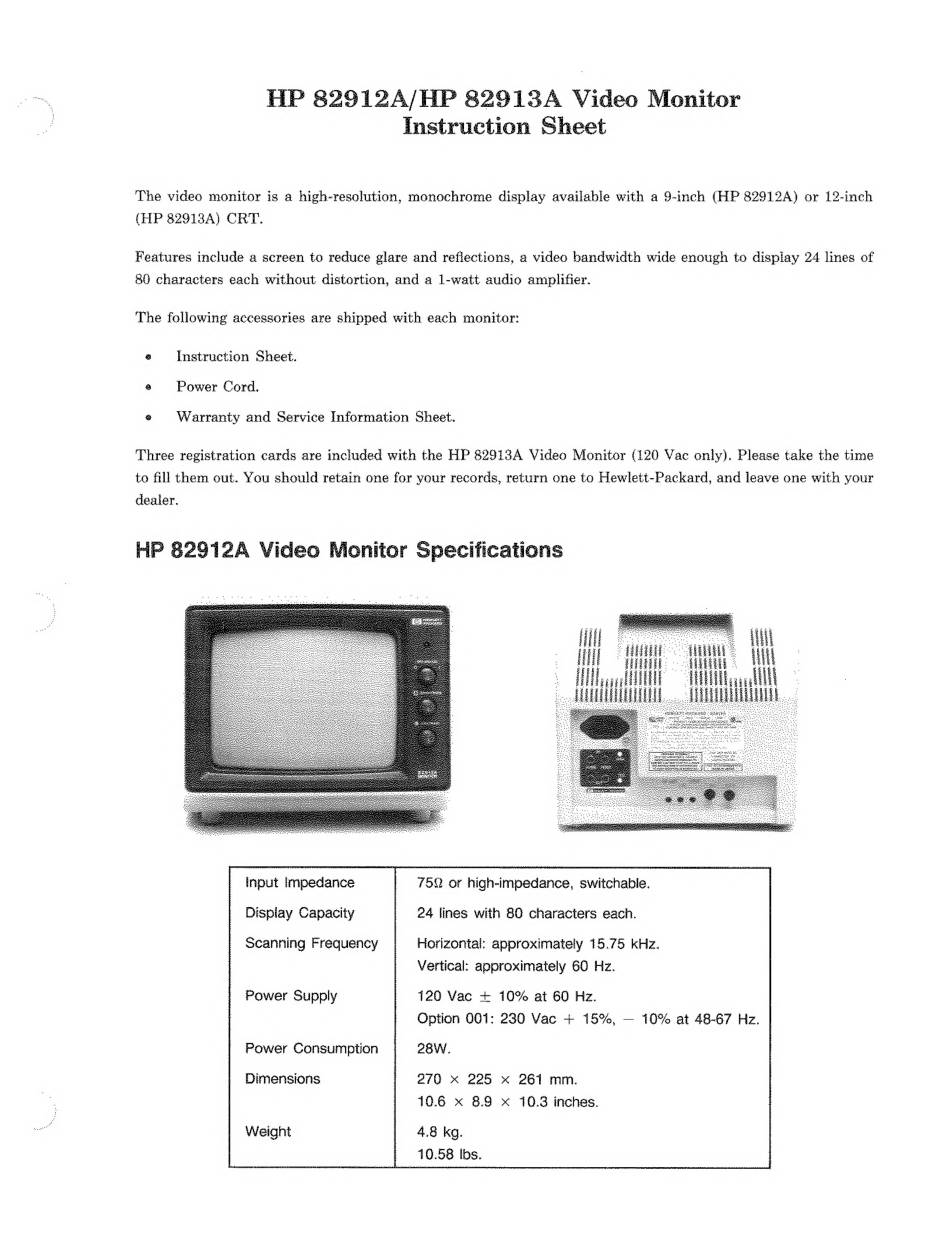

HP 82912A/HP 82913A Video Monitor
Instruction Sheet
The video monitor is a high-resolution, monochrome display available with a 9-inch (HP 82912A) or 12-inch
(HP 82913A} CRT.
Features include a screen to reduce glare and reflections, a video bandwidth wide enough to display 24 lines of
80 characters each without distortion, and a 1l-watt audio amplifier.
The following accessories are shipped with each monitor:
e Instruction Sheet.
e Power Cord,
e Warranty and Service Information Sheet.
Three registration cards are included with the HP 82913A Video Monitor (120 Vac only). Please take the time
to fill them out. You should retain one for your records, return one to Hewlett-Packard, and leave one with your
dealer.
HP 82912A Video Monitor Specifications
input Impedance | 75Q or high-impedance, switchable.
Display Capacity | 24 lines with 80 characters each.
Scanning Frequency Horizontal: approximately 15.75 kHz.
Vertical: approximately 60 Hz.
Power Supply 120 Vac + 10% at 60 Hz.
Option 0071: 230 Vac + 15%, — 10% at 48-67 Hz.
Power Consumption 28W.
Dimensions 270 x 225 x 261 mm.
10.6 x 8.9 x 10.3 inches.
Weight | 4.8 kg.
10.58 Ibs.
