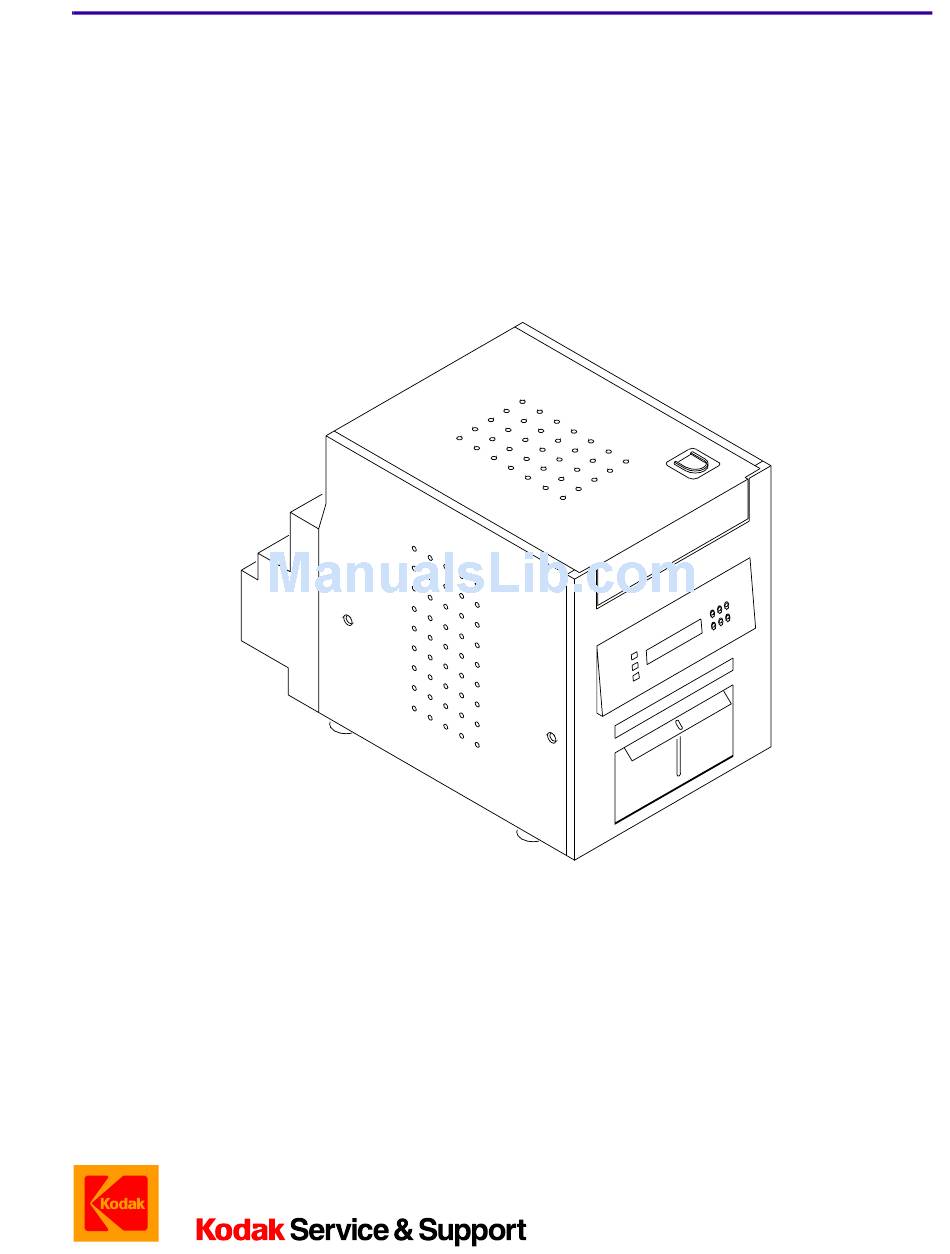

- Page 1 {SiteSpecifications}{Production}{KodakServiceSupport}{None} Publication No. SS2842-1 17OCT03 SPECIFICATIONS for the Kodak PHOTO PRINTER 6800 Service Code: 2842 A161_1050HC © Eastman Kodak Company, 2003...
- Page 2 Specifications.........
-
Page 3: Size And Weight
Equipment Specifications Section 1: Equipment Specifications Size and Weight Packed Height: 483.0 mm (19.0 in.) Width: 441.0 mm (17.4 in.) Depth: 641.0 mm (25.3 in.) Weight: 32.0 kg (70.54 lb) Unpacked 346.0 mm (13.6 in.) 290.0 mm 490.0 mm (11.4 in.) (19.3 in.) -
Page 4: Space Requirements
Left Side: 7.62 cm (3.00 in.) Front: 7.62 cm (3.00 in.) Back: 7.62 cm (3.00 in.) Power Requirements The PRINTER has an auto-detecting power supply. Power Voltage Consumption Frequency 90 - 264 V AC 5.0 - 2.5 A 50 / 60 Hz... -
Page 5: Environment Requirements
Site Specifications Environment Requirements Important Do not install the PRINTER in direct sunlight. Ambient Operating Temperature: 15 - 35 C (59 - 95 F) Relative Humidity: 20 - 80% non-condensing Sound Level (idle): 54 dB or lower Sound Level (printing):... - Page 6 EN 61000-3-3, EN 55024:98, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11 Australia AS/NZS 3548 “FCC” - class A limits must be verified with the manufacturer’s Declaration of Conformity using a NVLAP or A2LA lab. New Zealand AS/NZS 3548...
