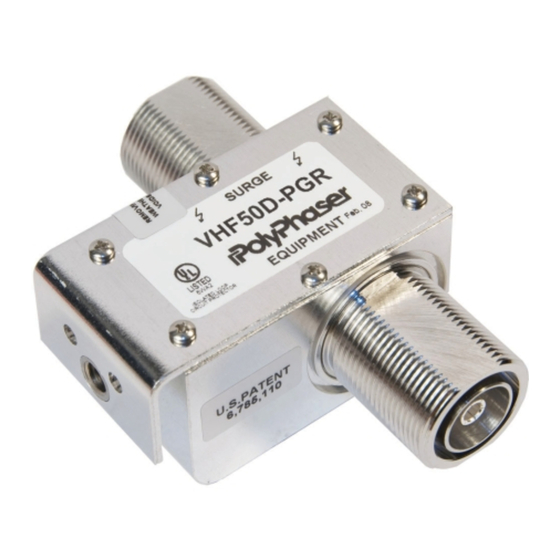

GX, VHF, VUF Series Mounting & Grounding

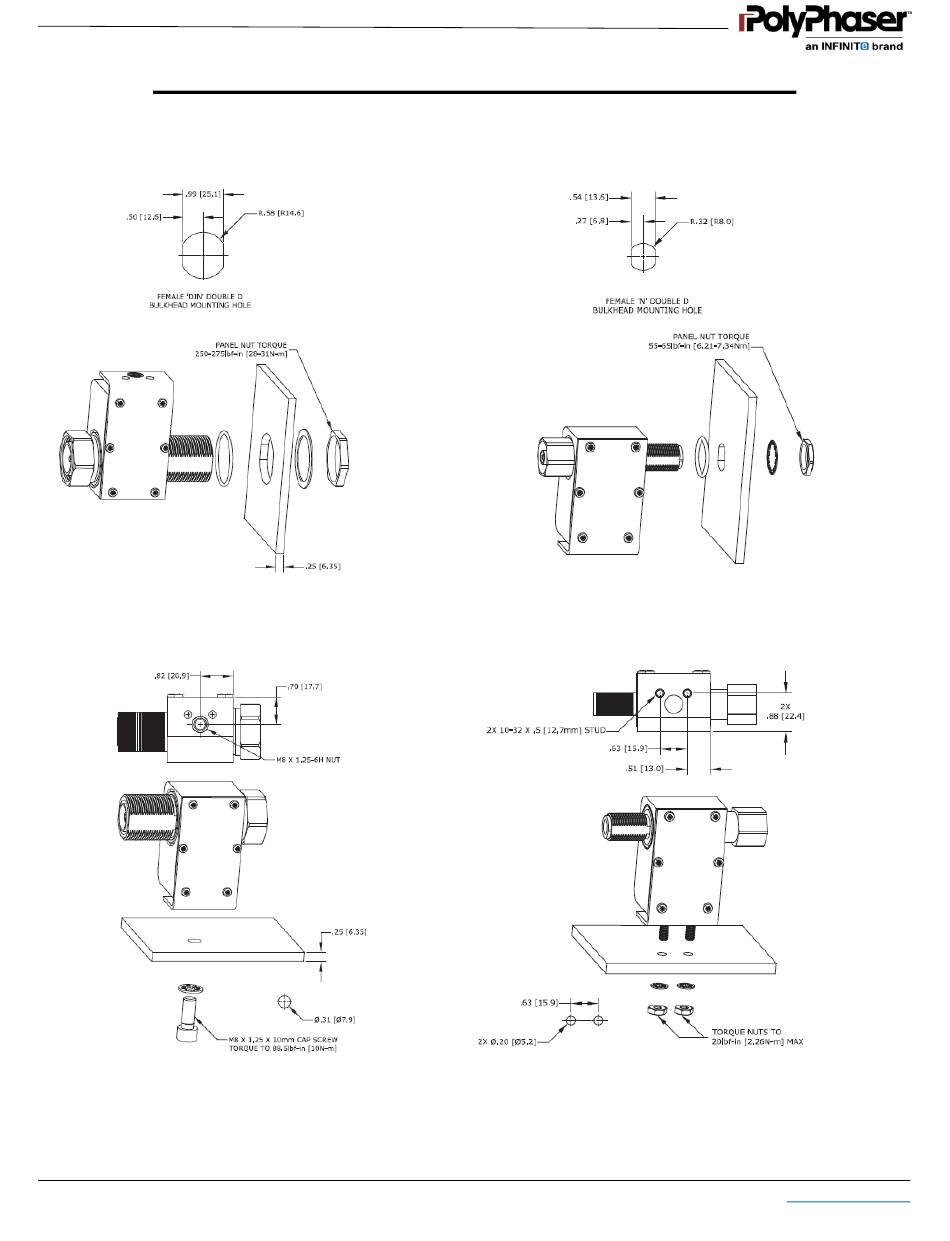

TYPICAL BULKHEAD GROUNDING
Image #1
TYPICAL FLANGE MOUNTING
Image #2
NOTE: O-Ring and other hardware are supplied with each unit.
Page 1 of 4
8100-3108 Rev B
+1.208.635.6400 |
www.polyphaser.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PolyPhaser GX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Infinite PolyPhaser GX Series

  • Page 1 GX, VHF, VUF Series Mounting & Grounding TYPICAL BULKHEAD GROUNDING Image #1 TYPICAL FLANGE MOUNTING Image #2 NOTE: O-Ring and other hardware are supplied with each unit. Page 1 of 4 8100-3108 Rev B +1.208.635.6400 | www.polyphaser.com...
  • Page 2 Image #3 identifies the grounding kit for bulkhead installation (N connectors), with hardware description. The Part Number of this kit is 9100-0350, which can be purchased seperately. Image #3 #1 = LABEL BAR CODE PRINTED #2 = POLYBAG 3x5 2MIL #3 = NUT 5/8-24 303 HEX SS #4 = WASHER 5/8 410 SS #5 = RING TERM 5/8”...
  • Page 3 Image #5 shows the typical hardware kit (Part Number 9100-0441) that comes with the 7/16 DIN units. Grounding can be accomplished with the provided Ring Terminal and #6 AWG. Image #5 Item #1 = NUT M29 X 1.5 SST DIN Item #2 = O-RING 025 SILICONE Item #3 = RING TERM 6AWG DIN 1.5”ID Item #4 = POLYBAG 2.5 X 2.5 IN 1.5...
  • Page 4 Using a flat copper strap is also a good way to drain surge energy to the ground. When used in conjunction with a single point grounding system, such as the PEEP-M and PB-M grounded entry panels, the copper strap is especially effective in reducing surge currents to the equipment. WARNING - Do not connect when a storm is near! Do not connect when transmissions are occurring! Do not stay in an area that has operating equipment in an electrical storm! The impulse suppressor may save the equipment from danger, but it cannot keep you or anyone else safe in the area! These commodities or technology are exported from the U.S.
