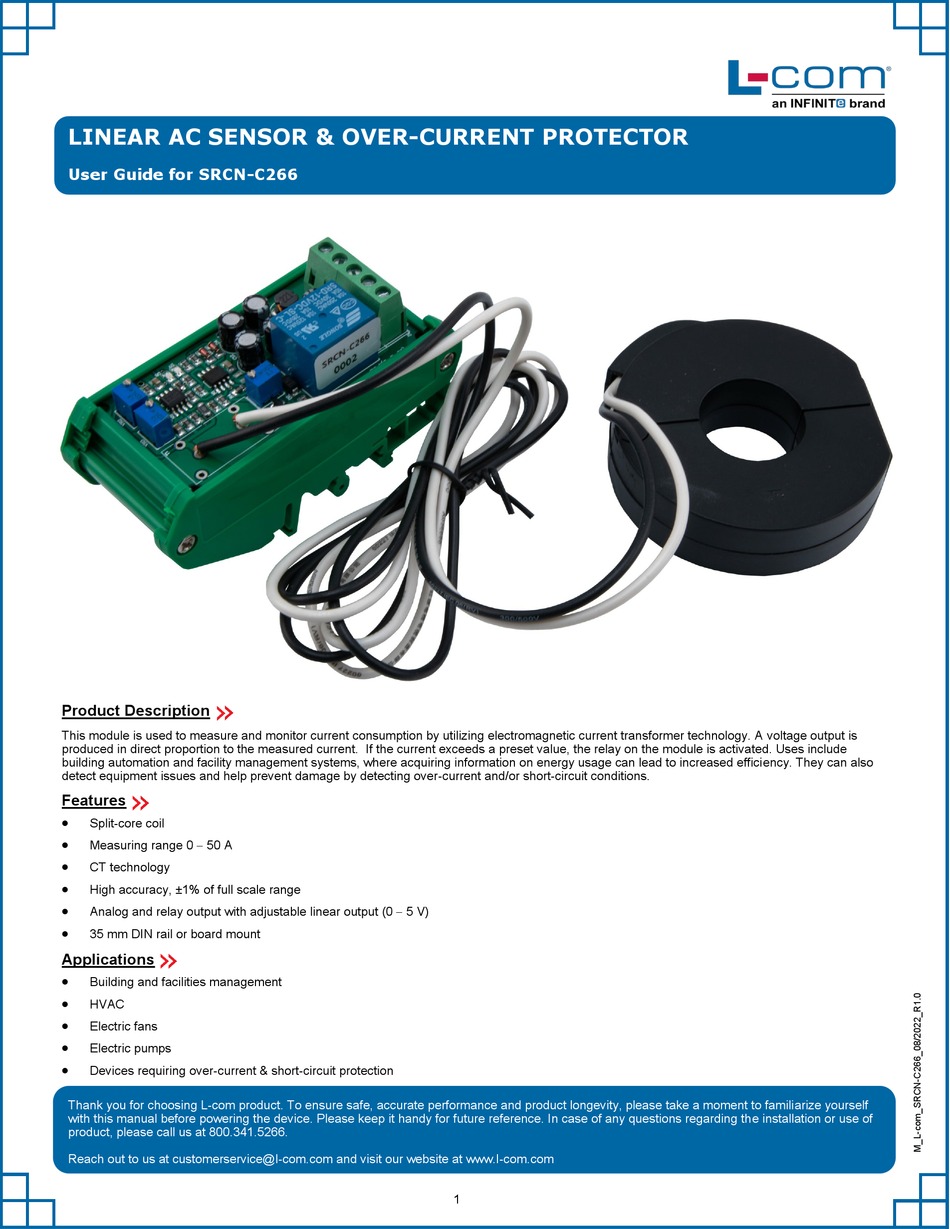

Infinite L-com SRCN-C266 User Manual

LINEAR AC SENSOR & OVER-CURRENT PROTECTOR
User Guide for SRCN-C266

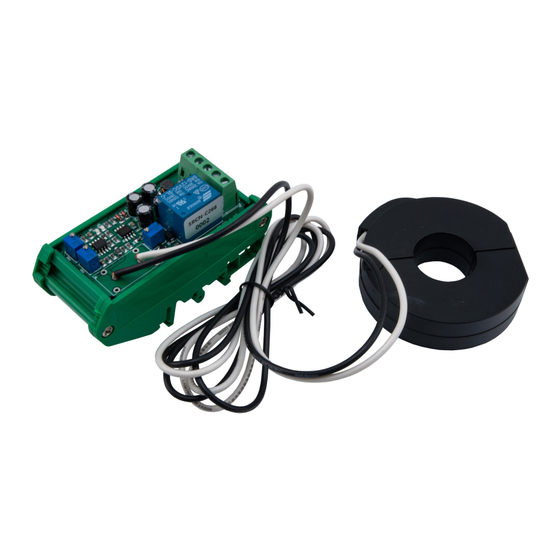

Product Description
This module is used to measure and monitor current consumption by utilizing electromagnetic current transformer technology. A voltage output is
produced in direct proportion to the measured current. If the current exceeds a preset value, the relay on the module is activated. Uses include
building automation and facility management systems, where acquiring information on energy usage can lead to increased efficiency. They can also
detect equipment issues and help prevent damage by detecting over-current and/or short-circuit conditions.
Features

Split-core coil

Measuring range 0  50 A

CT technology

High accuracy, ±1% of full scale range

Analog and relay output with adjustable linear output (0  5 V)

35 mm DIN rail or board mount
Applications

Building and facilities management

HVAC

Electric fans

Electric pumps

Devices requiring over-current & short-circuit protection
Thank you for choosing L-com product. To ensure safe, accurate performance and product longevity, please take a moment to familiarize yourself
with this manual before powering the device. Please keep it handy for future reference. In case of any questions regarding the installation or use of
product, please call us at 800.341.5266.
Reach out to us at customerservice@l-com.com and visit our website at www.l-com.com
1
