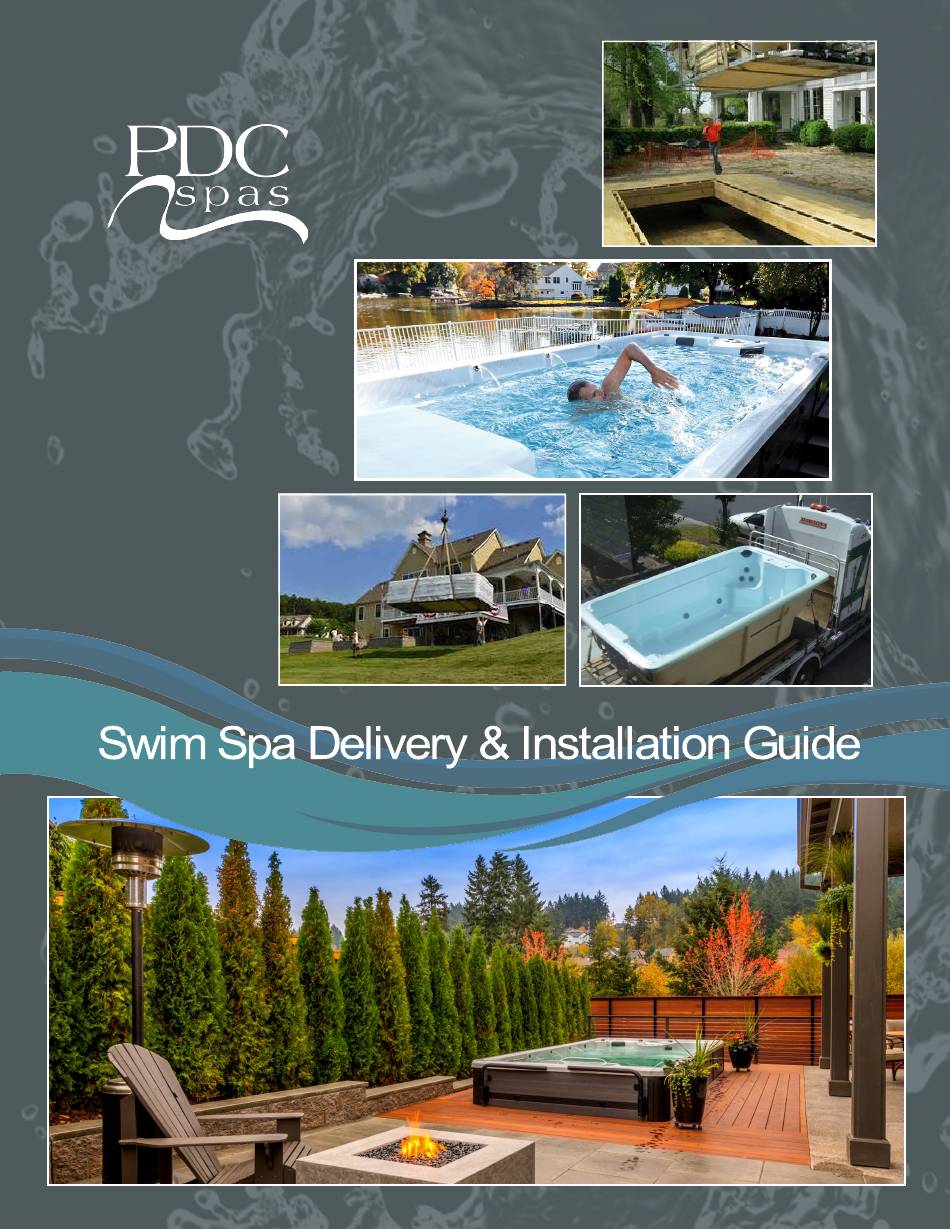

PDC spas Vitality SL12s Installation Manual

Swim spa
Hide thumbs Also See for Vitality SL12s:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vitality SL12s and is the answer not in the manual?

Questions and answers

Summary of Contents for PDC spas Vitality SL12s

  • Page 4: Site Preparation Guidelines

    Congratulations on your choice for a lifestyle enhanced with wellness, fun and relaxation! Your new swim or fitness spa from PDC Spas will deliver years of wellness for you and your family in the comfort and convenience of your own home.
  • Page 5 The swim spa loca on and the swim spa itself must be level before filling with water. Review Installing the Shim Guidelines found in the Owner’s Manual under Ownership on the pdcspas.com site. This must be completed prior to filling your unit with water and an understanding of this procedure prior to installa on is recommended. Allow adequate space to access the equipment behind the four access panels on the swim spa cabinet.
  • Page 6 Installation Guidelines All swim spa sides must be accessible for regular maintenance or in the event that service is required. General maintenance will require entry to equipment behind cabinet panels. It is recommended to allow 3 feet of access to all sides of the swim spa for rou ne and service maintenance.
  • Page 7 ÊOutdoorÊInstalla onÊConsidera ons:ÊÊÊ 1. Local electrical and plumbing codes. 2. Consider local codes pertaining to fencing, enclosures, walls, electrical and plumbing. You will need to ensure that your swim spa is an adequate distance from power lines, both aboveground and underground. Your swim spa will also need to be childproofed.
  • Page 8 Par allyÊorÊFullyÊRecessedÊInstalla ons:ÊÊ Ê PDC Spas does not recommend this type of installa on, although if this is what you have chosen for your new swim spa, please review the following considera ons. In addi on to the Outdoor and Indoor Installa on Considera ons on the previous pages, be knowledgeable of the following: 1.
  • Page 9 PDC Spas Installation Inspirations...
  • Page 10 Enhance Fitness and Fun with Aquatic Equipment...
  • Page 11: Wiring Guidelines

    All (each) swim spa control systems require the installa on of a ground fault circuit interrupter (GFCI) protector or equivalent; (RCD, for export installs), at the power source (NOT SUPPLIED BY PDC SPAS) by a qualified electrician in accordance with all codes and regula ons. For dual zone models, each support control system, one for fitness zone and one for hot tub zone, requires protec on.
  • Page 12: Electrical Guidelines

    Electrical Guidelines (Stateside) ATTENTION ELECTRICIAN: All PDC Swim Spa Units must be installed with an approved G.F.C.I. in accordance with all applicable codes. Installa on of G.F.C.I. varies among those manufacturers. Follow each manufacturer’s guidelines to ensure proper opera on and protec on of swim spa occupants. This diagram is a “Typical”...
  • Page 13 12 Foot Fitness Spa Models Dimensions / Component Location SL12s 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=143 ” E=91 ” F=55 ” G=51 ” H=90 ” I=142 ” Specifica ons are accurate at me of prin ng. Manufacturer has the op on to update without no ce. Contact the factory for further details and confirma on prior to site prepara on.
  • Page 14 15 Foot Fitness Spa Models Dimensions / Component Location SL15s SL15 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=179 ” E=91 ” F=55 ” G=51 ” H=90 ” I=178 ” Specifica ons are accurate at me of prin ng. Manufacturer has the op on to update without no ce. Contact the factory for further details and confirma on prior to site prepara on.
  • Page 15 15 Foot Jetted Swim Spa Models Dimensions / Component Location FX15 FX15s 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=179 ” E=91 ” F=55 ” G=51 ” H=90 ” I=178 ” Specifica ons are accurate at me of prin ng. Manufacturer has the op on to update without no ce. Contact the factory for further details and confirma on prior to site prepara on.
  • Page 16 15 Foot Premium Jetted Swim Spa Models Dimensions / Component Location SX15 SX15s 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=179 ” E=91 ” F=55 ” G=51 ” H=90 ” I=178 ” Specifica ons are accurate at me of prin ng. Manufacturer has the op on to update without no ce. Contact the factory for further details and confirma on prior to site prepara on.
  • Page 17 17 Foot Premium and Jetted Swim Spa Models Dimensions / Component Location FX17 SX17 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=203 ” E=91 ” F=55 ” G=51 ” H=90 ” I=202 ” D=203 ”...
  • Page 18 19 Foot Premium and Jetted Swim Spa Models Dimensions / Component Location FX19 SX19 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=227” E=91 ” F=55 ” G=51 ” H=90 ” I=225 ” D=179 ”...
  • Page 19 19 Foot Dual Zone Jetted Swim Spa Models Dimensions / Component Location FX219 FX219s 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=227” E=91 ” F=55 ” G=51 ” H=90 ” I=225 ” D=179 ”...
  • Page 20 19 Foot Dual Zone Premium Jetted Swim Spa Models Dimensions / Component Location SX219 SX219s 10” 10” 10” 10” Control Center Jet Pump Heater / Pack Recommended Wire Feed D=227” E=91 ” F=55 ” G=51 ” H=90 ” I=225 ” D=179 ”...
  • Page 21 15 and 17 Foot Patented Propulsion Models Dimensions / Component Location TSX15 TSX17 5” 48” 32” 24” Hydraulic Propulsion Control Center Jet Pump Heater / Pack Recommended Wire Feed D=179 ” E=91 ” F=55 ” G=51 ” H=90 ” I=178 ”...
  • Page 22 19 Foot and Dual Zone Propulsion Models Dimensions / Component Location TSX19 TSX219 32” 10” 24” 10” Hydraulic Propulsion Control Center Jet Pump Heater / Pack Recommended Wire Feed D=227 ” E=91 ” F=55 ” G=51 ” H=90 ” I=225 ”...
  • Page 24 The manufacturer reserves the right to change product as deemed necessary without no fica on. As a manufacturer we stand behind our products in accordance to our wri en limited warranty. All measurements and dimensions are approximates. Your retailer is an independent business operator not employed by the manufacturer. PDC Spas, Plas c Development Co, Inc., can not accept responsibility for any representa ons, statements, or contracts made by any retailer beyond the parameters of our warranty.
