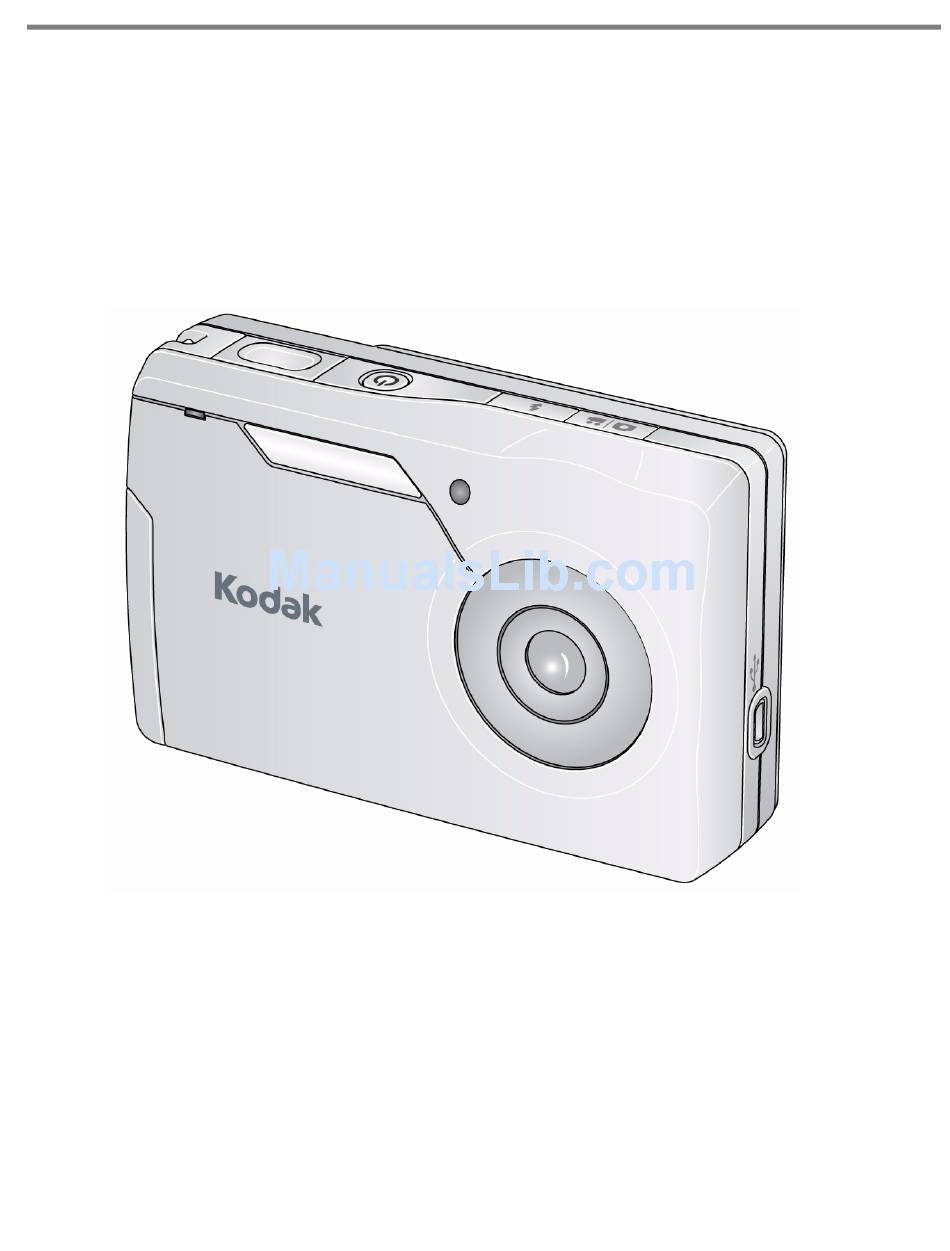

Kodak EasyShare C610
digital camera
Extended user guide
www.kodak.com
For interactive tutorials,
www.kodak.com/go/howto
For help with your camera,
www.kodak.com/go/c610support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C610 - EXTENDED GUIDE and is the answer not in the manual?

Questions and answers

Related Manuals for Kodak C610 - EXTENDED GUIDE

Summary of Contents for Kodak C610 - EXTENDED GUIDE

  • Page 1 Kodak EasyShare C610 digital camera Extended user guide www.kodak.com For interactive tutorials, www.kodak.com/go/howto For help with your camera, www.kodak.com/go/c610support...
  • Page 2 Eastman Kodak Company Rochester, NY 14650 © Eastman Kodak Company, 2008 All screen images are simulated. Kodak and EasyShare are trademarks of Eastman Kodak Company. P/N 4F8340_en...
  • Page 3 Product features Front view Microphone Mode button Shutter button Self-timer/Video light Power button Lens Flash USB/AV Out port Flash button www.kodak.com/go/support...
  • Page 4 Product features Back view optional Battery compartment Review button Slot for optional SD card Digital zoom button Share button Menu button Delete button 10 Tripod socket OK button Info/Display Self-timer www.kodak.com/go/support...

  • Page 5: Table Of Contents

    Loading the AAA batteries ................1 Turning on the camera .................. 2 Setting the language, date/time..............2 Storing pictures on an SD or SDHC card ............3 2 Taking pictures/videos ................4 Taking a picture .................... 4 Using the digital zoom .................. 5 Using the flash....................
  • Page 6 4 Doing more with your camera .............18 Changing picture-taking settings ..............18 Customizing your camera ................20 Using exposure compensation to adjust picture brightness ......22 Using camera Help ..................22 Using the framing grid to compose a picture..........22 Sharing your pictures...................

  • Page 7: Setting Up Your Camera

    Setting up your camera Attaching the strap Loading the AAA batteries To extend battery life, see page www.kodak.com/go/support...

  • Page 8: Turning On The Camera

    Setting the language, date/time Language: to change. OK to accept. Date/Time: At the prompt, press OK. for previous/next field. to change. OK to accept. NOTE: To change the date/time and language in the future, use the Menu button (page 20). www.kodak.com/go/support...

  • Page 9: Storing Pictures On An Sd Or Sdhc Card

    Setting up your camera Storing pictures on an SD or SDHC card Your camera has internal memory. You can purchase an SD or SDHC card to conveniently store more pictures and videos. CAUTION: A card can only be inserted one way; forcing it may cause damage.

  • Page 10: Taking Pictures/Videos

    You can repeatedly press Display to turn on/off status icons and framing grid. Display Reviewing the picture just taken After you take a picture or video, the LCD displays a quickview for several seconds. Play/pause a video Delete To review pictures/videos anytime, see page www.kodak.com/go/support...

  • Page 11: Using The Digital Zoom

    Taking pictures/videos Using the digital zoom Use digital zoom to get up to 5X closer to your subject. Press Telephoto (T) to zoom in. Press Wide Angle (W) to zoom out. The zoom indicator shows zoom status. NOTE: You may notice decreased image quality when using digital zoom.

  • Page 12: Using The Flash

    Every time you take a picture, regardless of the lighting conditions. Use Fill when the subject is in shadow or is “backlit” (when the light is behind the subject). In low light, hold the camera steady or use a tripod.

  • Page 13: Using Different Modes

    Point-and-shoot simplicity when taking pictures in practically any Scene situation. (See page Capturing video. Video NOTE: Audio is captured, but will not play on the camera. To hear the audio, transfer the video to your computer. Taking a video 1 Press the Mode button. Mode 2 Press to highlight Video, then press the OK button.

  • Page 14: Using Scene (Scn) Modes

    SCN, then press the OK button. 3 Press to view scene mode descriptions. If the mode description turns off before you finish reading it, press the OK button. 4 Press the OK button to choose a Scene mode. SCN mode Portrait Full-frame portraits of people.

  • Page 15: Using The Self-Timer

    Taking pictures/videos Using the self-timer Use the self-timer when you want to be included in a picture, or to ensure a steady Shutter button press. Place the camera on a tripod or flat surface. 1 In any Still mode, press...

  • Page 16: Understanding The Picture-Taking Icons

    Taking pictures/videos Understanding the picture-taking icons Picture size Flash mode Self timer Pictures/time remaining Date stamp Image storage location Digital zoom indicator Exposure metering White Balance Battery level Capture mode Exposure compensation www.kodak.com/go/support...

  • Page 17: Working With Pictures/Videos

    Working with pictures/videos Reviewing pictures/videos Press the Review button to view and work with your pictures/videos. 1 Press the Review button. Review 2 Press to view previous/next picture/video. Magnifying pictures 1 While reviewing a picture, press W/T to magnify a picture up to 5X.

  • Page 18: Deleting Pictures/Videos

    NOTE: To delete protected pictures/videos, remove protection first. (See page 13.) Using the undo delete feature If you accidentally delete a picture, you may be able to use Undo Delete to retrieve it. This feature is only available immediately after you delete a picture. www.kodak.com/go/support...

  • Page 19: Cropping Pictures

    4 Press Telephoto (T) to zoom in, or to move the crop box. Press OK, then follow the screen prompts. The picture is cropped and saved as a new one. The original is saved. (Cropped pictures cannot be cropped again.) ■...

  • Page 20: Rotating Pictures

    Working with pictures/videos Rotating pictures You can change a picture to display in portrait or landscape orientation. 1 Press the Review button, then for previous/next picture. 2 Press the Menu button. Press to highlight Edit Picture, then press OK. 3 Press to highlight Rotate Picture, then press OK.
  • Page 21 On, then press OK. 3 Press to highlight Begin Show, then press OK. The slide show repeats until you press OK or until battery power is exhausted. The loop feature remains until you change it. Displaying pictures/videos on a television You can display pictures/videos on a television, computer monitor, or device equipped with a video input.

  • Page 22: Copying Pictures/Videos

    Working with pictures/videos Copying pictures/videos You can copy pictures/videos from a card to internal memory or from internal memory to a card. Before you copy, make sure that: ■ A card is inserted in the camera. ■ The camera’s image storage location is set to the location from which you are...

  • Page 23: Understanding The Review Icons

    Working with pictures/videos Understanding the review icons Pictures Protected Print tag/number of prints Favorite tag Picture/Video number Email tag Image storage location Review Videos Protected Video length Favorite tag Picture/Video number Email tag Image storage location Review www.kodak.com/go/support...

  • Page 24: Doing More With Your Camera

    Press the Menu button to exit the menu. NOTE: To better understand each menu option, use camera Help (see page 22). Some settings remain until you change them; others, until you change modes or turn off the camera. Some modes offer limited settings. Press Menu, , and...
  • Page 25 Choose a lower ISO setting in brightly lit scenes; use a higher ISO for low-light scenes. Choose Auto, 80, 100, 200, 400, 800. Control the camera’s sensitivity to light. NOTE: ISO returns to Auto when the camera is set to SCN mode. Unavailable in Video mode. Color Mode High Color Choose color tones.

  • Page 26: Customizing Your Camera

    Setup, then press OK. 3 Press to highlight a setting, then press OK. 4 Choose an option, then press OK. 5 Press the Menu button to exit. To better understand each menu option, use camera Help (see page 22).
  • Page 27 Press Menu, to highlight Setup, Options then OK to access settings Auto Power Off 10 minutes Choose inactivity time until camera turns off. 5 minutes 3 minutes 1 minute TV Out NTSC—used in North America and Japan. Choose the regional setting for connecting to PAL—used in Europe and China.

  • Page 28: Using Exposure Compensation To Adjust Picture Brightness

    ■ Press to increase exposure compensation. The exposure compensation level is shown on the LCD; the LCD gets brighter or dimmer. Using camera Help To better understand each menu option, use camera Help. Highlight a menu choice.

  • Page 29: Sharing Your Pictures

    For details, click the Help button in EasyShare software. For more information on printing from your computer, PictBridge enabled printer, or card, see page NOTE: For the best 4 x 6 in. (10 x 15 cm) prints, set the camera to a 3:2 picture size. www.kodak.com/go/support...
  • Page 30 The Email icon appears in the status area. Press the Share button to exit the menu. ■ NOTE: To add an email address, use the Add Email menu choice. Then use the on-camera keyboard. Third—transfer and email When you transfer these pictures/videos to your computer, EasyShare software prompts you to send them.
  • Page 31 2 Press the Menu button, highlight Favorite, then press OK. The Favorite icon appears in the status area. To remove the tag, press OK again. View favorites on your camera 1 Press the Review button, then the Menu button.

  • Page 32: Transferring And Printing Pictures

    4 Follow the on-screen instructions to install the software. NOTE: When prompted, take few minutes to electronically register your camera and software. To register later, visit www.kodak.com/go/register. 5 If prompted, restart the computer. If you turned off anti-virus software, turn it back on.

  • Page 33: Transferring Pictures With The Usb Cable

    Transferring and printing pictures Transferring pictures with the USB cable 1 Turn off the camera. Connect the USB cable (U-8). Turn on the camera. Kodak EasyShare software opens on your computer and prompts you through the transfer process. NOTE: Visit www.kodak.com/go/howto...

  • Page 34: Printing Pictures

    If the printer is capable, choose a print size. All Pictures—Print all pictures in internal memory, on a card. Choose the number of copies. Image Storage—Access internal memory, a card. NOTE: During direct printing, pictures are not permanently transferred or saved to the computer or printer. www.kodak.com/go/support...
  • Page 35 1 Turn off the camera and printer. 2 Disconnect the USB cable from the camera and the printer. Using a printer that is not PictBridge enabled For details on printing pictures from your computer, click the Help button in EasyShare software. Ordering prints online Kodak Gallery (www.kodakgallery.com) is one of the many online print services...

  • Page 36: Troubleshooting

    Install new batteries (see page turn on. ■ Charge rechargeable batteries. Camera does not ■ Remove the battery, then reinsert or replace it. If the camera still does turn off. not function, visit www.kodak.com/go/c support and select Interactive Troubleshooting & Repairs.
  • Page 37 Troubleshooting If... Try one or more of the following Picture is too light. ■ Move so there is at least 2 ft (0.6 m) between the camera and the subject. ■ Decrease Exposure Compensation (see page 22). Picture is not clear.
  • Page 38 Turn on the camera (see page with the camera. ■ Install new batteries (see page 1) or charge rechargeable batteries. ■ Connect the USB cable to camera and computer port (see page 27). ■ Install the software (see page 26). ■...
  • Page 39 Transfer the picture to the computer (see page 27), or delete it (see page 12). format ■ Camera error Turn camera off, then back on. If the message reappears, visit www.kodak.com/go/c610support and select Interactive #XXXX. See user’s Troubleshooting & Repairs. guide. www.kodak.com/go/support...

  • Page 40: Getting Help

    Software Get information on EasyShare software www.kodak.com/go/easysharesw (or click the Help button in EasyShare software) Get help with the Windows operating system and www.kodak.com/go/pcbasics working with digital pictures Other Get support for other cameras, software, accessories www.kodak.com/go/support Get information on Kodak inkjet products www.kodak.com/go/inkjet...
  • Page 41 Getting help NOTE: If you have questions concerning this product, you may speak with Kodak customer support. Australia 1800 267 588 Netherlands 020 346 9372 Austria 0179 567 357 New Zealand 0800 880 120 Belgium 02 713 14 45 Norway...

  • Page 42: Appendix

    Aperture—f/4.5 or f/7.2 Digital zoom—5.0X continuous in 0.2X increments Shutter—Mechanical shutter with CCD, 1/2–1/1500 sec. Color display—6.1 cm (2.4 in.); 150K (480 x 240) pixels; 30 fps Image storage—Optional SD/SDHC Card . (The SD logo is a trademark of the SD Card Association.)
  • Page 43 2.1 MP (16:9): 1920 x 1080 pixels 1.2 MP (4:3): 1280 x 960 pixels Video capture—VGA (640 x 480) @ 15 fps; QVGA (320 x 240) @ 30 fps; movie length limited to less than 80 mins. Color modes—High Color, Natural Color, Low Color, Black & White, Sepia White balance—Auto, Daylight, Tungsten, Fluorescent, Open Shade...

  • Page 44: Care And Maintenance

    ° ° Operating temperature—32–104 F (0–40 Size—82 mm (3.2 in.) x 52 mm (2.0 in.) x 23.5 mm (0.9 in.) @ power off Weight—80 g (2.8 oz) without battery or card Care and maintenance ■ If you suspect water has gotten inside the camera, remove the battery and card.

  • Page 45: Upgrading Your Software And Firmware

    If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer support. ■ The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, visit www.kodak.com/go/accessories. ■...

  • Page 46: Battery Life

    Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature. ■ Remove the battery when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact Kodak customer support.

  • Page 47: Limited Warranty

    If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid.
  • Page 48 In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date or such longer period as required by law.

  • Page 49: Regulatory Compliance

    FCC compliance and advisory Kodak EasyShare C610 digital camera This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 50 à la norme NMB-003 du Canada. FCC and Industry Canada—This device complies with Industry Canada RSS-210 and FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 51 4 on/off, i from internal memory, 12 review, ii, 11 from SD/SDHC card, 12 share, ii protecting pictures, videos, 13 shutter, i displaying slide show, 14 zoom, ii, 5 disposal, recycling, 38, 44 doing more with your camera, 18 www.kodak.com/go/support...
  • Page 52 Index download pictures, 26 image storage, 20 information about pictures, videos, 12, 16 EasyShare software installing installing, 26 batteries, 1 emailing pictures, videos, 24 SD card, 3 exposure software, 26 compensation, 22 internal memory metering, 19 storage capacity, 39 external video device...
  • Page 53 38, 44 online prints, ordering, 29 red-eye, flash, 6 regulatory information, 43 repair, 34 PictBridge enabled printer, 28 review button, ii, 11 pictures reviewing pictures copying, 16 as you take them, 4 cropping, 13 LCD, 11 emailing tagged, 24 www.kodak.com/go/support...
  • Page 54 19 reviewing pictures/video white balance, 19 deleting, 12 settings protecting, 13 picture taking, 18 reviewing videos setup mode, using, 20 LCD, 11 share button, ii slide show, 14 sharing pictures, videos, 23 rotating pictures, 14 shutter running slide show, 14...
  • Page 55 4 Windows OS-based computers tripod socket, ii installing software, 26 troubleshooting, 30 wrist strap, 1 turning camera on and off, 2 zoom, 5 out, 21 zoom button, ii undelete, undo, 12 upgrading software, firmware, 39 URLs, Kodak web sites, 34...
