Summary of Contents for Kurt CROSSOVER DX8H

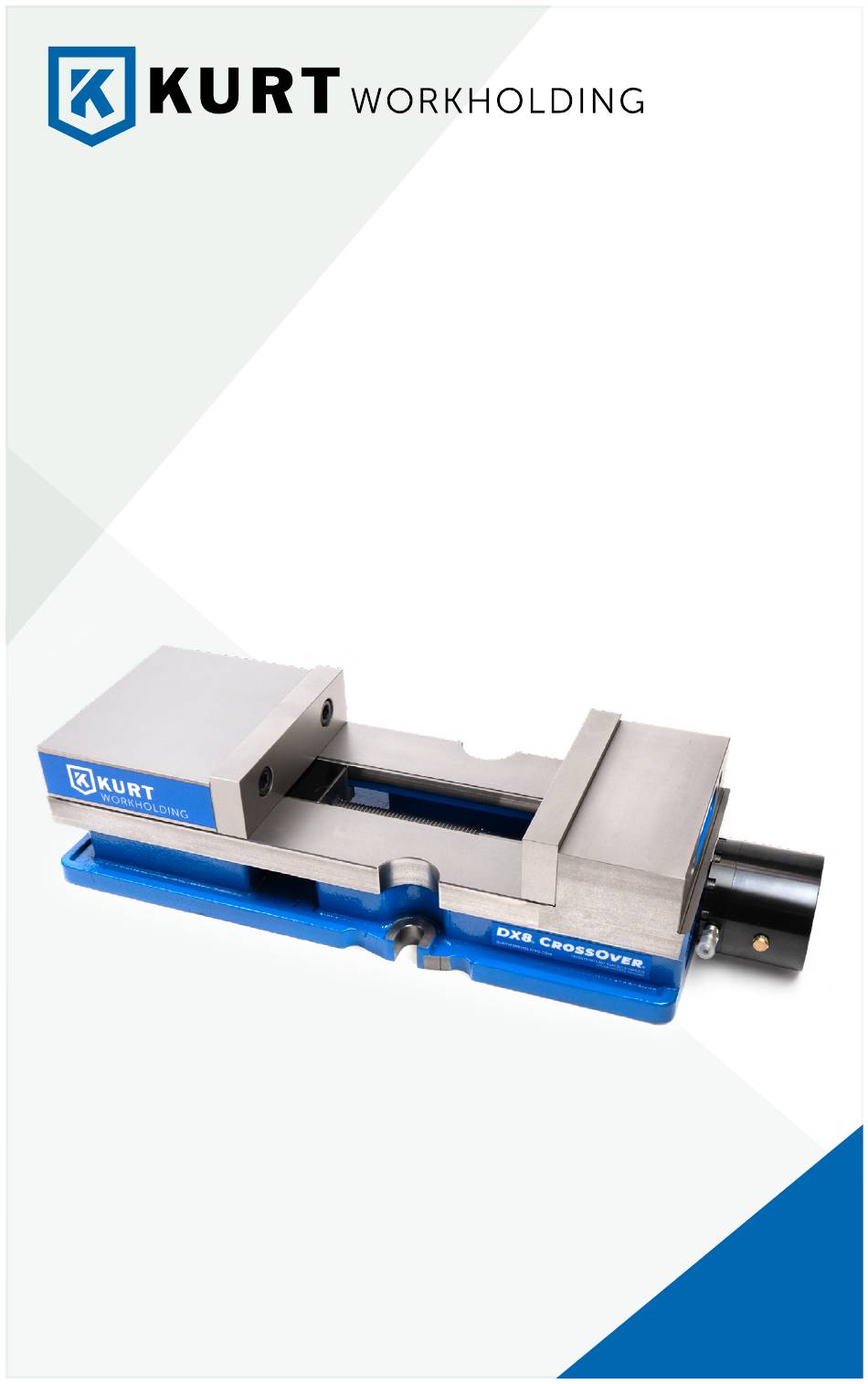

- Page 1 DX8H CROSSOVER ™ ™ ANGLOCK VISE HYDRAULIC VERSION Operating Instruction Manual DX8H/DX8HR ENGLISH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ...................... 3 Set-Up Instructions ..................4 Hydraulic Set-Up ...................5-9 Operating Instructions ................10-15 DX8H Parts List .....................16 DX8H Mechanical Drawing .................17 DX8HR Parts List ...................18 DX8HR Mechanical Drawing ...............19 KHU8 Mechanical Drawing .................20 Maintenance Schedule ................21-22 Hydraulic Unit Replacement Instructions ........... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Kurt DX8H. You have just purchased one of the best machine vises in the industry. The outstanding accuracy of this product is second to none. Backed by a lifetime warranty against workmanship and material defects, this product is built to last when used and maintained properly. -
Page 4: Set-Up Instructions
SET-UP INSTRUCTIONS Now that you have your new Kurt Vise, it’s time to set-up and begin using it. Your Kurt vise comes with a swivel handle in the shipping carton (instruction manual available online at www.kurtworkholding.com). The handle is specifically designed to provide maximum torque to your vise (clamping force provided below). - Page 5 HYDRAULIC OPERATING INSTRUCTIONS The DX8H can be operated hydraulically by hooking up the Kurt 8" Hydraulic Unit with a typical hydraulic pump or an air over hydraulic pump. Kurt offers several solutions for hydraulic pumps, one being the KHP3 air over hydraulic pump.
- Page 6 HYDRAULIC OPERATING INSTRUCTIONS Basic Hydraulic Set-Up: NOTE: The following set-up is specifically for the KHP3 pump 1. Remove plastic caps from pressure and release ports on Hydraulic pump. Install 90° fittings. 2. Remove plastic caps from pressure and release ports on hand or foot valve.
-
Page 7: Hydraulic Set-Up
HYDRAULIC SET-UP NOTE: The following set-up is specifically for the KHP3 pump. Purple Airline Fig.3 Blue Airline Black Airline Air Exhaust Fig.4 1/8" NPT Fitting to 1/4" Blue Airline Hydraulic Pressure Shop Air Gauge Input Port 1/4" NPT to 1/4" High Pressure Fitting (#6 Male JIC) for Hydraulic Hosing to... - Page 8 HYDRAULIC SET-UP Fig.5 Less Than 1/4" Jaw Positioning: Once all plumbing is set up, it time to position jaws for hydraulic clamping. 1. Position jaws less than 1/4 inch from the part being clamped as is shown in Fig.5 above. This is done manually by putting the handle onto the hex end and turning the screw until the jaws are in position.
-
Page 9: Operating Instructions
HYDRAULIC OPERATING INSTRUCTIONS Air Pressure Input to Hydraulic Pressure Output for Kurt Hydraulic Pump, KHP3 Fig.6 Flow and Pressure Performance Guides Flow and Pressure Performance Guides KHP3 Fluid Flow Against Pressure KHP3 Fluid Flow Against Pressure 4,000 4,000 Max. Flow 0.68 gpm... - Page 10 4. To properly clamp a part in your Kurt vise, you should place the part in the center of the jaws resting on the ways of the vise. Clamping only on one side or above the movable and stationary jaws, can result in jaw lift or loss of accuracy.
- Page 11 Fig.7 Sketch #2A Incorrect part clamping. Vise width centerline Sketch #2B Correct part clamping Sketch #2C Correct part clamping Sketch #2D Correct part clamping Dummy spacer OPERATING INSTRUCTIONS...
- Page 12 JAW POSITIONING Fig.8 Note: Dimensions below are in inches unless specified. 10.63 15.36 17.71 22.44 OPERATING INSTRUCTIONS...
- Page 13 SIDE & END VIEW Fig.9 Note: Dimensions below are in inches unless specified. 1.075 6.000 3.652 2.200 3.310 1.896 3.38 21.87 2.17 8.000 4.750 1.220 8.930 OPERATING INSTRUCTIONS...
- Page 14 MOUNTING LOCATIONS Note: Dimensions below are in inches unless specified. Fig.10 0.385 3.000 3.866 100 mm 8.000 6.000 250 mm 160 mm 16 mm 0.625 1.072 DX8-1-CA 2.15 20 mm 280 mm 2.29 2.31 GG Hex OPERATING INSTRUCTIONS...
- Page 15 SURFACE MOUNT USING SINE KEYS Mounting the new DX8H with keys requires the use of sine keys instead of standard keys. They are available in several different sizes that are listed on our website at www.kurtworkholding.com. The keys are sold in sets of 2 per package.
-
Page 16: Dx8H Parts List
00-1481 SHCS 5/8-11 X 1.25 LG 01-3953 HDOG SHSS 5/8-11 X 1.25 LG 07-0230 U-TYPE DRIVE SCREW #2 X 1/4 L KHU8 KURT HYDRAULIC UNIT 8" *Chip guard not included – available as an accessory at www.kurtworkholding.com. DX8H PARTS LIST... -
Page 17: Dx8H Mechanical Drawing
DX8H MECHANICAL DRAWING Fig.12 *Chip guard not included – available as an accessory at www.kurtworkholding.com. DX8H MECHANICAL DRAWING... -
Page 18: Dx8Hr Parts List
DX8HR PARTS LIST ITEM# PART# DESCRIPTION QTY. DX8-1 BODY, MACHINED DX8-2 MOVABLE JAW DX6R-3 NUT, MACHINED REVERSED 3810H-5 SCREW D80-7 JAW PLATE 3800V-8 RETAINING NUT D80-9 SEGMENT TAB 3800V-99 O-RING, #121 3800V-128 O-RING #022 DX8-169 WAVESPRING PT800-211 BRUSH SEAL 00-1197 SHCS 8-32 X 0.75 LG 00-1481 SHCS 5/8-11 X 1.25 LG... -
Page 19: Dx8Hr Mechanical Drawing
DX8HR MECHANICAL DRAWING Fig.13 DX8HR MECHANICAL DRAWING... -
Page 20: Khu8 Mechanical Drawing
KHU8 MECHANICAL DRAWING Fig.12 ITEM# PART# DESCRIPTION QTY. KHU8-P KURT HYDRAULIC UNIT 8" D80-42 THRUST WASHER D80-41 THRUST BEARING 8BHU-230 WASHER 8BHU-87 COMPRESSION SPRING 2404-04-02 FITTING, 4MJ - 2MP PCFBR-02 1/8" NPT BREATHER KHU8 MECHANICAL DRAWING... -
Page 21: Maintenance Schedule
MAINTENANCE SCHEDULE It is very important to perform regular maintenance on your Kurt vise to ensure proper operation. Improper maintenance will result in poor vise performance and may void your warranty. Daily/ Weekly 1. Remove chips from surface of vise. - Page 22 7. Tip the jaw so the front of the jaw (the side with the jaw plate) is on the vise bed. Lower the jaw on to the bed so that the segment contacts the hook part of the nut and rest the jaw on to the vise bed. 8.
-
Page 23: Hydraulic Unit Replacement Instructions
3. Install 2 SHCS removed in Step 1 opposite one another, threading them approximately halfway in. Using the two SCHS as a sort of handle (or use Kurt Spanner Wrench P/N: DL640-307A-SA), loosen the second (larger) portion of the retaining nut. You should notice a washer and spring coming out of the end of the hydraulic unit. - Page 24 3. Continue to do so until the washer is slightly recessed inside the hydraulic unit. This is crucial, otherwise the spring will keep the hydraulic unit from completely bottoming out in the vise body counter bore. (See Fig.19) Fig.19 0.015 4.
-
Page 25: Troubleshooting Tips
5 though 7. TROUBLESHOOTING TIPS If properly maintained, the Kurt DX8 Series vise will operate trouble free for many years. In some cases it will be necessary to troubleshoot. Use the information below to help in the process. -
Page 26: Maintenance Log/Notes
MAINTENANCE LOG/NOTES: MAINTENANCE LOG/NOTES... -
Page 27: Warranty
The sole obligation of Kurt Manufacturing Company, Inc. (Kurt) and the purchaser’s SOLE AND EXCLUSIVE REMEDY hereunder, shall be limited to the replacement or repair of any Kurt product or part (by an authorized Kurt technician) which are returned to Kurt Manufacturing Company’s place of business or any authorized service... - Page 28 If you have any feedback or questions please contact us: Kurt Industrial Products // A Division Of Kurt Manufacturing 9445 East River Road NW | Mpls, MN 55433 Phone 763-574-8309 | Toll Free 877-226-7823 Fax 763-574-8318 | Toll Free Fax 877-226-7823 Manual Revision: kurtworkholding.com | workholding@kurt.com...
