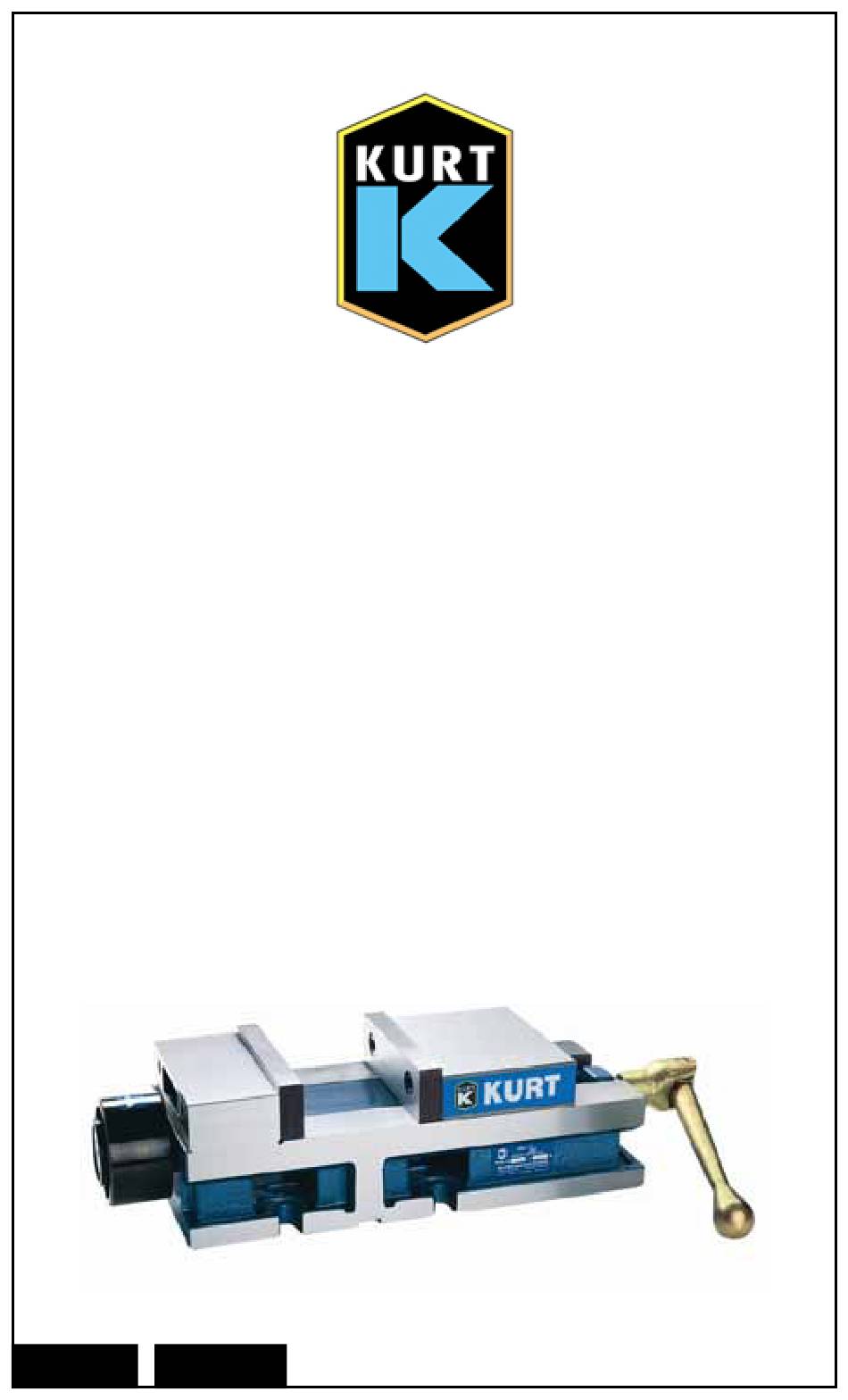

- Page 1 3600H-Series Vise “Hydraulic” Base Assembly 3600H - Forward 3610H - Reverse 3620H - Forward, Short 3630H - Reverse, Short Operating Instructions Manual Manual de instrucciones de operación ENGLISH ESPAÑOL...
-
Page 2: Table Of Contents
Table of Contents Introduction .........................3 Setup Instructions ......................4 Operating Instructions ..................5-7 3600H Parts List......................8 3600H Mechanical Drawing ...................9 3610H Parts List......................10 3610H Mechanical Drawing ................11 3620H Parts List......................12 3620H Mechanical Drawing ................13 3630H Parts List......................14 3630H Mechanical Drawing ................ -
Page 3: Introduction
Introduction Thank you for purchasing a Kurt vise. You have just purchased one of the best machine vises in the industry. The Versatile Lock 3600-Series AngLock vise has a time proven design. The outstanding accuracy of this product is second to none. Backed by a lifetime warranty, this product will last forever when used and maintained properly. -
Page 4: Setup Instructions
Set-up Instructions Now that you have your new Kurt 3600-Series vise, it’s time to set- up and begin using it. You will see that your new vise comes with a Kurt swivel handle, two chip guards (short & long) and an instruction manual along with the O-ring installation guide supplied in the shipping carton. -
Page 5: Operating Instructions
If you need more clamping force you may need to upgrade the vise to a larger one. To properly clamp a part in your Kurt vise you should place the part in the center of the jaws resting on the ways of the vise. Clamping only on one side or above the movable and stationary jaws can result in jaw lift or loss of accuracy. - Page 6 Fig.1 Sketch #2A Incorrect part clamping. Vise width centerline Sketch #2B Correct part clamping. Sketch #2C Correct part clamping. Sketch #2D Correct part clamping. Non- machined spacer ENGLISH | Operating Instructions...
- Page 7 Proper O-Ring installation and usage Most jobs require a tight contact between the workpiece and the parallels (see above). This option offered by Kurt Manufacturing Company is ideal for that. The O-Ring installation will provide for the movement needed when working with parallels.
-
Page 8: 3600H Parts List
3600H Parts List ITEM# PART # DESCRIPTION QTY. 3600V-1 Body 3600V-2 Movable Jaw 3600V-3 3600V-224B Screw Support 360HU-5 Screw (STD Hydraulic) 3600V-211 Internal Brush Seal D60-7 Jaw Plate 3600V-8-P Retaining Nut, Two Piece D60-9 Segment D60I-10-SA Handle Assembly 3600V-11A Socket Set Screw, 1/2-13 Jan-78 Screw, SHSS, 1/4-20 x 3/4 3600V-128... -
Page 9: 3600H Mechanical Drawing
3600H Mechanical Drawing | ENLGISH 3600H Mechanical Drawing... -
Page 10: 3610H Parts List
3610H Parts List ITEM# PART # DESCRIPTION QTY. 3600V-1 Body, Machined, Versalock 3600V-2 Movable Jaw 3600V-3 361HU-5 Screw (Reverse Hydraulic) 3600V-211 Internal Brush Seal D60-7 Jaw Plate, Purchased 3600V-8-P Retaining Nut, Two Piece D60-9 Segment D50-10A-SA Handle Assembly 3600V-11A Socket Set Screw, 1/2-13 Jan-78 Screw, SHSS, 1/4-20 x 3/4 3600V-128... -
Page 11: 3610H Mechanical Drawing
3610H Mechanical Drawing | ENLGISH 3610H Mechanical Drawing... -
Page 12: 3620H Parts List
3620H Parts List ITEM# PART # DESCRIPTION QTY. 3620V-1 Body (SHORT) 3600V-2 Movable Jaw 3600V-3 3600V-224B Screw Support 362AU-5 Screw 3600V-211 Internal Brush Seal D60-7 Jaw Plate 3600V-8-P Retaining Nut, Two Piece D60-9 Segment D60I-10-SA Handle Assembly 3600V-11A Socket Set Screw, 1/2-13 Jan-78 Screw, SHSS, 1/4-20 x 3/4 3600V-128... -
Page 13: 3620H Mechanical Drawing
3620H Mechanical Drawing | ENLGISH 3620H Mechanical Drawing... -
Page 14: 3630H Parts List
3630A Parts List ITEM# PART # DESCRIPTION QTY. 3620V-1 Body (SHORT), Machined 3600V-2-SA Movable Jaw Assebly 3610V-3 363HU-5 Screw (SHT. REV. HYD.) 3600V-211 Internal Brush Seal D60-7 Jaw Plate 3600V-8-P Retaining Nut, Two Piece D60-9 Segment D50-10A-SA Handle Assembly 3600V-11A Socket Set Screw, 1/2-13 Jan-78 Screw, SHSS, 1/4-20 x 3/4... -
Page 15: 3630H Mechanical Drawing
3630A Mechanical Drawing | ENLGISH 3630H Mechanical Drawing... -
Page 16: 36Bhu Parts List
36BHU Parts List ITEM# PART # DESCRIPTION QTY. Cylinder House Piston Retainer PTH600-96 O-Ring, 2-230 360HU-98 O-Ring, 2-121 Thrust Bearing Retaining Ring Retaining Ring PTH600-188 Backer Ring 360HU-187 Backer Ring Thrust Bearing Washer 360HU-230 Washer 360HU-87A Spring NOTE: 36BHU-P is purchased as a unit. Items 4-5, 9-10 and 12-13 can be purchased as replacement items. -
Page 17: 36Bhu Mechanical Drawing
36BHU Mechanical Drawing | ENLGISH 36BHU Mechanical Drawing... -
Page 18: Hydraulic Intensifier Set-Up
Hydraulic Intensifier Set-up The 3600H Series Hydraulic vises use the APD50-112 Hydraulic Intensifier. 1. Remove plastic caps from pressure and release ports on Hydraulic Intensifier. Install 90° fittings. 2. Remove plastic caps from pressure and release ports on hand or foot valve. - Page 19 Fig.2 Resevoir From Release From Pressure Release to intensifier Fig.3 Air inlet from FLR Pressure to intensifier Pressure to intensifier Fig.4 Release to intensifier Exhaust Air inlet from FLR | ENLGISH Hydraulic Intensifier Set-Up...
-
Page 20: Maintenance Schedule
Maintenance Schedule It is very important to perform regularly maintenance on your Kurt vise to assure proper operation. Improper maintenance will result in poor vise performance and may void your warranty. Daily/ Weekly 1. Remove chips from surface of vise.
