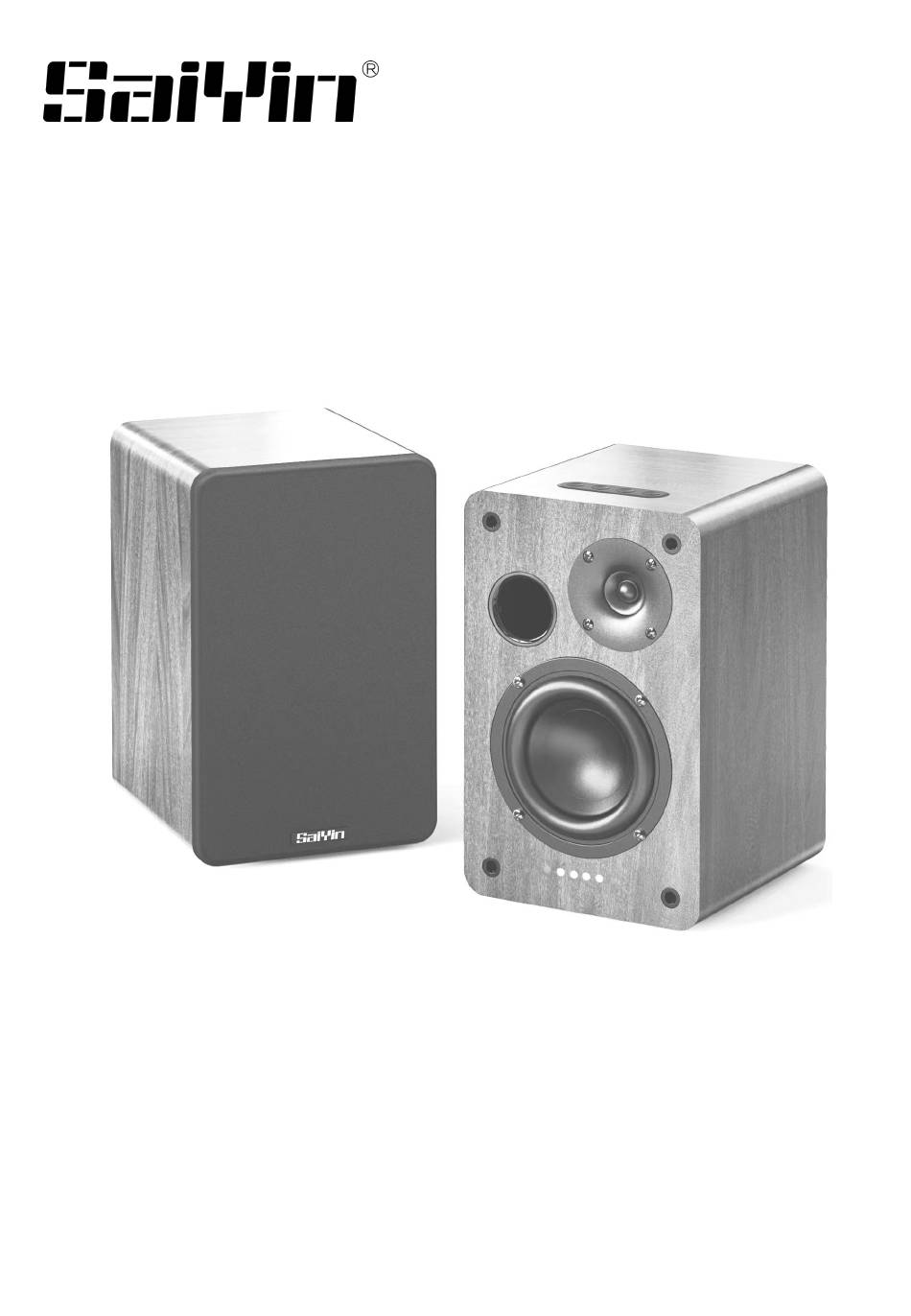

- Page 1 E N - 1 by Sine Audio Powered Bookshelf Speakers 5-Inch / 4-Inch / 3.5-Inch 2.0 Channel Stereo DS 6 8 0 1 | DS 6 8 0 1 S | DS 6 7 0 1 | DS 6 7 0 1 S User Manual E-mail:support@sineaudio.com.cn...
-
Page 2: Important Notes
E N - 2 > Important Notes In order to reduce the bottom noise at low volume, please do not minimize the volume of the audio source, it is recommended that the volume of the audio source is greater than 50%, and then turn down the volume by adjusting the speakers. Recommended to use optical cable to connect with your TV, Bluetooth connection may cause audio delay. -
Page 3: Fcc Information
E N - 3 you on how to return the defective unit back to us for repair or replacement. The following are excluded from the Sine Audio warranty coverage: Product over warranty. Damage resulted from misuse and abusive action. Damage resulted from chemical, fire, radioactive substance, and poison, liquid. -
Page 4: Package Contents
E N - 4 > Package Contents 1 X Bookshelf speakers - pair Accessories: 1 X Power adapter 1 X Speaker wire cable 1 X Optical cable 1 X 3.5mm RCA audio cable 1 X User manual 1 X Remote control Note: Accessories are subject to change without notice. -
Page 5: Subwoofer Out
E N - 5 >> Subwoofer out Frequency Response 25Hz-180Hz(-3dB) Note : SUB output socket is only for the powered subwoofer connection. If the bass is poor, please try to switch polarity subwoofer. DS6701S without subwoofer output socket. < Subwoofer out Frequency Response Curve > In order to reduce the bottom noise at low volume, please do not minimize the volume of the audio source, it is recommended that the volume of the audio source is greater than 50%, and then turn down the volume by adjusting the speakers. -
Page 6: Button Panel
E N - 6 >> Button Panel >>> Press and hold power button 1S to turn on/off. Power Mode Vol - Vol + (Play Pause / Mute) (Source) Power on / off : Press and hold 1S Play Pause / Mute : Short click Press the Mode (Source) button to toggle between the AUX, BT, COAX, OPT sources, The AUX, BT, COAX, OPT source indicator will light up red accordingly. -
Page 7: Connector Panel
E N - 7 >> Source indicators Remote Sensor BT Standby COAX OPT >> Red LED for standby >> Connector Panel 3.5mm AUX input AUX (L/R) RCA input Coaxial input Optical input For optical / Coaxial connection, please change your TV audio output to optical/ Coaxial and change the audio... -
Page 8: Remote Control
E N - 8 >> Remote control Remote sensor Aim the sensor when using the remote Approx. 16.5 feet (5 meters) When there is an obstacle between the remote sensor of the Operation Range bookshelf speakers and the remote control, the remote control may not operate. - Page 9 E N - 9 > Setting Up the System >> Unpacking Remove all packaging，check for the presence of all parts and for transport damage. In case of damage or incomplete delivery, please contact your dealer. Please keep the packaging. The system can be stored in it, if not used for a longer period of time.
-
Page 10: Setting Up The System
E N - 1 0 > Setting Up the System Make sure the power adapter is disconnected from the electrical outlet before making any mounting and connection. During operation, if the cables require to be reconnected, the power adapter must be disconnected first, otherwise damage to the system may result. >>... -
Page 11: Tips For Usage
E N - 1 1 > Using the System >> Using the remote control >>> Inserting / replacing batteries 1. Slide to open the battery compartment cover. 2. Insert 2 X 1.5V AAA batteries (not supplied) into the battery compartment. Match the polarity markings in the battery compartment. - Page 12 E N - 1 2 > Using the System >> Get power and started Make sure all the source connections are made properly before you connect the power adapter. Plug the power adapter to the DC IN socket, then to a suitable electrical outlet. The power indicator lights up red.
-
Page 13: Playback Functions
E N - 1 3 > Using the System >> Basic functions >>> Selecting a source You can have several source devices connected permanently to the speakers. Available sources are: OPT / COAX / BT / AUX Source Function Optical , connection with an optical fiber cable. COAX Coaxial, connection with a coaxial cable(not supplied). -
Page 14: Disconnecting The Bluetooth Device
2. Activate the Bluetooth function of the external device and search for Bluetooth devices. 3. Select the bookshelf speakers (Sine Audio) from the Bluetooth device list. 4. Follow the instructions shown on your device’s screen. 5. When the Bluetooth connection is established, files from your connected Bluetooth device will be played through the bookshelf speakers. -
Page 15: Troubleshooting
E N - 1 5 > Troubleshooting Problem Solution No power Check the power adapter is properly connected to an electrical outlet. Check the DC plug is properly connected to the DC IN socket. Unplug the power adapter for at least one minute and reconnect. No Sound Press the Power button on the speakers or remote control to turn on the bookshelf speakers. - Page 16 Ensure you are using the correct device. If the device is still not connected, try the following: Remove the bookshelf speakers (Sine Audio) from the list of “paired devices” on your phone/tablet. Turn the bookshelf speakers off and then on again.
